Front Drive Halfshafts




Specifications

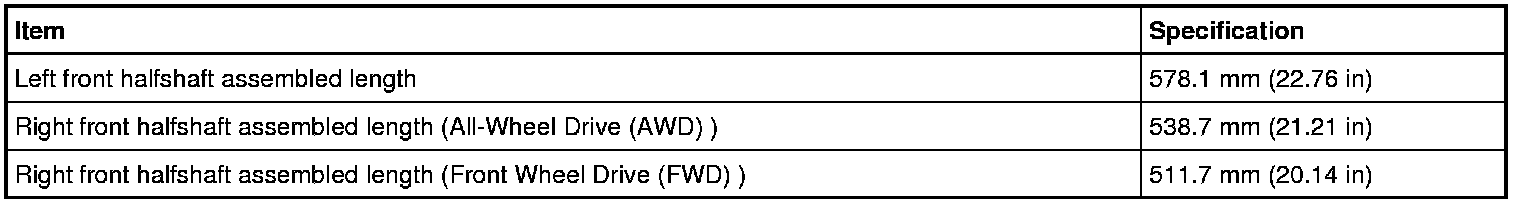

General Specifications

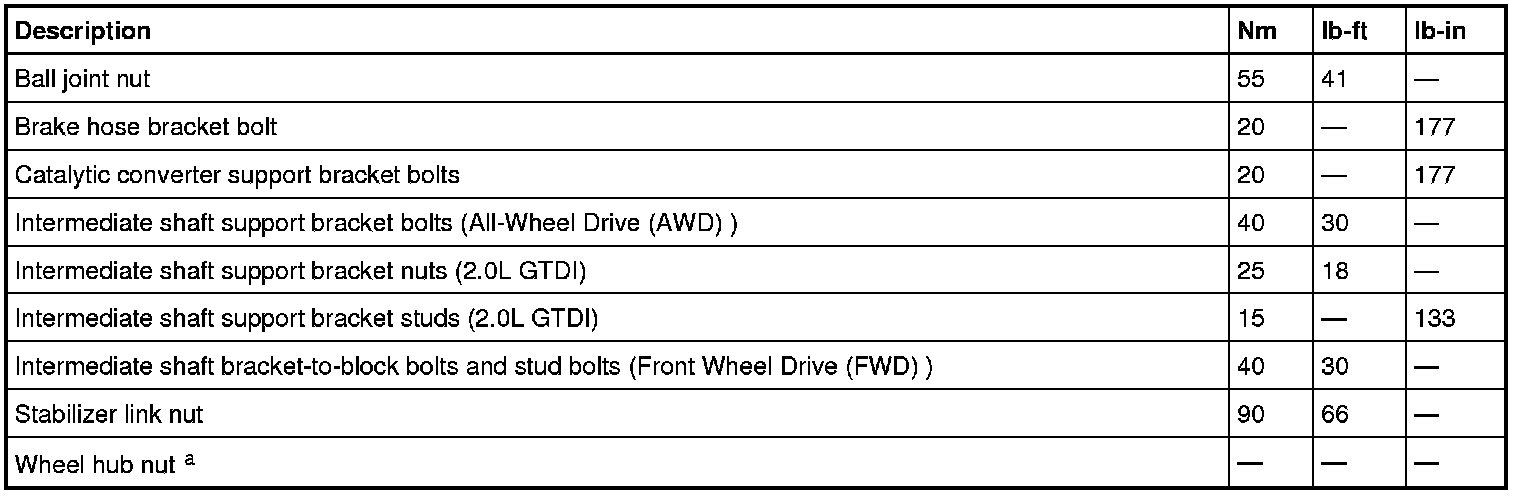

Torque Specifications





a Refer to the procedure in Axle Shaft Assembly.
