Courtesy Lamp: Service and Repair

Puddle Lamp









Removal and Installation

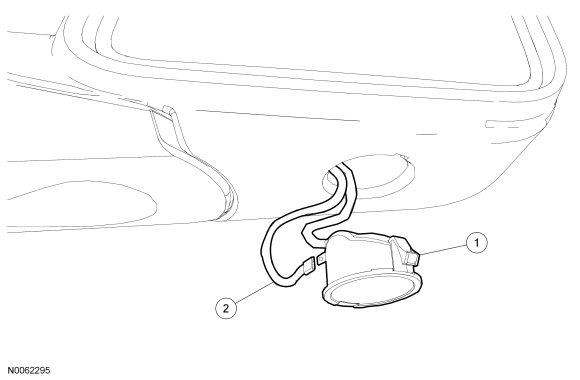

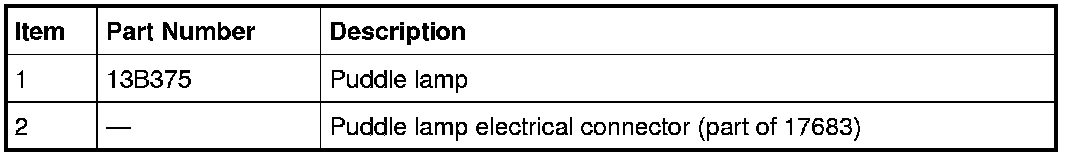

1. Release the tab to remove the puddle lamp from the mirror housing.
- Disconnect the electrical connector.






2. NOTE: An audible click can be heard when the puddle lamp is fully seated.
To install, reverse the removal procedure.
