Front End Accessory Drive (FEAD) - Exploded View

Front End Accessory Drive (FEAD) - Exploded View

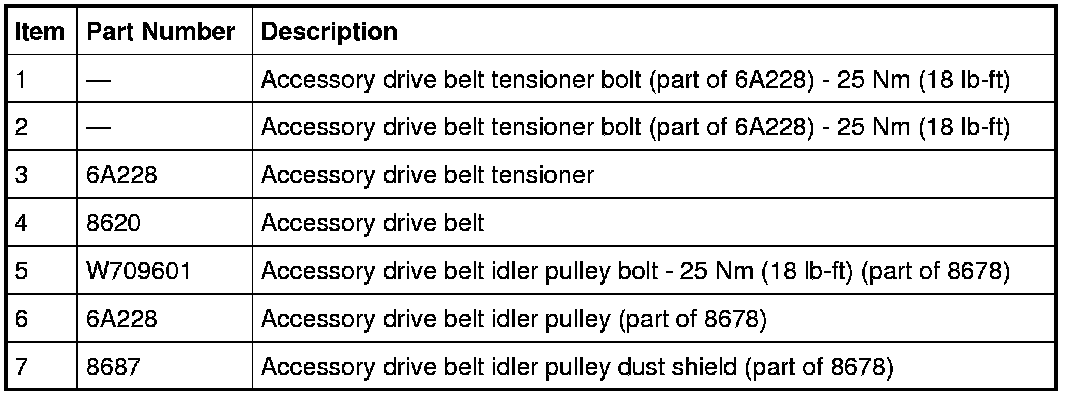

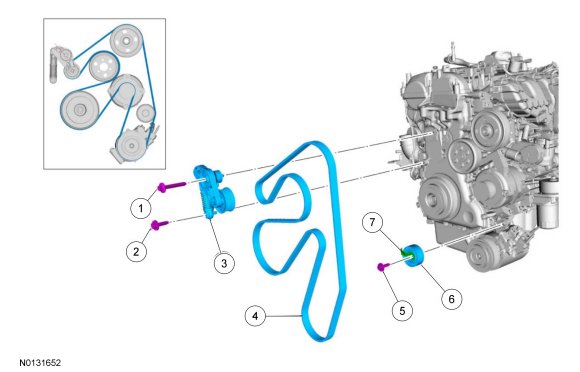

2.0L GTDI (Gasoline Turbocharged Direct Injection)

NOTE: The accessory drive belt is routed behind the accessory drive belt tensioner. It is necessary to remove the accessory drive belt tensioner to remove the accessory drive belt.

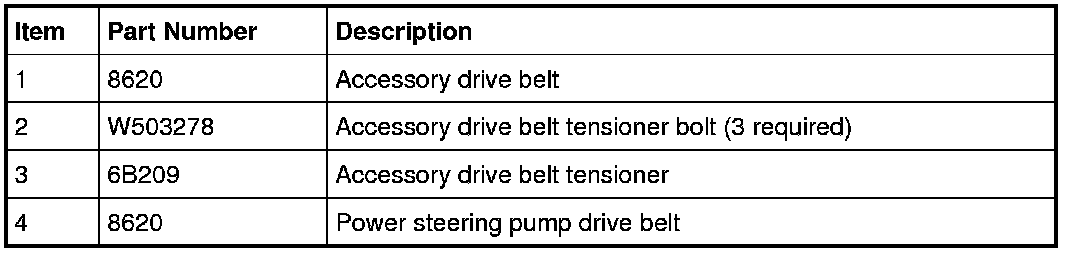

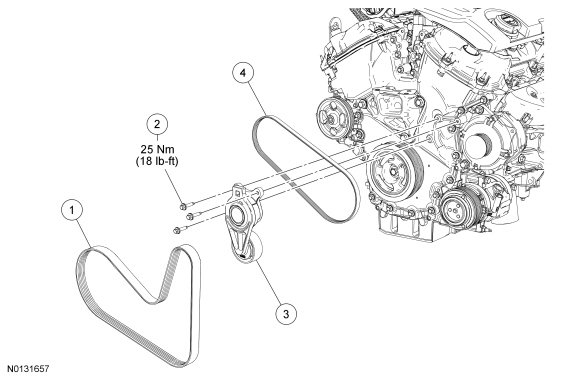

3.5L and 3.7L engines
