Main Control Cover: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Ultra Silicone Sealant TA-29	-

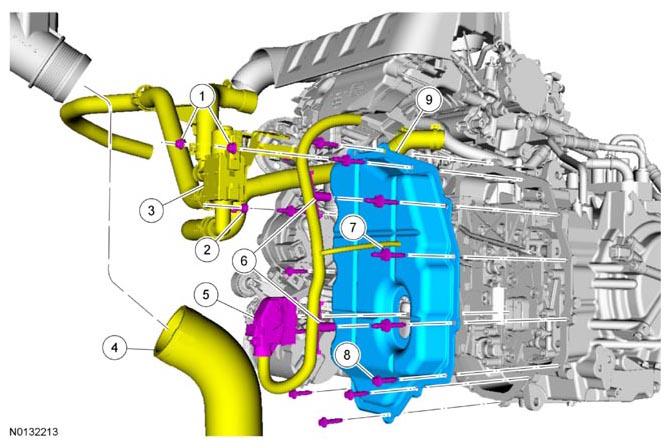

Fig 1: Exploded View Of Main Control Cover Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520101	Transmission fluid temperature control valve nuts
2	6N746	Heater hose retainer
3	18C310	Transmission fluid temperature control valve
4	6K863	CAC hose
5	14B060	Transmission main electrical connector
6	14B060	Vehicle wiring harness retainers
7	W715301	Main control cover studbolts
8	W715202	Main control cover bolts
9	7A264	Main control cover

With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
Remove the ACL assembly. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
Remove the 4 retainers and the underbody shield.

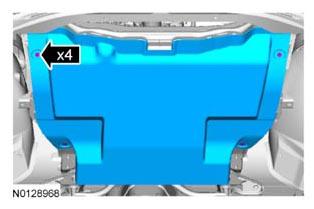

Fig 2: Locating Underbody Shield Retainers
Courtesy of FORD MOTOR CO.
Remove the drain plug and drain the transmission fluid. Install the drain plug.
- Tighten to 12 Nm (106 lb-in).

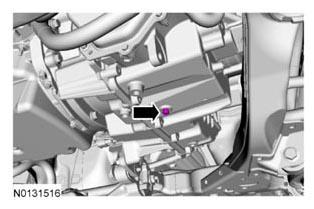

  Fig 3: Locating Drain Plug
  Courtesy of FORD MOTOR CO.
Remove the retainer from the main control cover studbolt and remove the 2 nuts and position aside the transmission fluid temperature control valve.

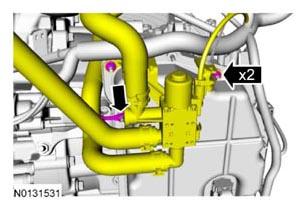

Fig 4: Locating Transmission Fluid Temperature Control Valve Nuts And Retainer
Courtesy of FORD MOTOR CO.
Loosen the clamp and disconnect the CAC outlet tube and position it aside.

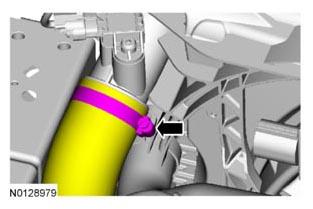

Fig 5: Locating CAC Outlet Tube Clamp
Courtesy of FORD MOTOR CO.
Disconnect the transmission electrical connector, remove the 2 wiring retainers from the main control cover and position aside the transmission wiring harness.

Fig 6: Locating Main Control Cover Wiring Retainers And Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: Note the location of the studbolts for assembly.

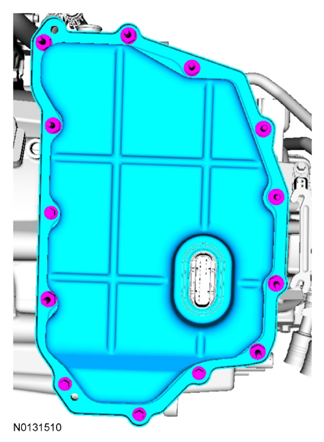

Fig 7: Identifying Main Control Cover Bolts

Courtesy of FORD MOTOR CO.
