Powertrain Control Module (PCM) - 2.0L GTDI: Installation

Install the PCM to the bracket and install the 3 bolts.
- Tighten to 8 Nm (71 lb-in).

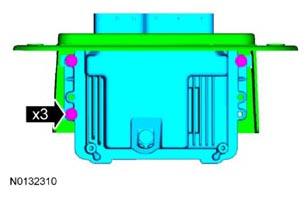

  Fig 1: Locating Bolts On PCM Bracket
  Courtesy of FORD MOTOR CO.
Install the PCM and bracket assembly and the 2 nuts.
- Tighten to 8 Nm (71 lb-in).

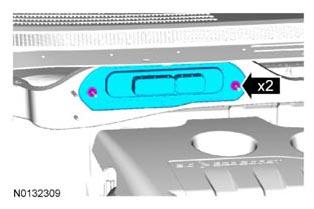

  Fig 2: Locating PCM And Bracket Assembly Nuts
  Courtesy of FORD MOTOR CO.
Connect the 2 PCM electrical connectors.
- Attach the wiring harness retainer to the cowl.

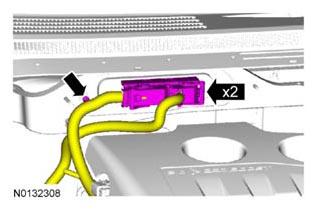

  Fig 3: Locating PCM Electrical Connectors
  Courtesy of FORD MOTOR CO.
Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE CONFIGURATION .
Reprogram the Passive Anti-Theft System (PATS). Carry out the Parameter Reset procedure. For additional information, refer to ANTI-THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS) .
After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
