Hydraulic Control Unit (HCU): Notes
SPECIAL TOOLS DESCRIPTION CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

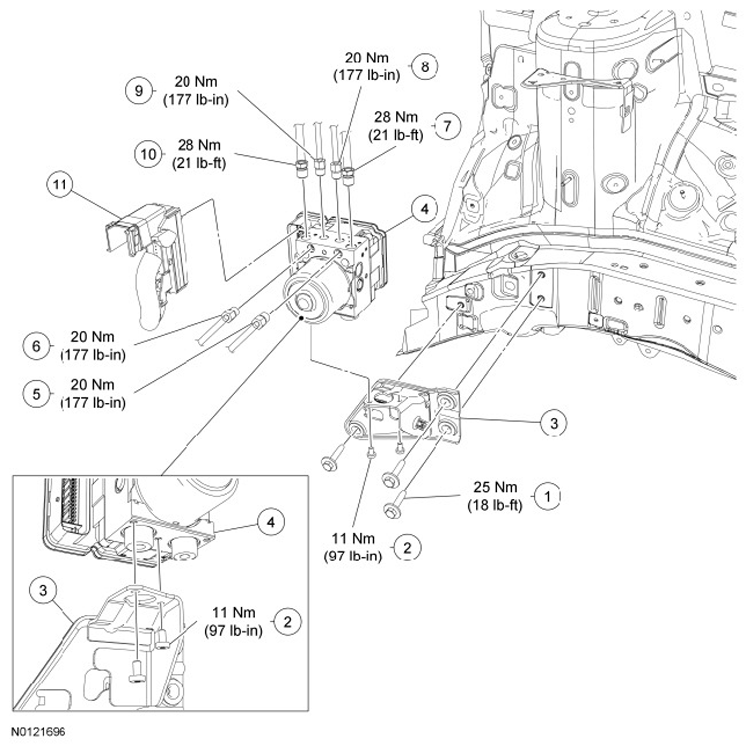

| Item | Part Number | Description |
|---|---|---|
| 1 | W710343 | Hydraulic Control Unit (HCU) bracket-to-frame bolt (3 required) |
| 2 | 2C348 | HCU bracket-to-HCU bolt (2 required) (also part of 2C405) |
| 3 | 2C304 | HCU bracket (also part of 2C405) |
| 4 | 2C405 | HCU (vehicles equipped with adaptive cruise control includes the ABS module) |
| 4 | 2C215 | HCU (vehicles not equipped with adaptive cruise control, ABS module serviced separately) |
| 5 | - | LR brake caliper brake tube fitting (part of 2C296) |
| 6 | - | RR brake caliper brake tube fitting (part of 2C296) |
| 7 | - | Master cylinder right diagonal brake tube fitting (part of 2A335) |
| 8 | - | RF brake caliper brake tube fitting (part of 2263) |
| 9 | - | LF brake caliper brake tube fitting (part of 2264) |
| 10 | - | Master cylinder left diagonal brake tube fitting (part of 2286) |
| 11 | - | ABS module electrical connector (part of 14K012) |
