Front Engine View

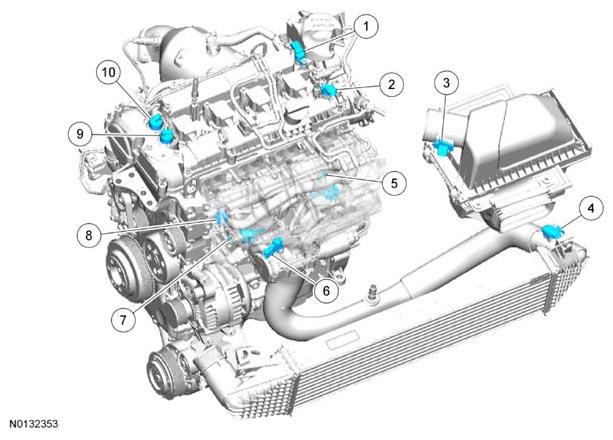

Fig 1: Identifying Engine Components - 2.0L GTDI (Front Engine View)
G07930802Courtesy of FORD MOTOR CO.
Item Part Number Description
1 12K073 Exhaust Camshaft Position (CMP) sensor
2 12K073 Intake Camshaft Position (CMP) sensor
3 12B579 Intake Air Temperature (IAT) sensor
4 9F479 Manifold Absolute Pressure and Temperature (MAPT)
5 12A699 LH Knock Sensor (KS)
6 9F479 Manifold Absolute Pressure (MAP) sensor
7 9F972 Fuel Rail Pressure (FRP) sensor
8 12A699 RH Knock Sensor (KS)
9 6M280 Intake Variable Camshaft Timing (VCT) oil control solenoid
10 6M280 Exhaust Variable Camshaft Timing (VCT) oil control solenoid
