Tie Rod - Inner: Notes
NOTE:

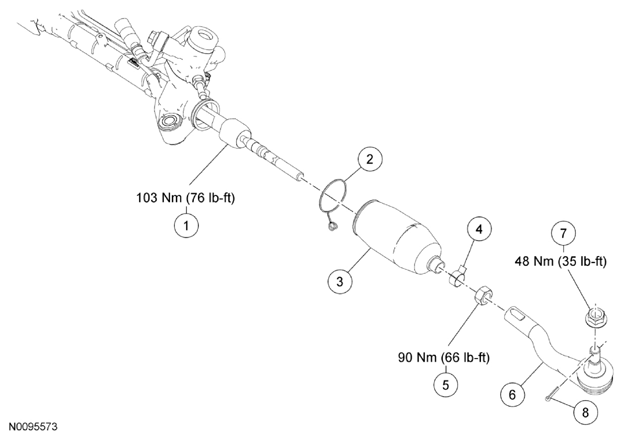

Left side shown in illustration, right side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3280 | Inner tie rod |
| 2 | 3C650C | Inner bellows boot clamp |
| 3 | 3K661 | Bellows boot |
| 4 | 3C650 | Outer bellows boot clamp |
| 5 | - | Tie-rod jam nut |
| 6 | 3A130 | Outer tie-rod end |
| 7 | 6E5C | Outer tie-rod end nut |
| 8 | 3K176 | Cotter pin |
