Steering Column Shaft: Notes
NOTE:
Do not allow the steering column to rotate while the steering column shaft is disconnected, or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring. For additional information, refer to
SUPPLEMENTAL RESTRAINT SYSTEM
.
NOTE:
The steering column and steering column shaft are serviced as an assembly on vehicles equipped with a manual steering column. For additional information, refer to Steering Column in this service information.

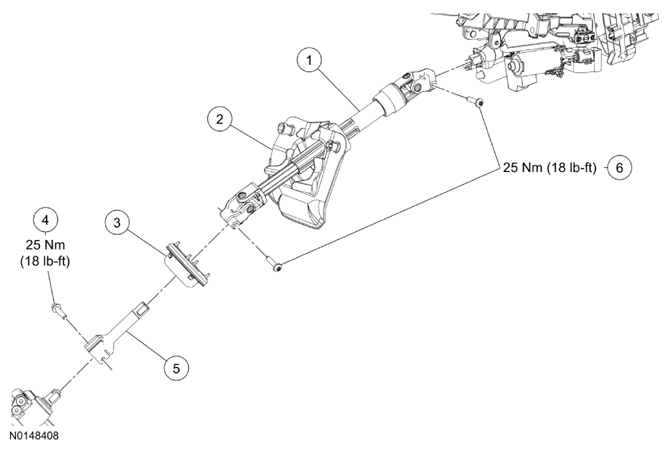

| Item | Part Number | Description |
|---|---|---|
| 1 | 3B676 | Steering column shaft |
| 2 | 3C611 | Steering column shaft joint cover |
| 3 | 3D677 | Steering column shaft dash seal |
| 4 | W712961 | Steering gear extension shaft-to-steering gear bolt |
| 5 | - | Steering gear extension shaft |
| 6 | W714878 | Steering column shaft bolts (2 required) |
