External Controls: 6F50/6F55

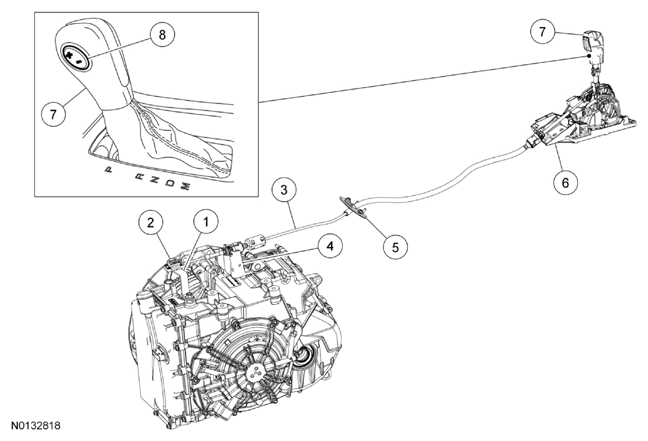

Fig 1: Identifying Automatic Transaxle/Transmission External Controls Components - 6F50/6F55
G07932658Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7A257 Manual control lever
2 - Adjuster locking tab (part of 7E395)
3 7E395 Selector lever cable
4 7B229 Selector lever cable bracket
5 - Selector lever cable grommet (part of 7E395)
6 7210 Selector lever assembly
7 7213 Selector lever knob
8 - SelectShift™ switch (part of 7213)
