Gear Availability

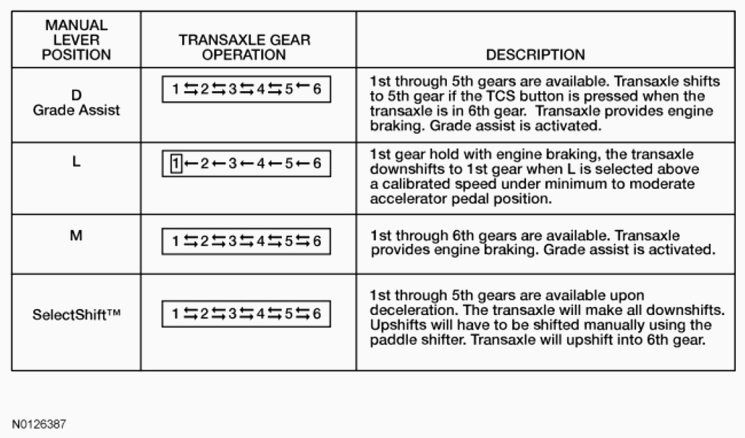

Fig 1: Transaxle Gear Operation Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
