Selector Lever - Paddle Shift

  1. Remove the driver air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
    2. NOTE: Rotate the steering wheel to access the top 2 screws.
    Fig 1: Locating Steering Wheel Switch Trim Bezel Screws
    G07402174Courtesy of FORD MOTOR CO.
  2. Remove the 3 steering wheel switch trim bezel screws.
  3. Disconnect the steering wheel switch electrical connectors.
  4. Remove the steering wheel switch trim.

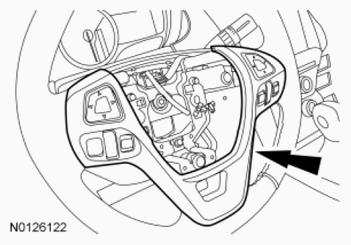

    Fig 2: Locating Steering Wheel Switch Trim
    G07402175Courtesy of FORD MOTOR CO.
    5. NOTE: RH side shown in illustration, LH side similar.
  5. Remove the paddle shifter.
    1. Disconnect the paddle shifter.
    2. Remove the 2 bolts and the paddle shifter.
      • To install, tighten to 5 Nm (44 lb-in).

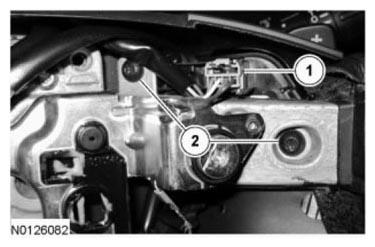

        Fig 3: Identifying Paddle Shifter And Bolts
        G07402176Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
