Power Transfer Unit (PTU)

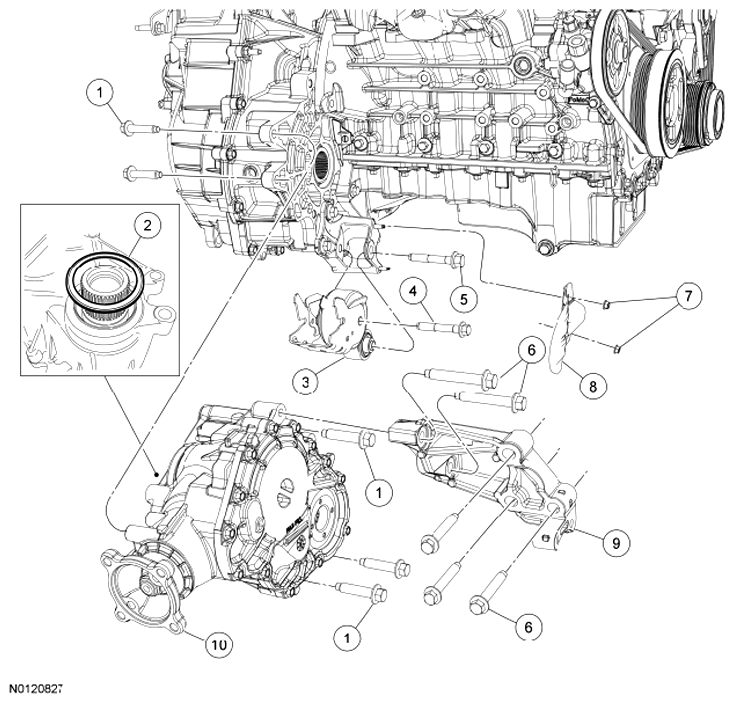

Fig 1: Exploded View Of Power Transfer Unit
G07402249Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500741 PTU-to-transaxle bolt (5 required)
2 7086 Compression seal
3 6068 Roll restrictor assembly
4 W711843 Roll restrictor through bolt
5 W706674 Roll restrictor through bolt
6 W500724 Power Transfer Unit (PTU)-to-support bracket bolt (5 required)
7 W700101 Roll restrictor shield nut (2 required)
8 6C038 Roll restrictor shield
9 7A444 PTU support bracket
10 7251 PTU
    NOTE: A new compression seal must be installed whenever the Power Transfer Unit (PTU) is removed from the vehicle.
    Fig 2: Locating Compression Seal
    G06064426Courtesy of FORD MOTOR CO.
  1. Using a suitable tool, install the new compression seal.
  2. NOTE: A new PTU intermediate shaft seal must be installed whenever the intermediate shaft or PTU is removed from the vehicle.
  3. Using a suitable pry bar, move the engine forward. Install a block of wood to hold the engine in the forward position. Install the PTU with the output flange facing the passenger side, filler plug facing upward. Rotate the PTU to the transaxle. Install the 5 PTU-to-transaxle bolts.
    • Tighten to 90 Nm (66 lb-ft).
      Fig 3: Installing Block Of Wood To Hold Engine In Forward Position
      G06503426Courtesy of FORD MOTOR CO.
  4. Position the PTU support bracket into place and hand-tighten the 5 PTU support bracket bolts.
    1. Tighten the bolts to the transaxle to 70 Nm (52 lb-ft).
    2. Tighten the bolts to the engine to 70 Nm (52 lb-ft).

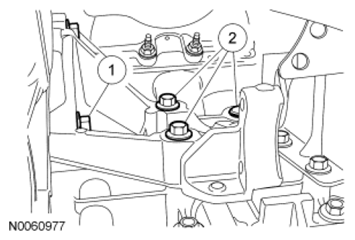

      Fig 4: Identifying PTU Support Bracket Bolts Tightening Sequence
      G06503427Courtesy of FORD MOTOR CO.
  5. Install the roll restrictor and the 2 roll restrictor through bolts.
    • Tighten to 115 Nm (85 lb-ft).

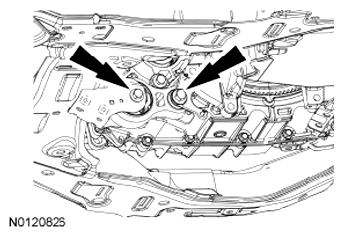

      Fig 5: Locating Roll Restrictor Through Bolts
      G07402252Courtesy of FORD MOTOR CO.
  6. Install the roll restrictor shield and the 2 roll restrictor shield nuts.
    • Tighten to 9 Nm (80 lb-in).

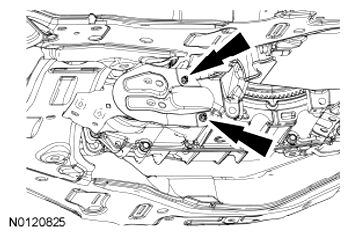

      Fig 6: Locating Roll Restrictor Shield Nuts
      G07402251Courtesy of FORD MOTOR CO.
  7. Install the exhaust flexible pipe and RH catalytic converter. For additional information, refer to EXHAUST SYSTEM .
  8. Install the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
  9. Line up the index marks on the driveshaft to the index marks on the PTU flange made during removal and install the 4 bolts.
    • Tighten to 70 Nm (52 lb-ft).

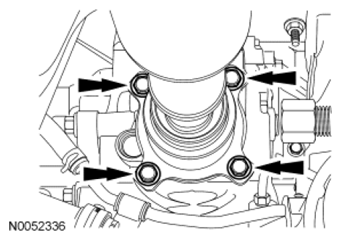

      Fig 7: Locating Driveshaft Bolts
      G06505095Courtesy of FORD MOTOR CO.
  10. NOTE: Clean the area around the filler plug before removing.
    Fig 8: Locating PTU Filler Plug
    G06064372Courtesy of FORD MOTOR CO.
  11. Remove and discard the filler plug.
  12. Fill the PTU, if necessary. The fluid must be even with the bottom of the fill opening.
  13. Install a new filler plug.
    • Tighten to 20 Nm (177 lb-in).
