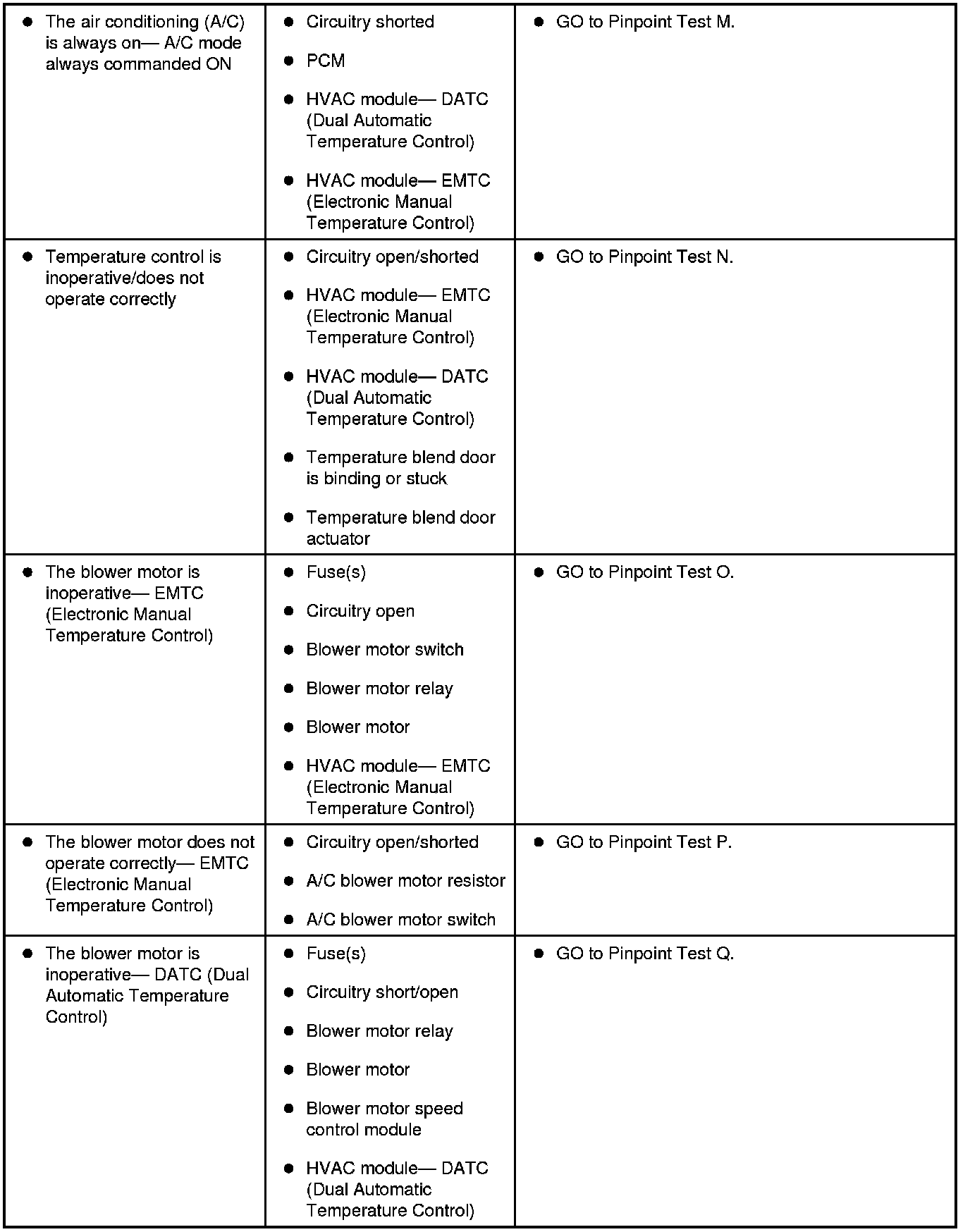

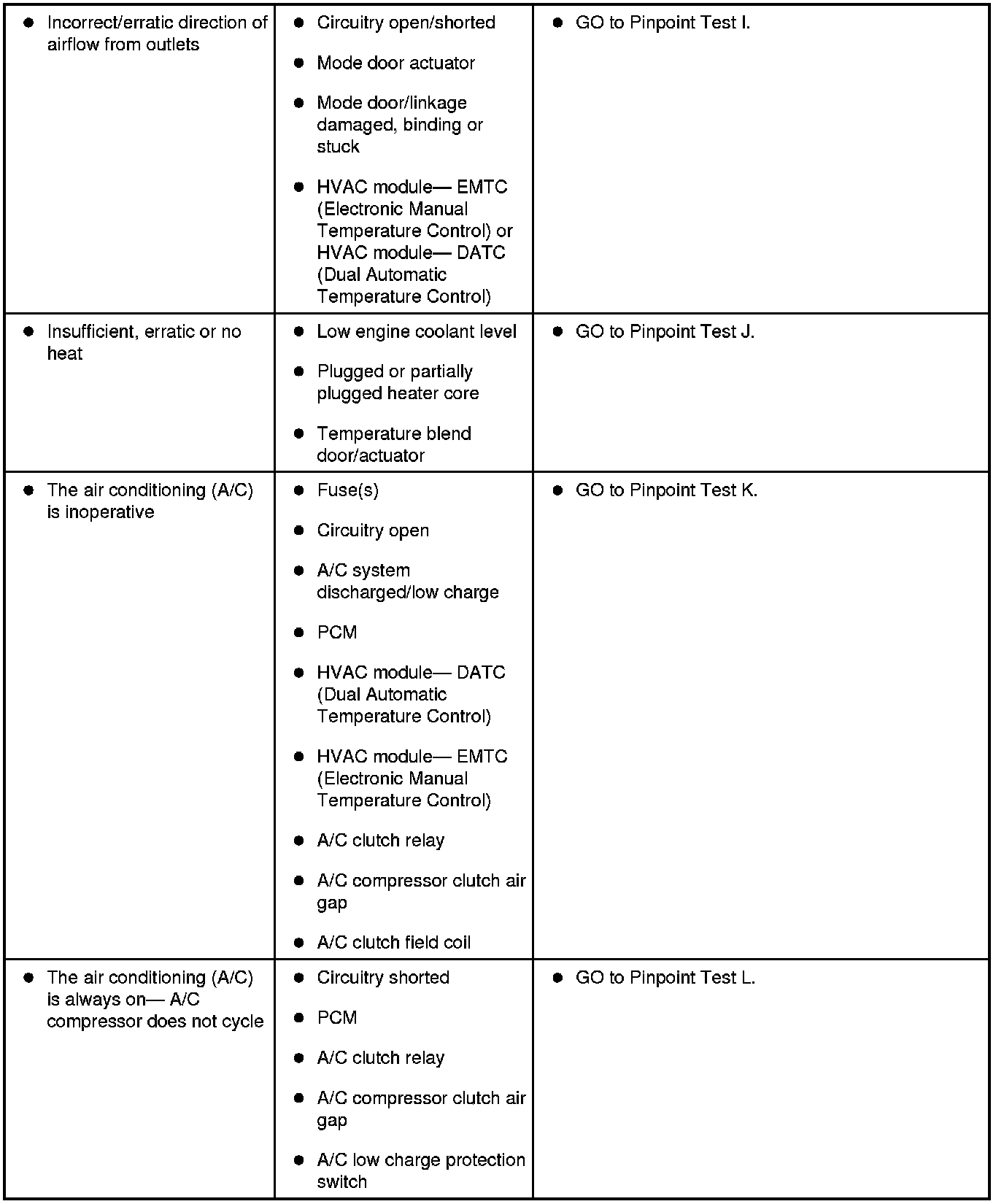

Symptom Chart - Climate Control System
Climate Control System
Symptom Chart - Climate Control System
