Capacity Specifications

Non-Hybrid
Item PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D
Specification WSH-M1C231-B
Fill Capacity Non-Hybrid 148 ml (5 fl oz)

Hybrid
Item Motorcraft(R) Electric A/C Compressor Oil YN-32
Specification -
Fill Capacity 130 ml (4.4 fl oz)

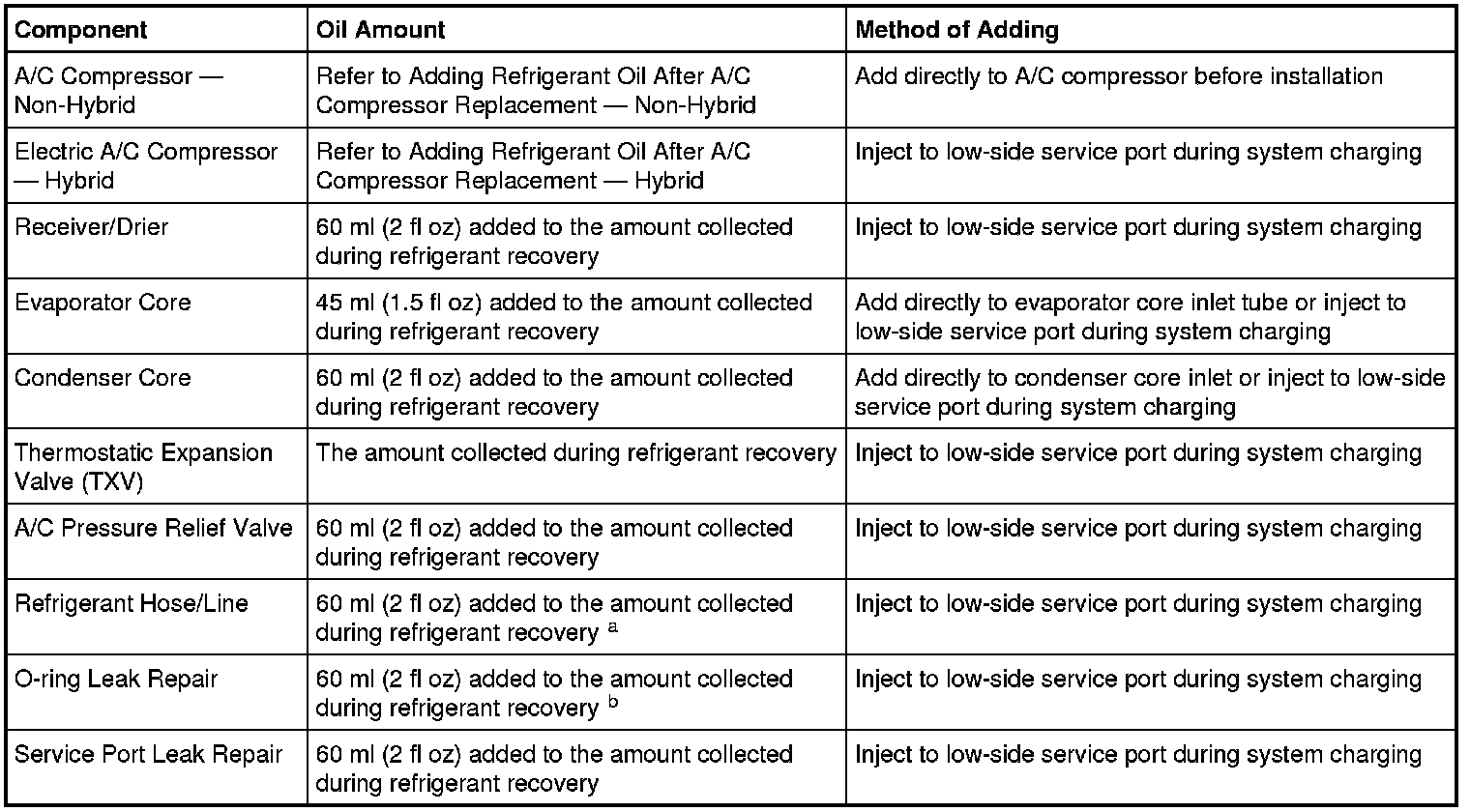

a If an excessive amount of refrigerant oil is lost due to a hose rupture/separation or other damage, the total system refrigerant oil capacity must be added.
b The amount specified may be used for one or multiple O-ring leak repairs. Do not multiply the refrigerant oil amount by the number of O-ring leaks being repaired.
