All Others

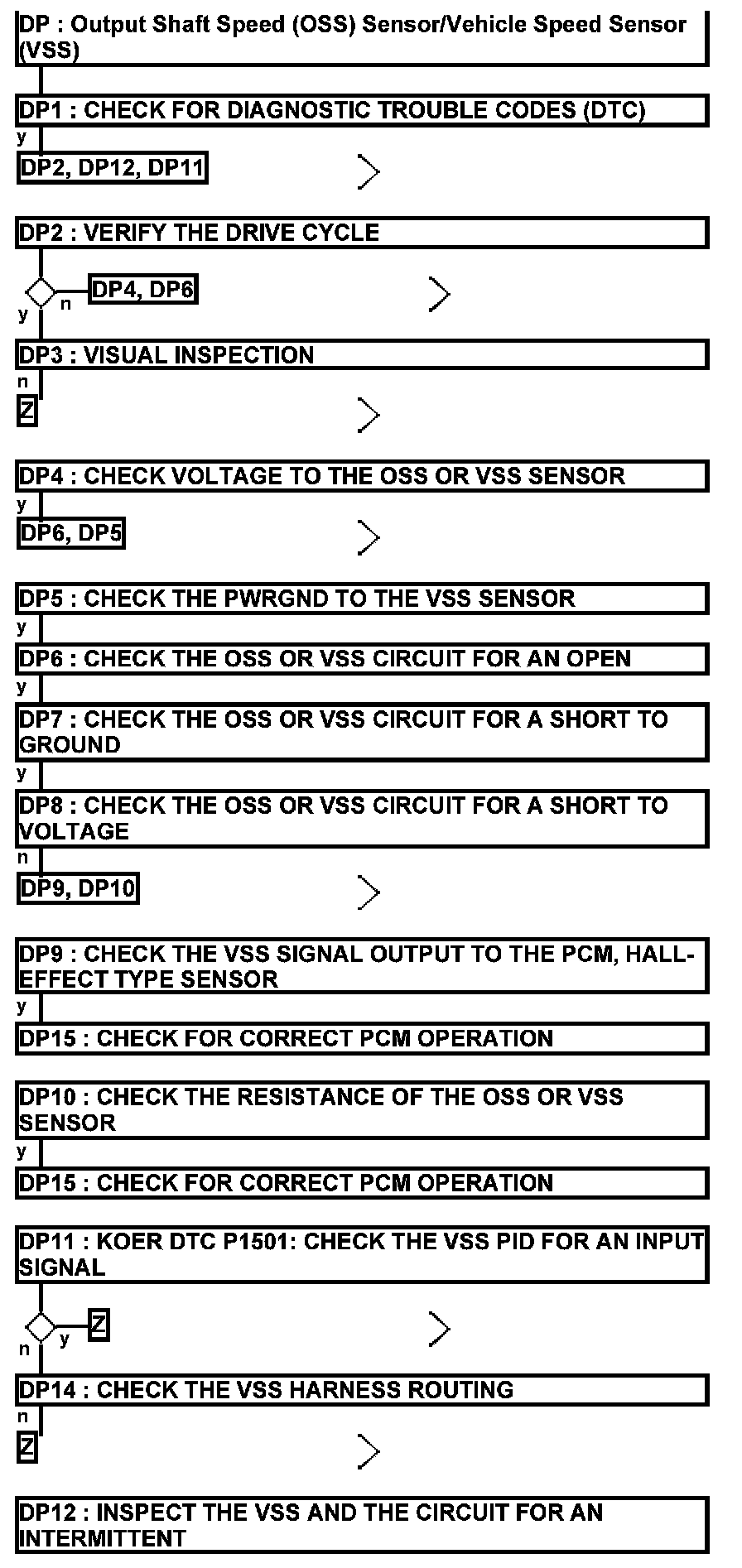

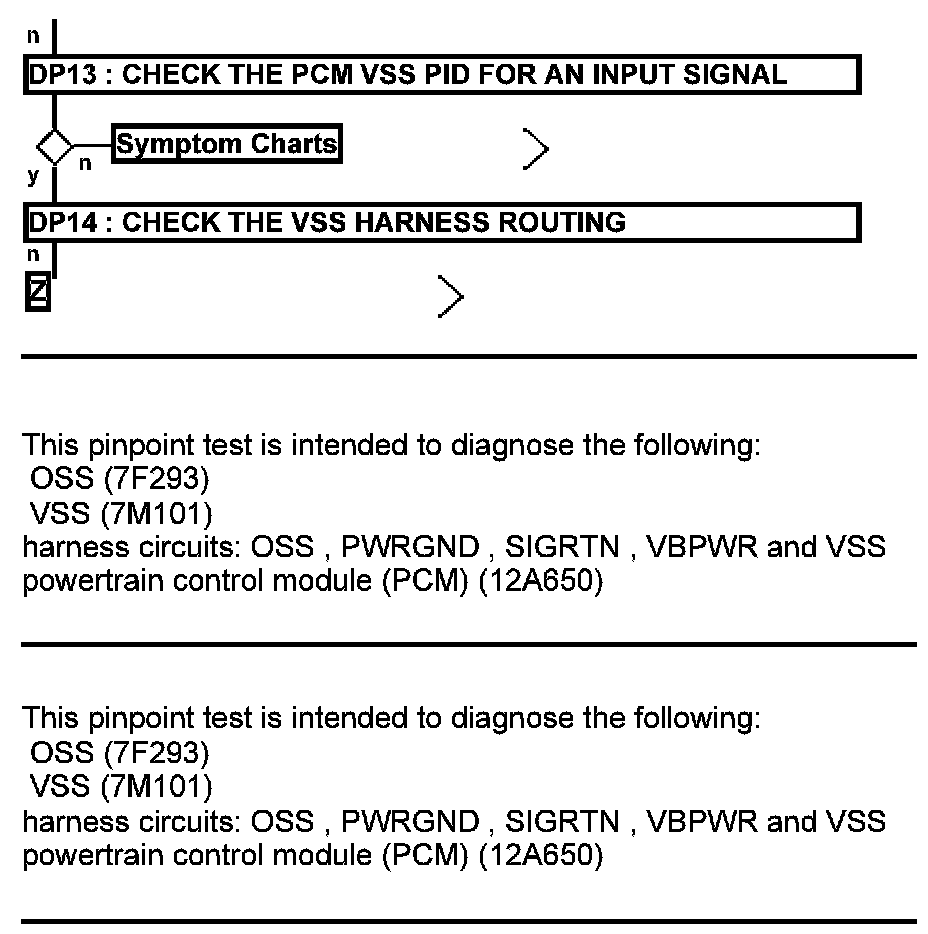

Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS) - All Others

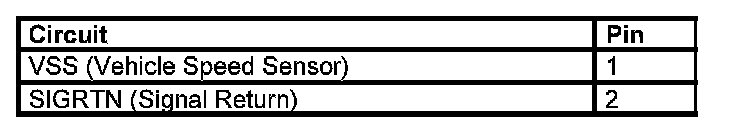

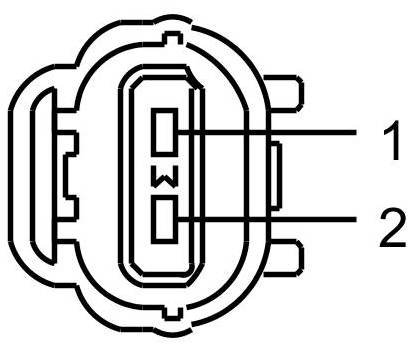

Vehicle Speed Sensor (VSS) Connector





Harness Side
