All Others

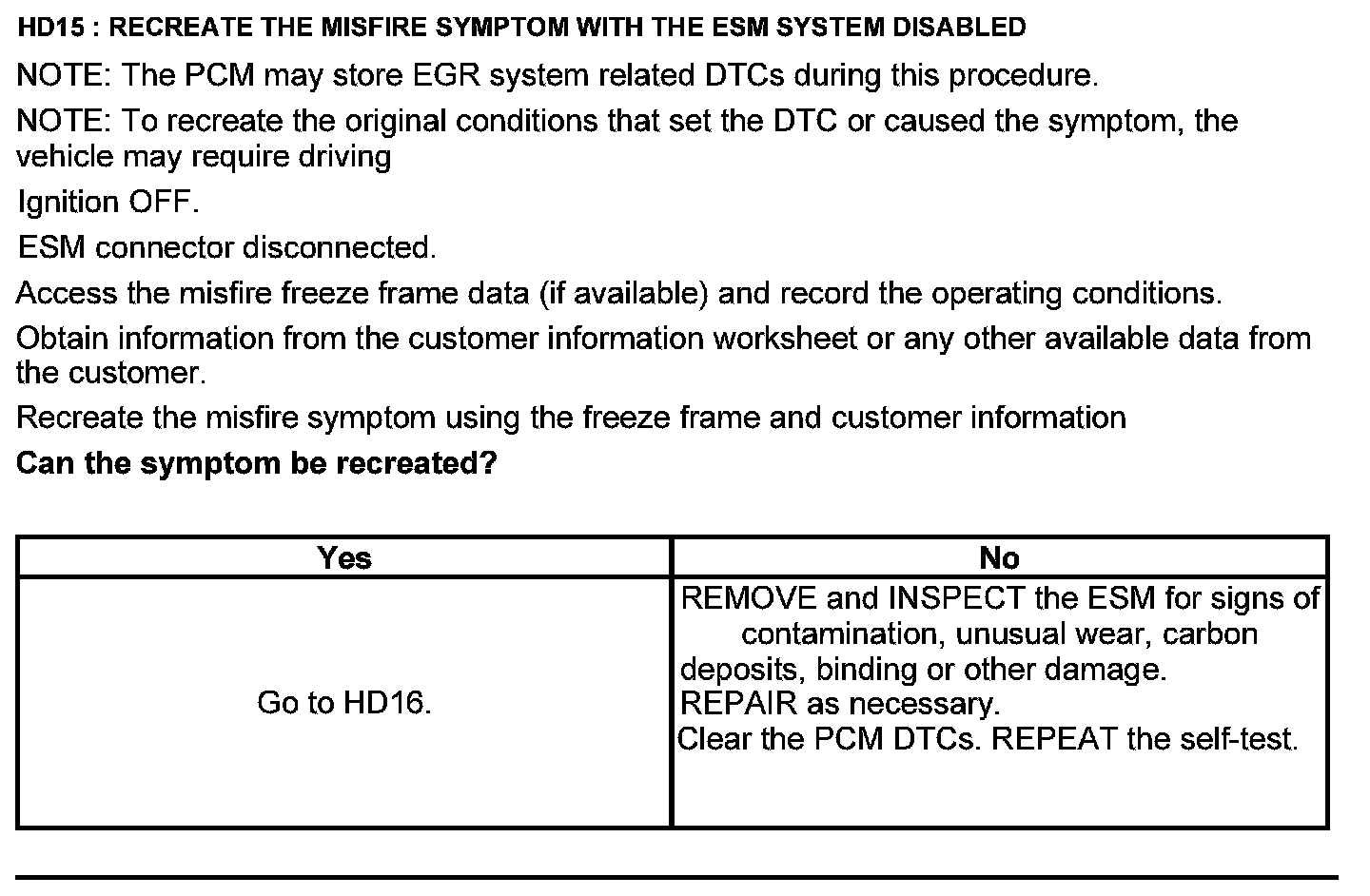

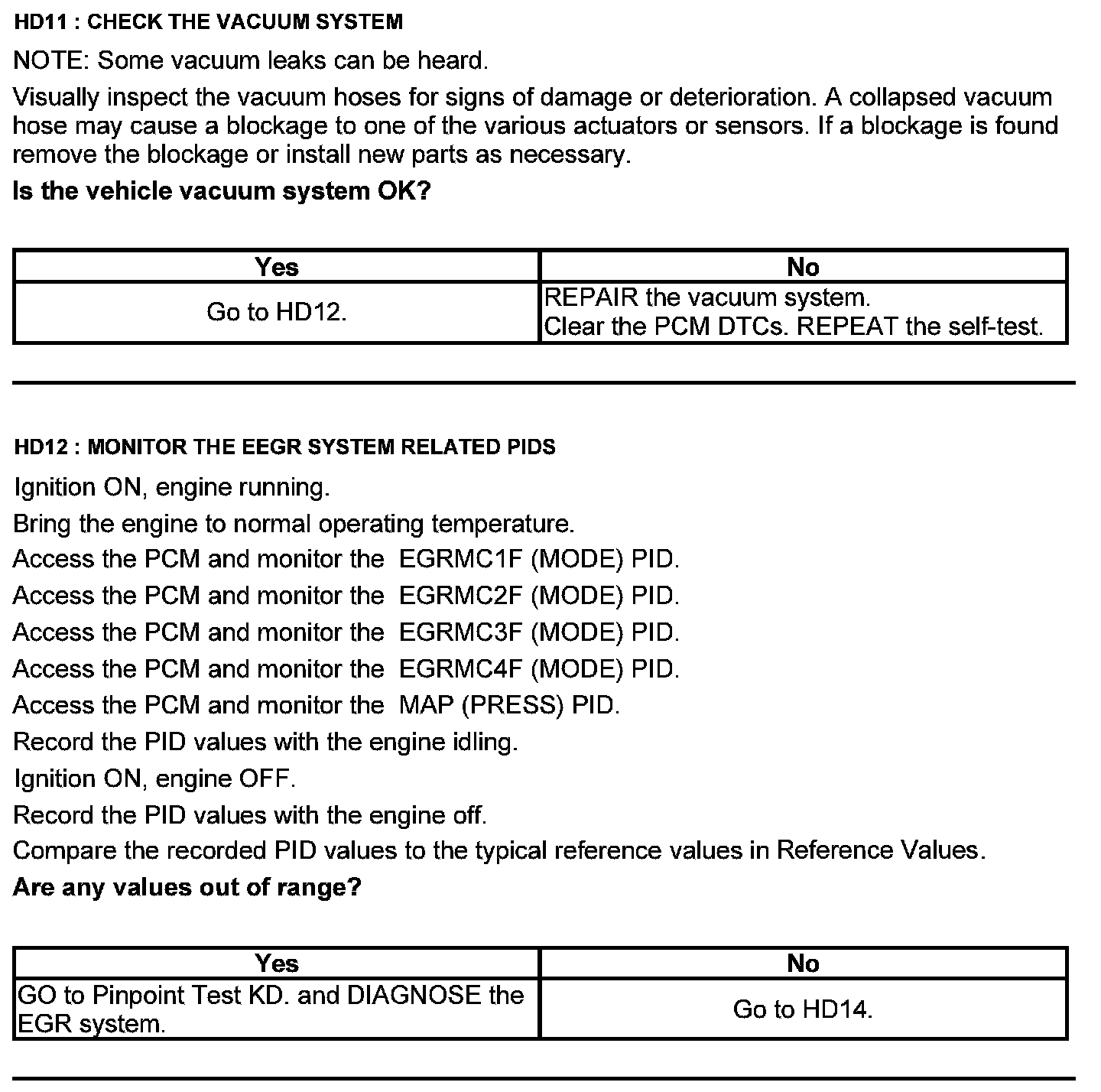

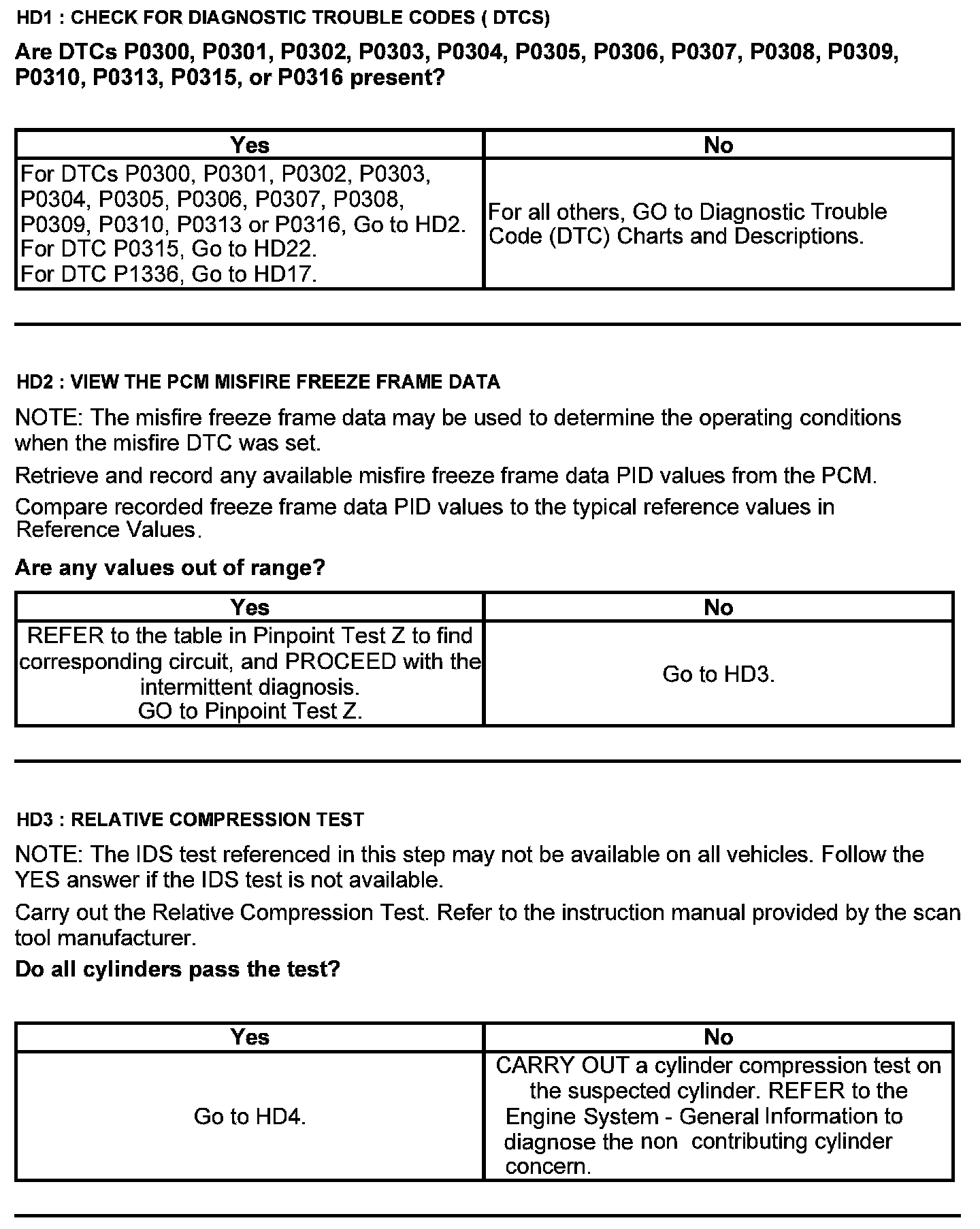

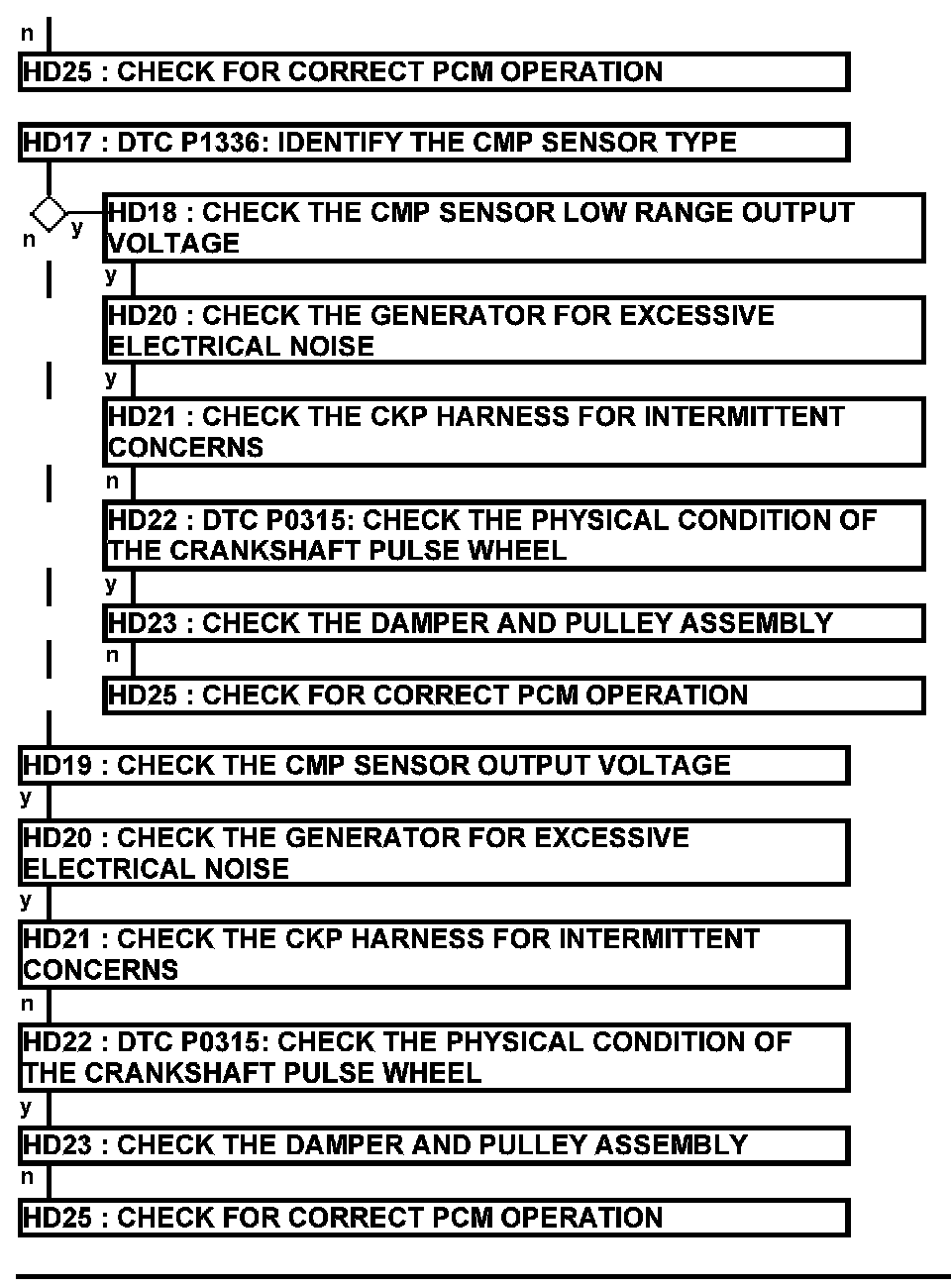

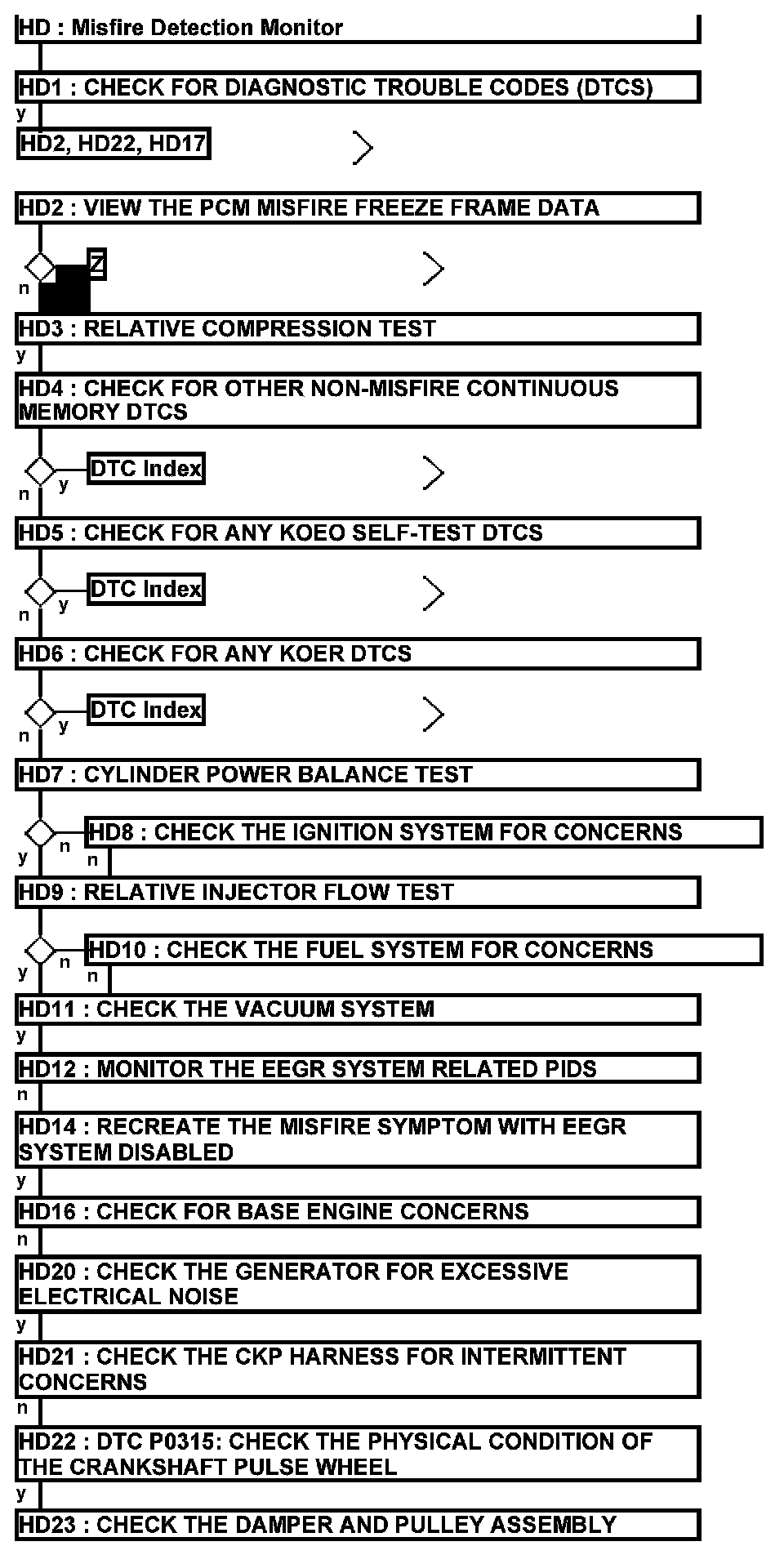

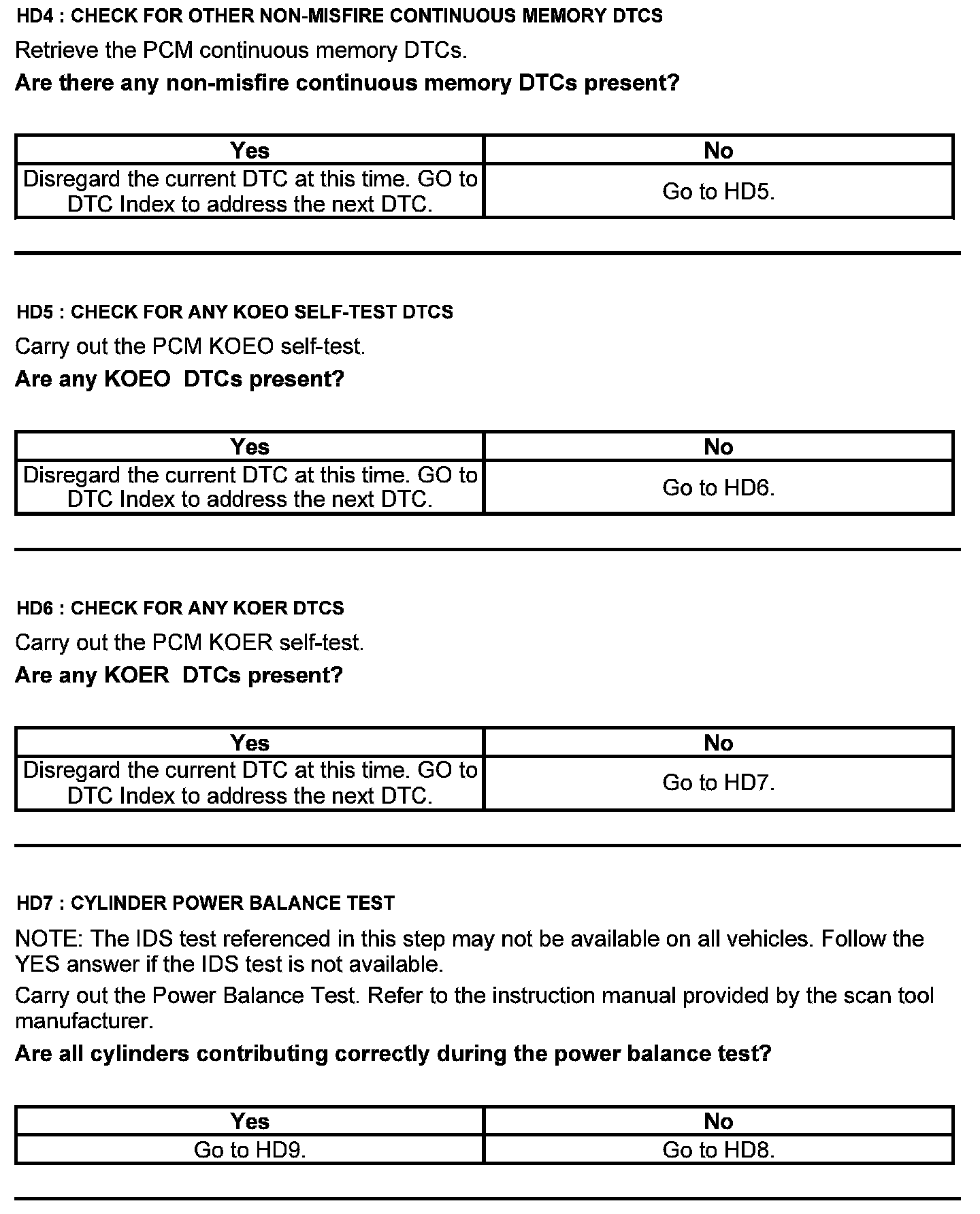

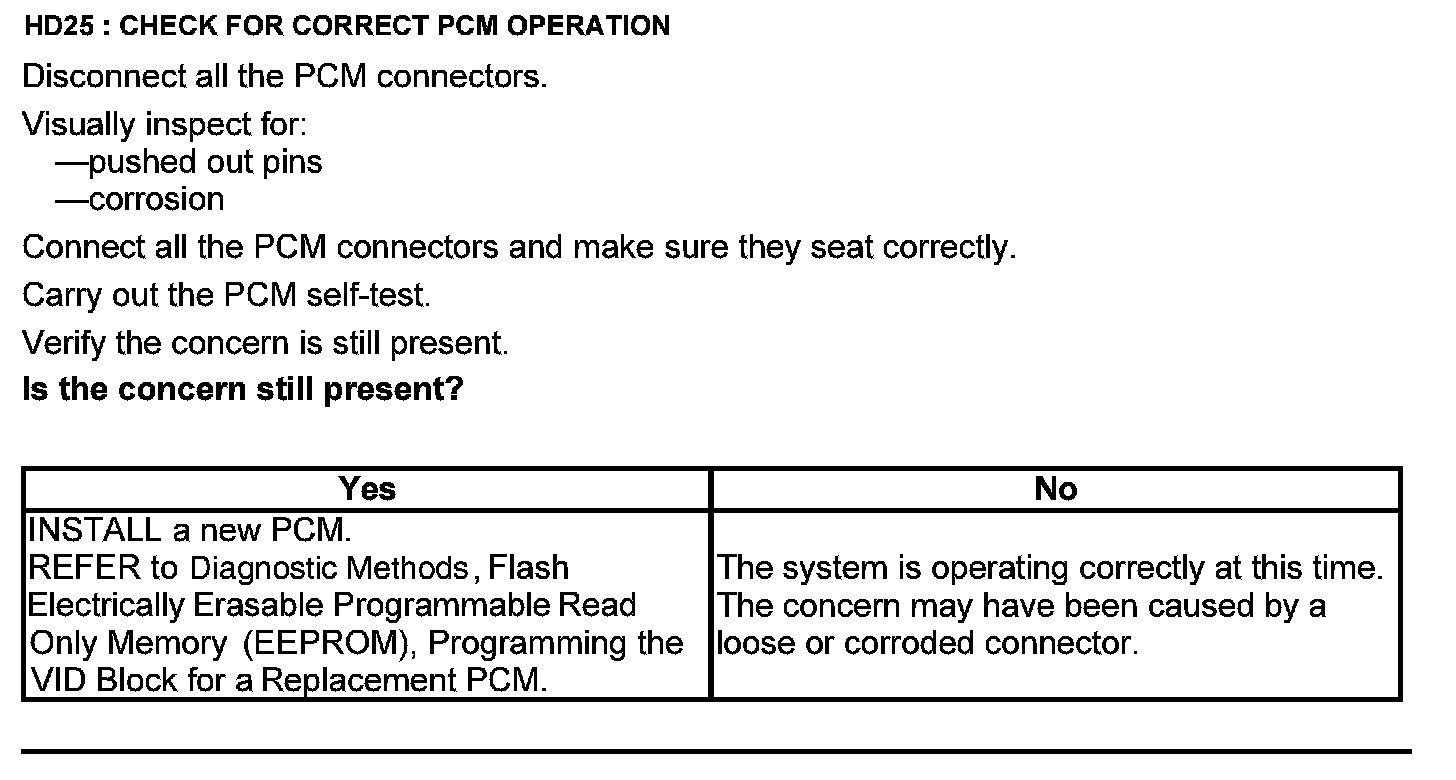

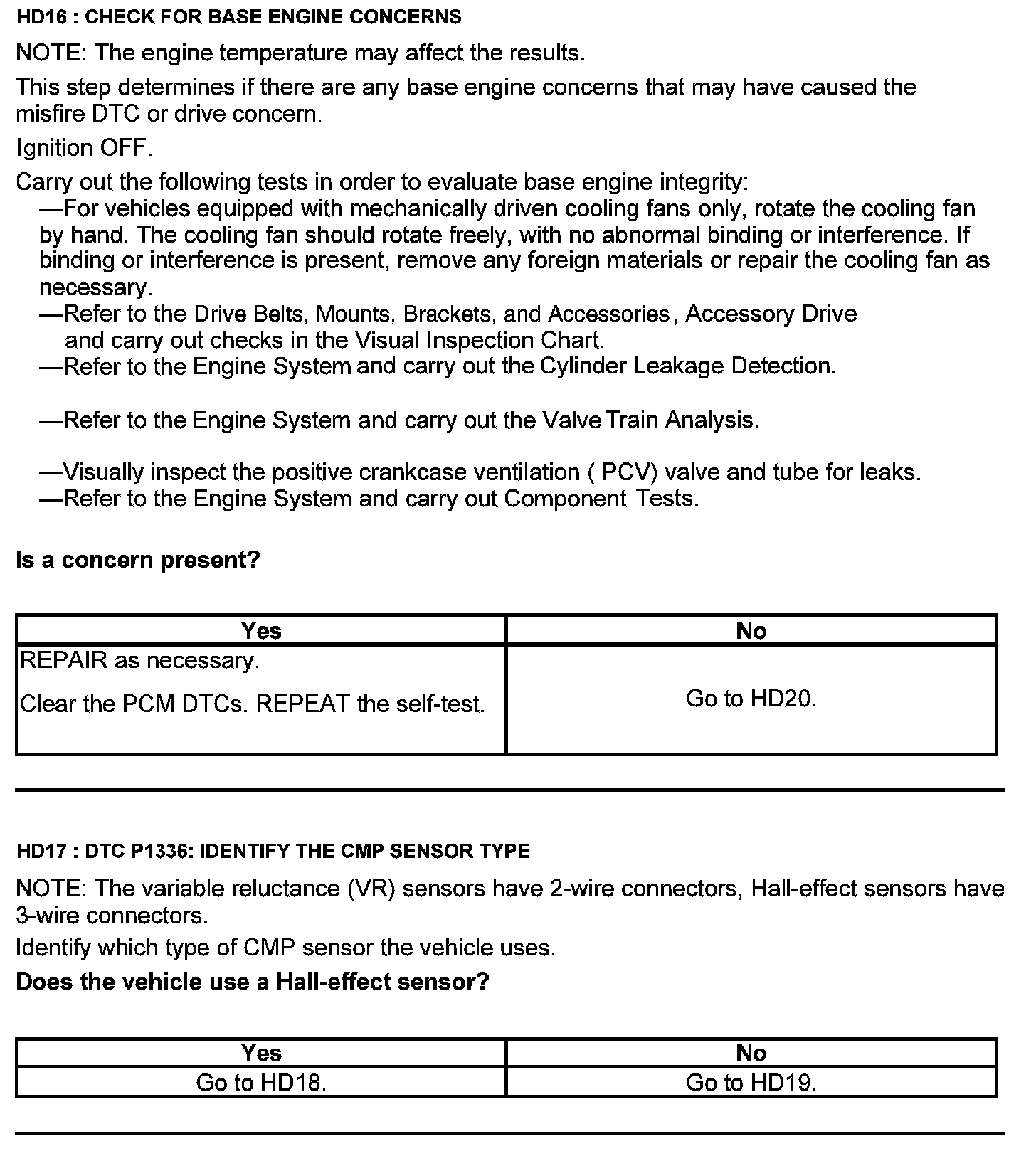

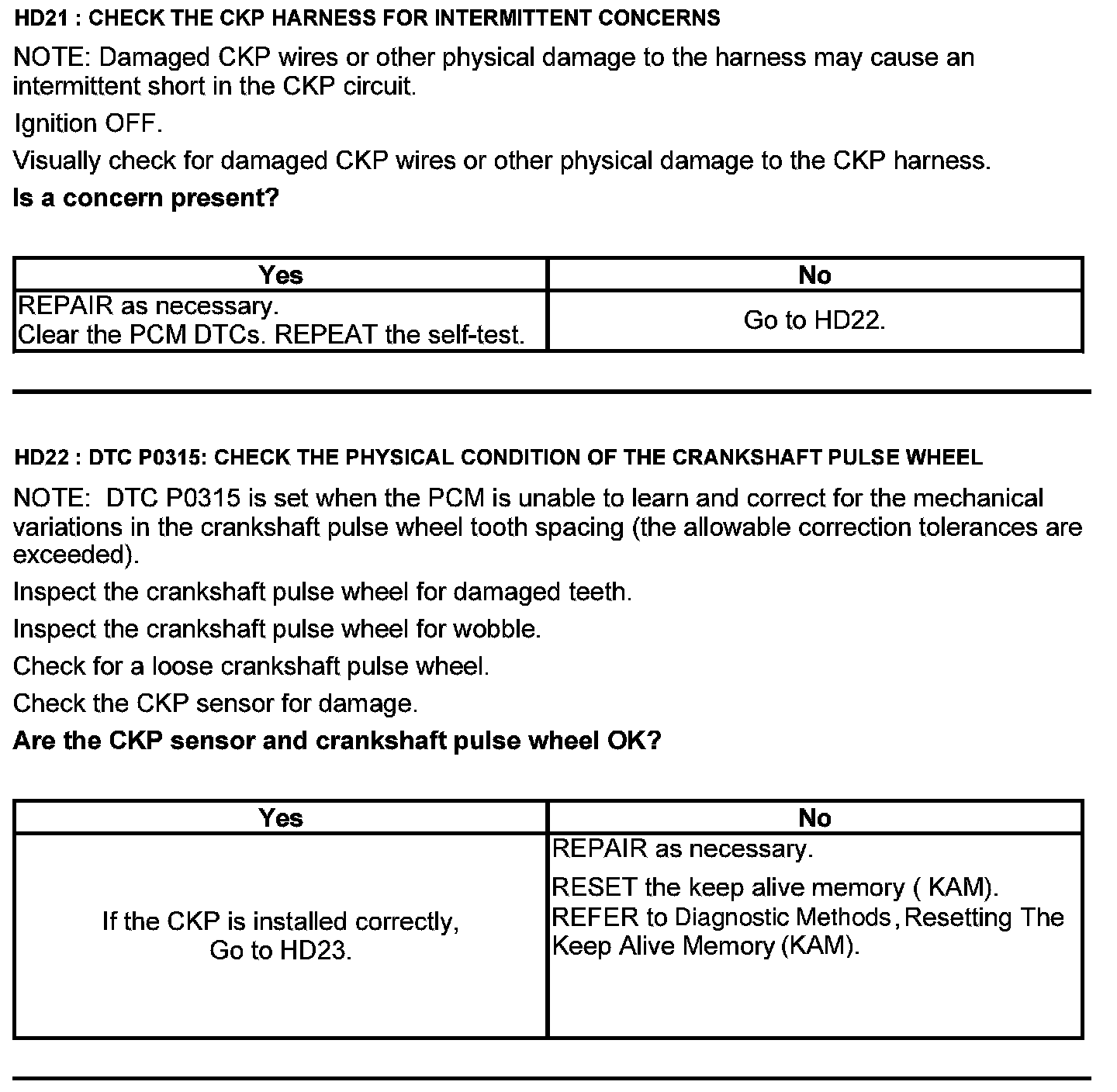

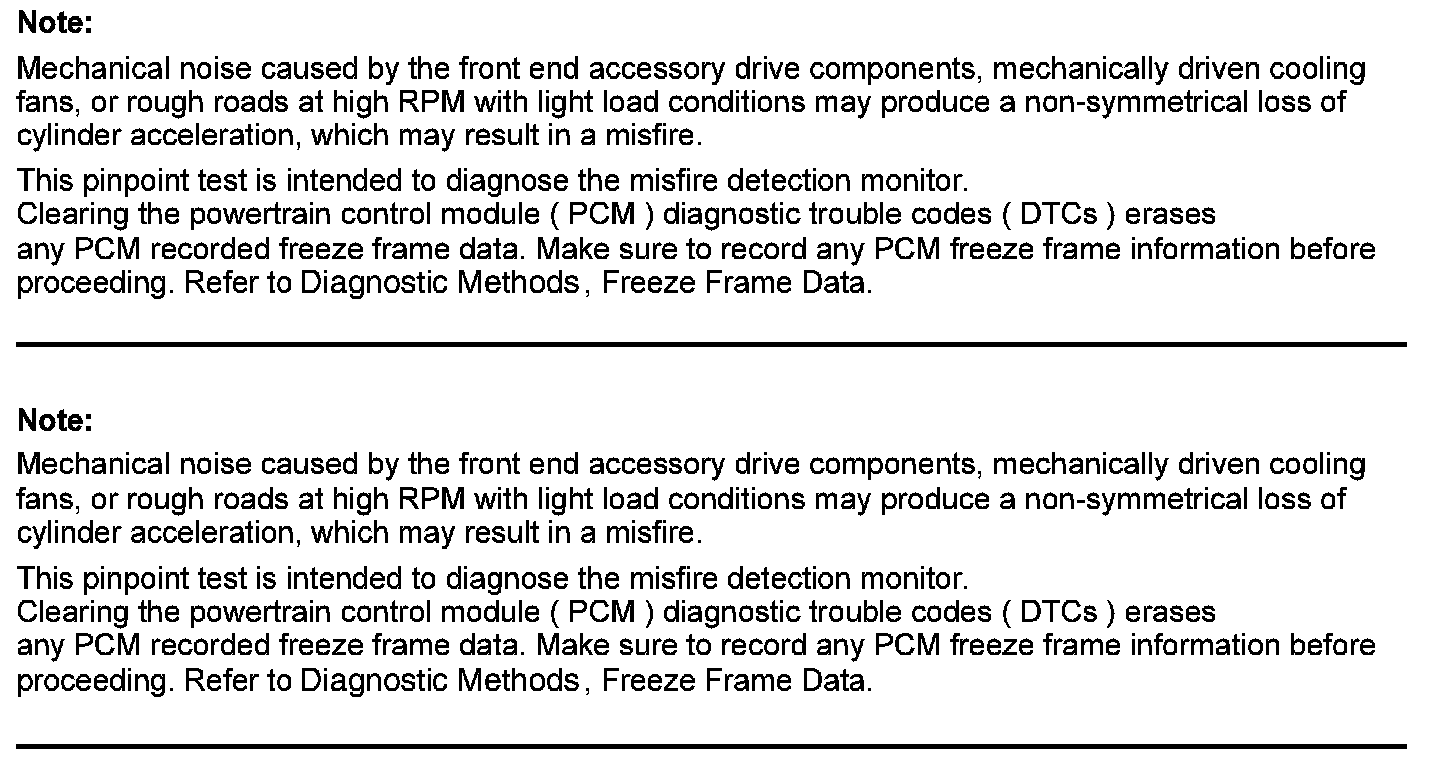

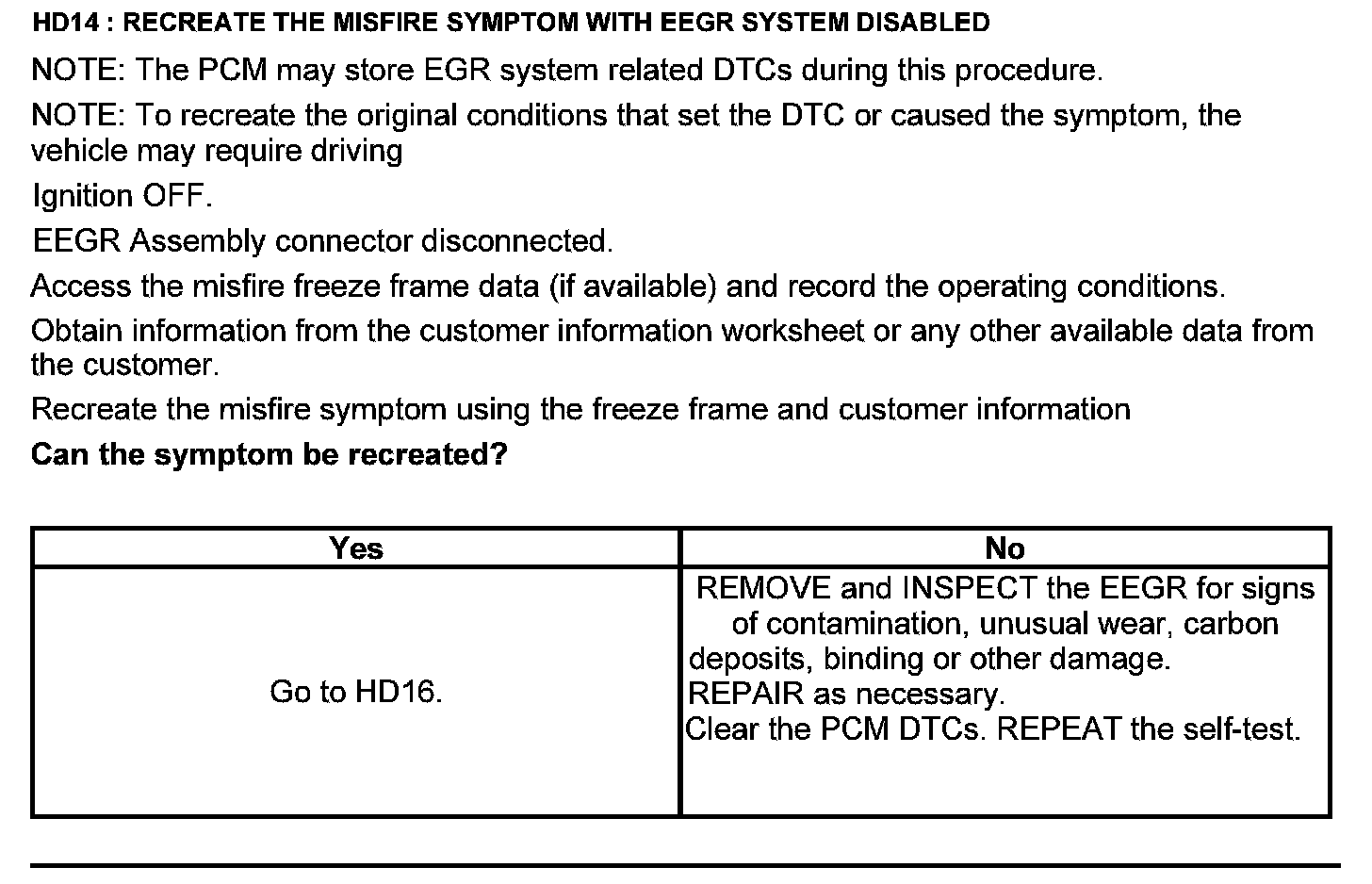

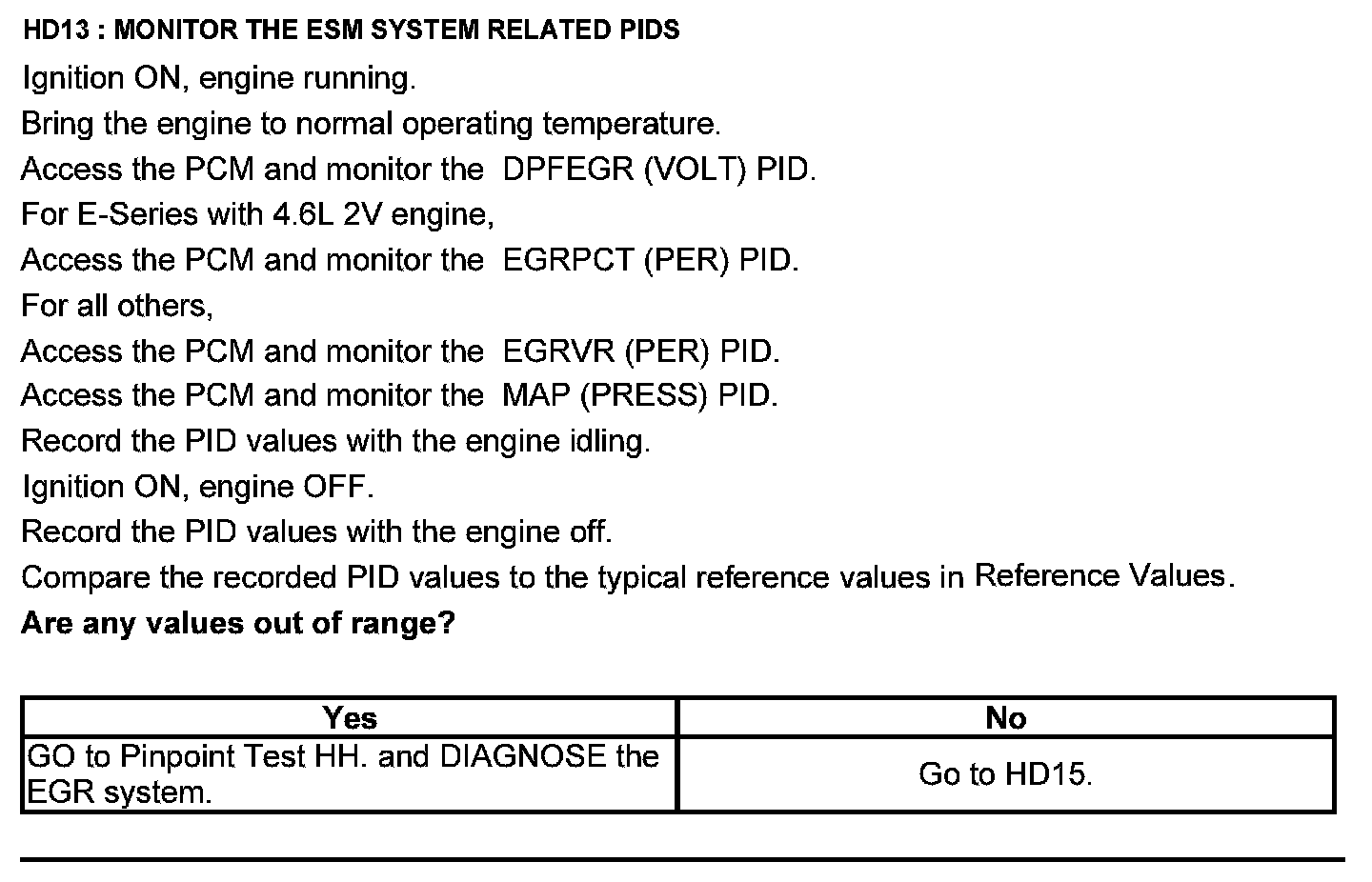

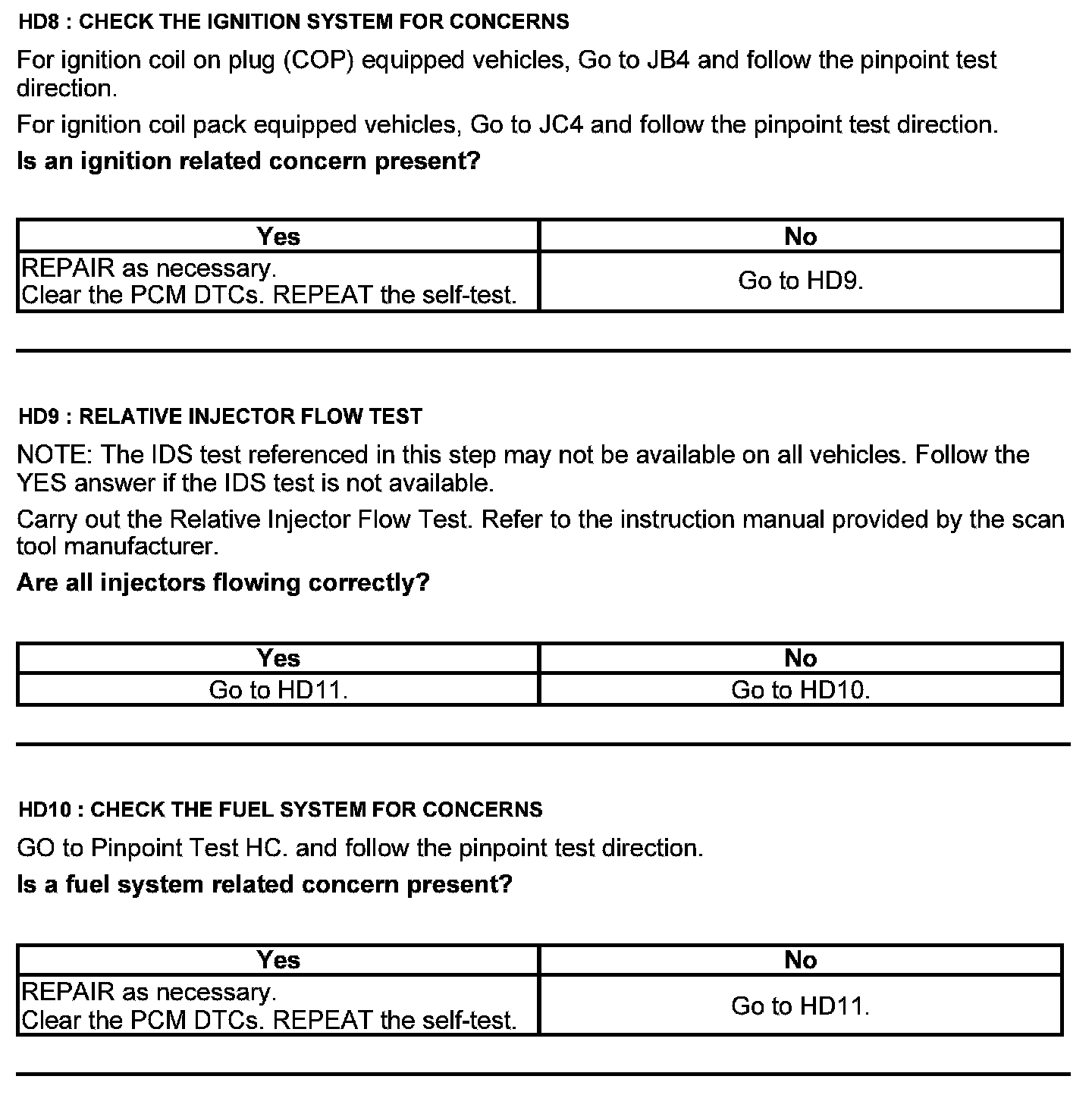

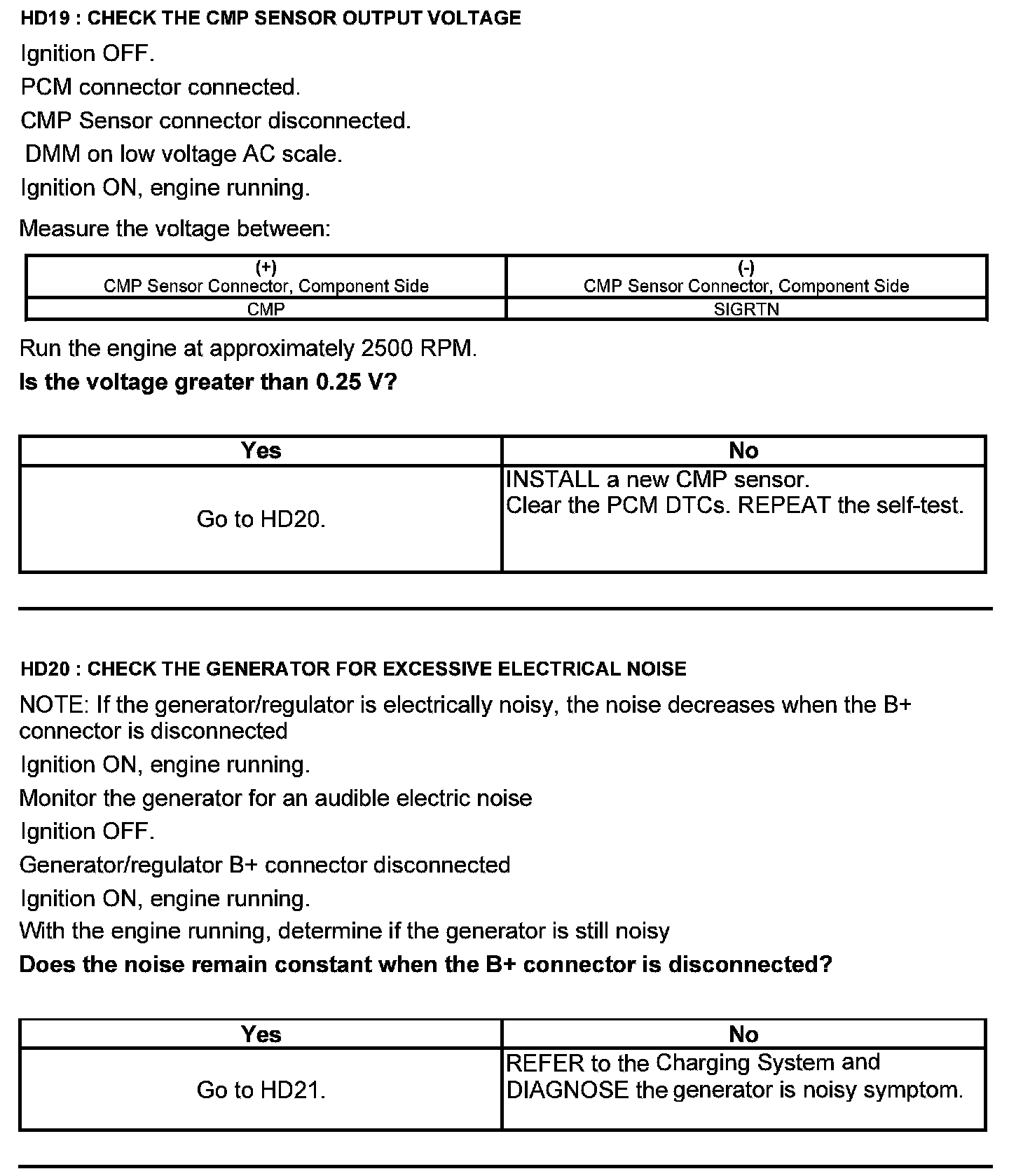

Misfire Detection Monitor - All Others

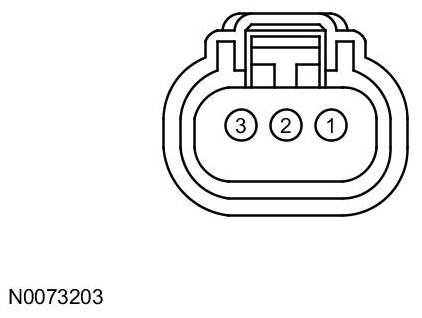

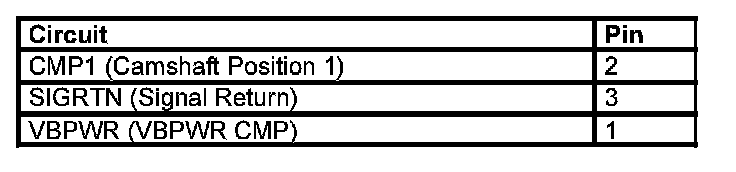

Camshaft Position 1 (CMP1) Sensor Connector





Harness Side
