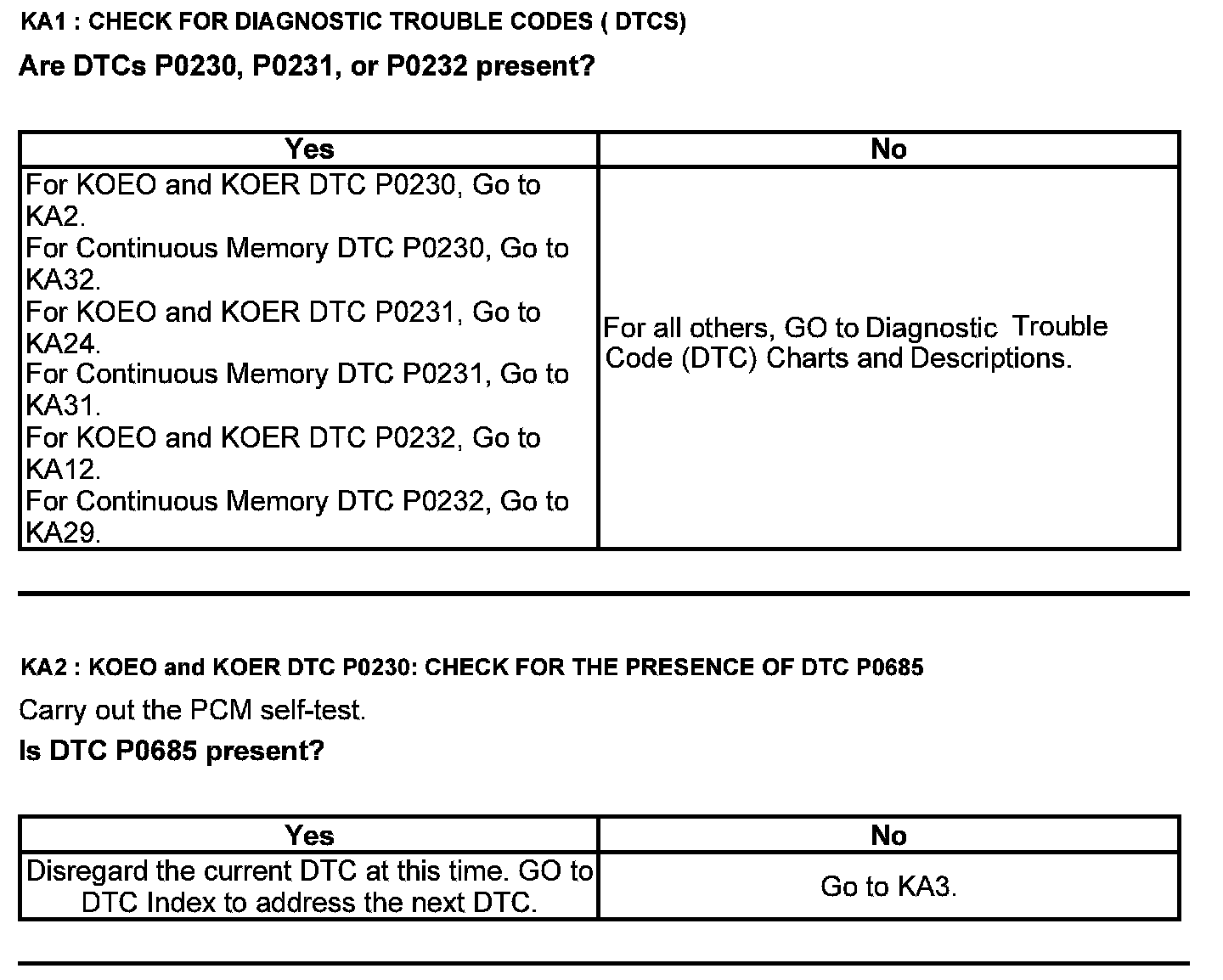

Automatic Transmission

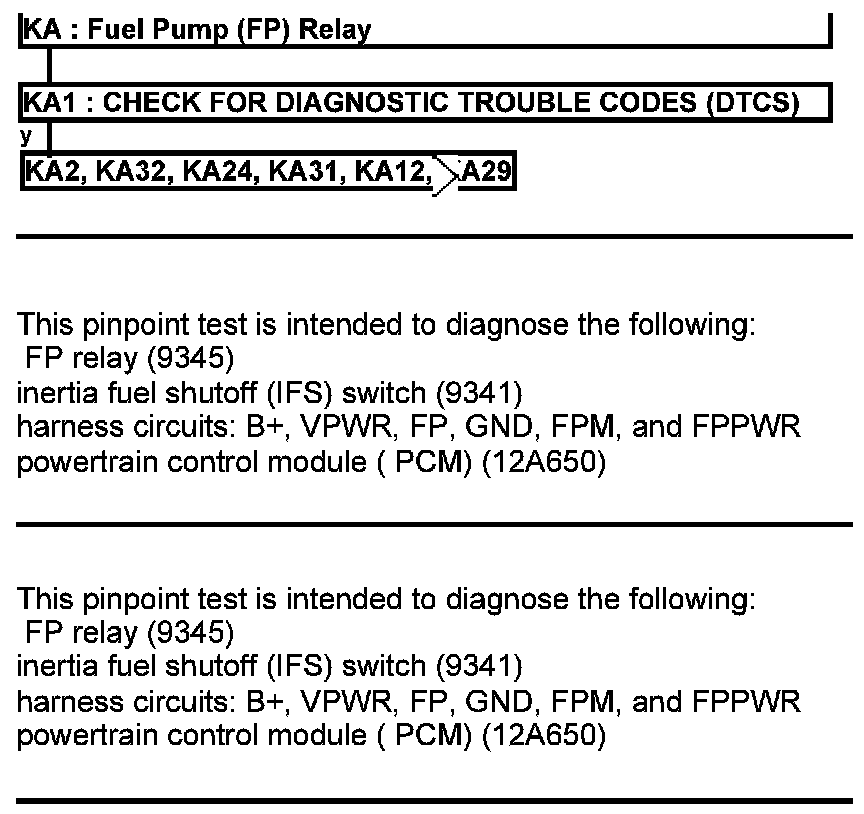

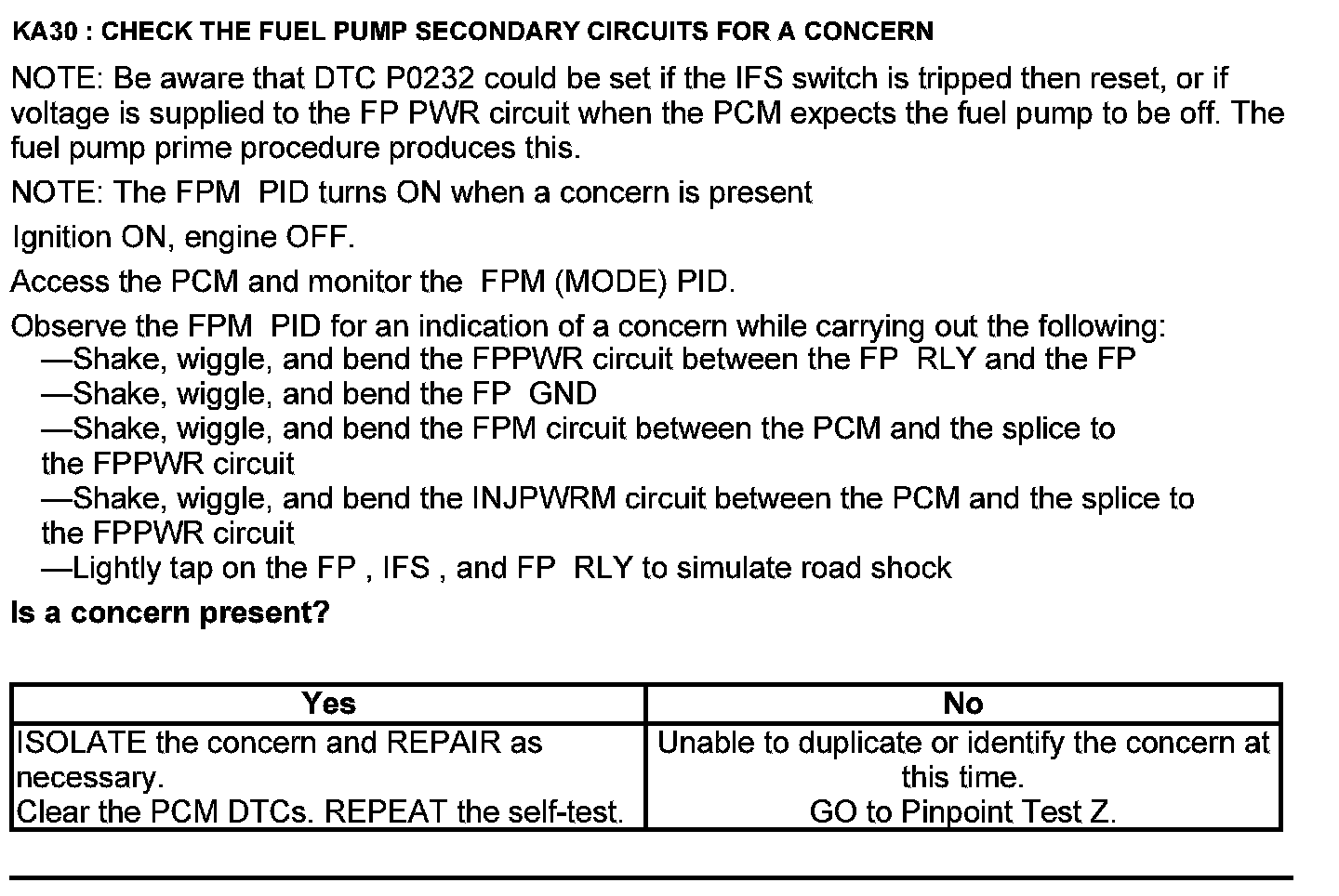

Fuel Pump (FP) Relay - Automatic Transmission

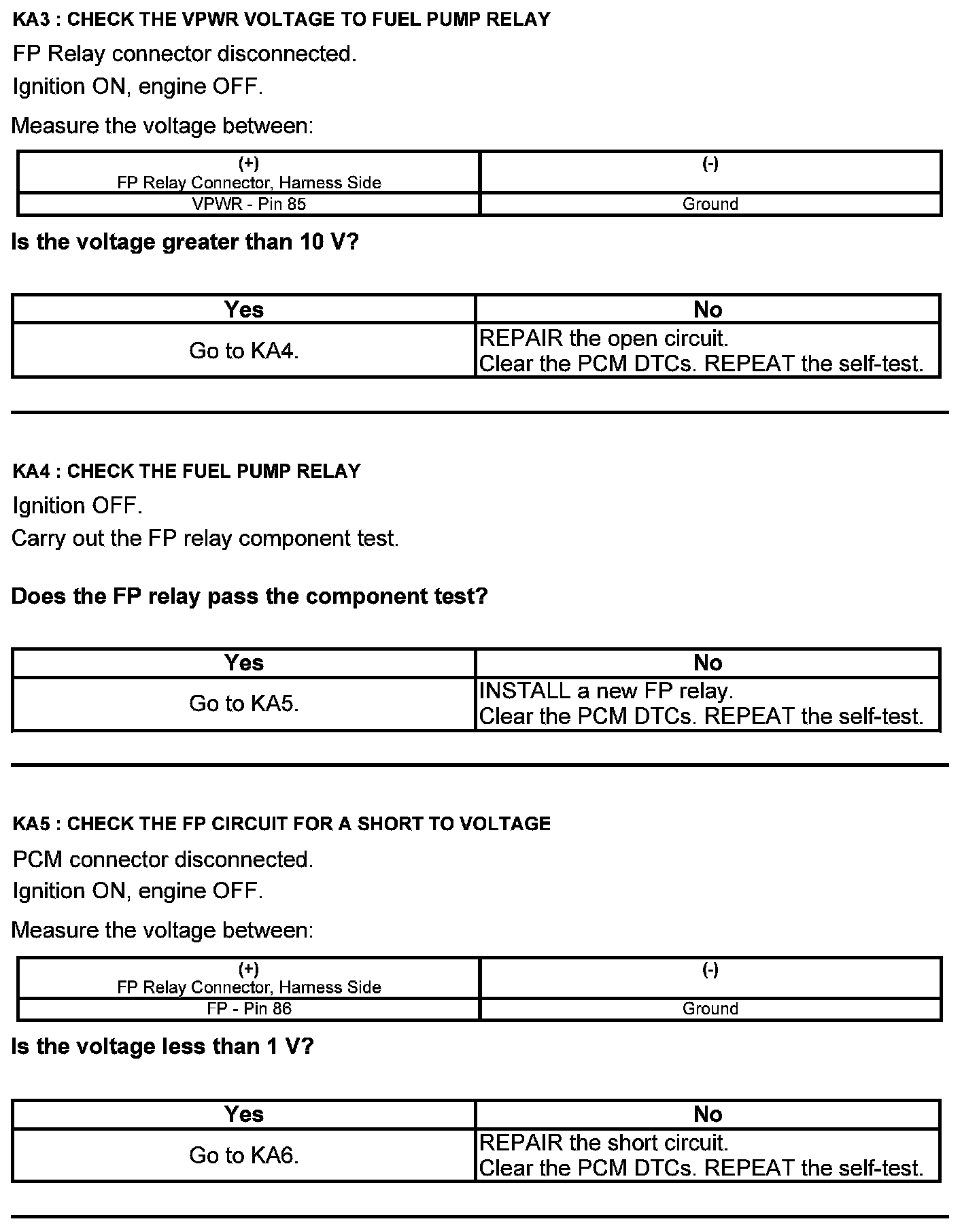

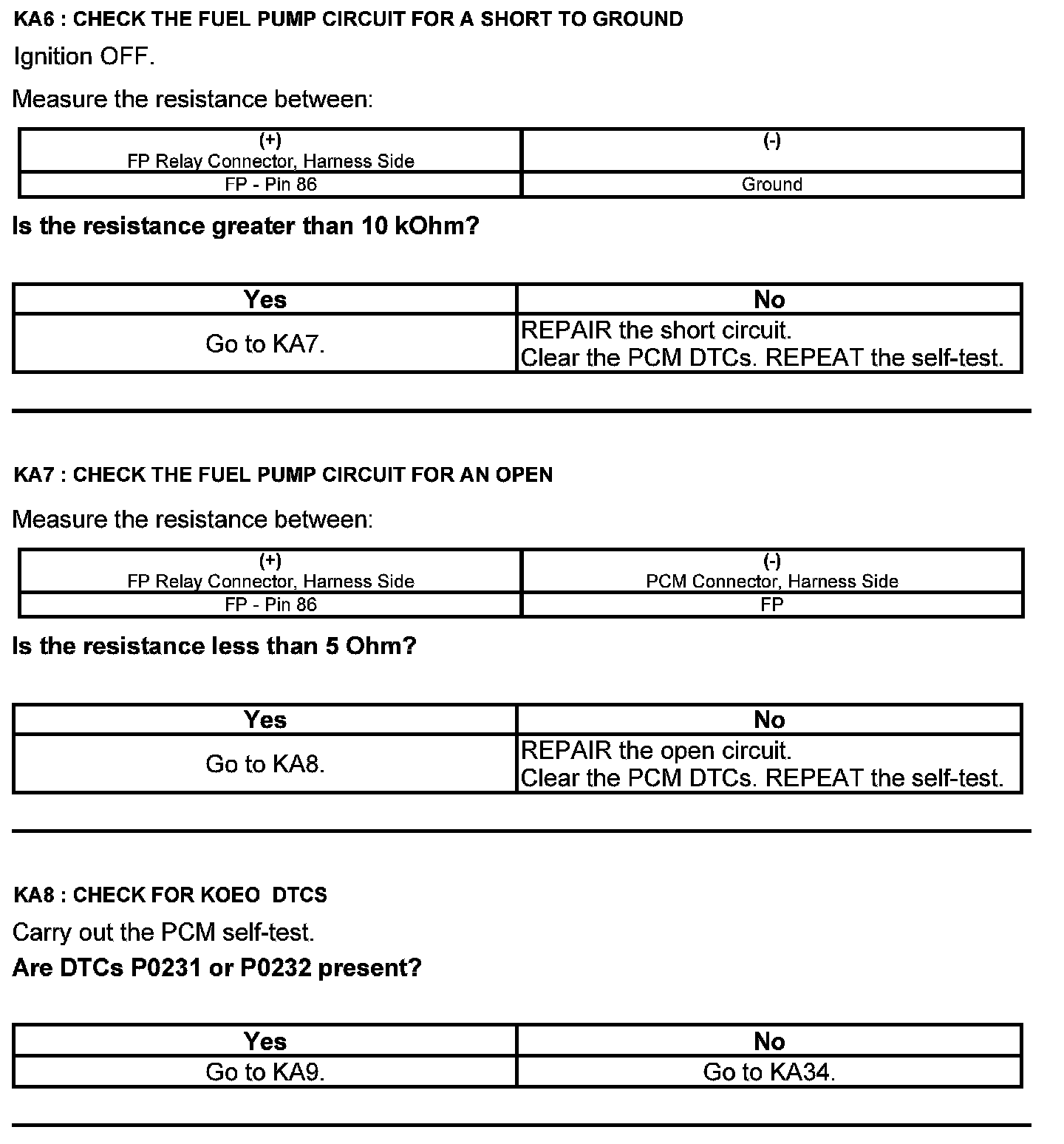

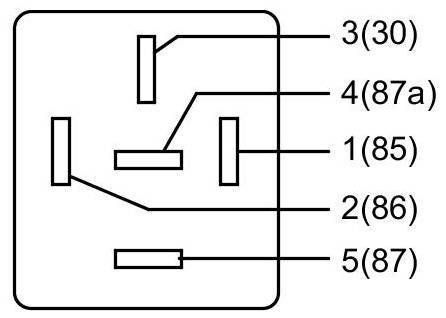

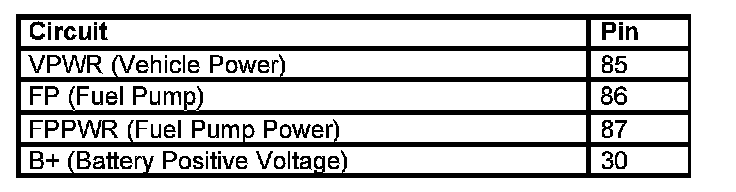

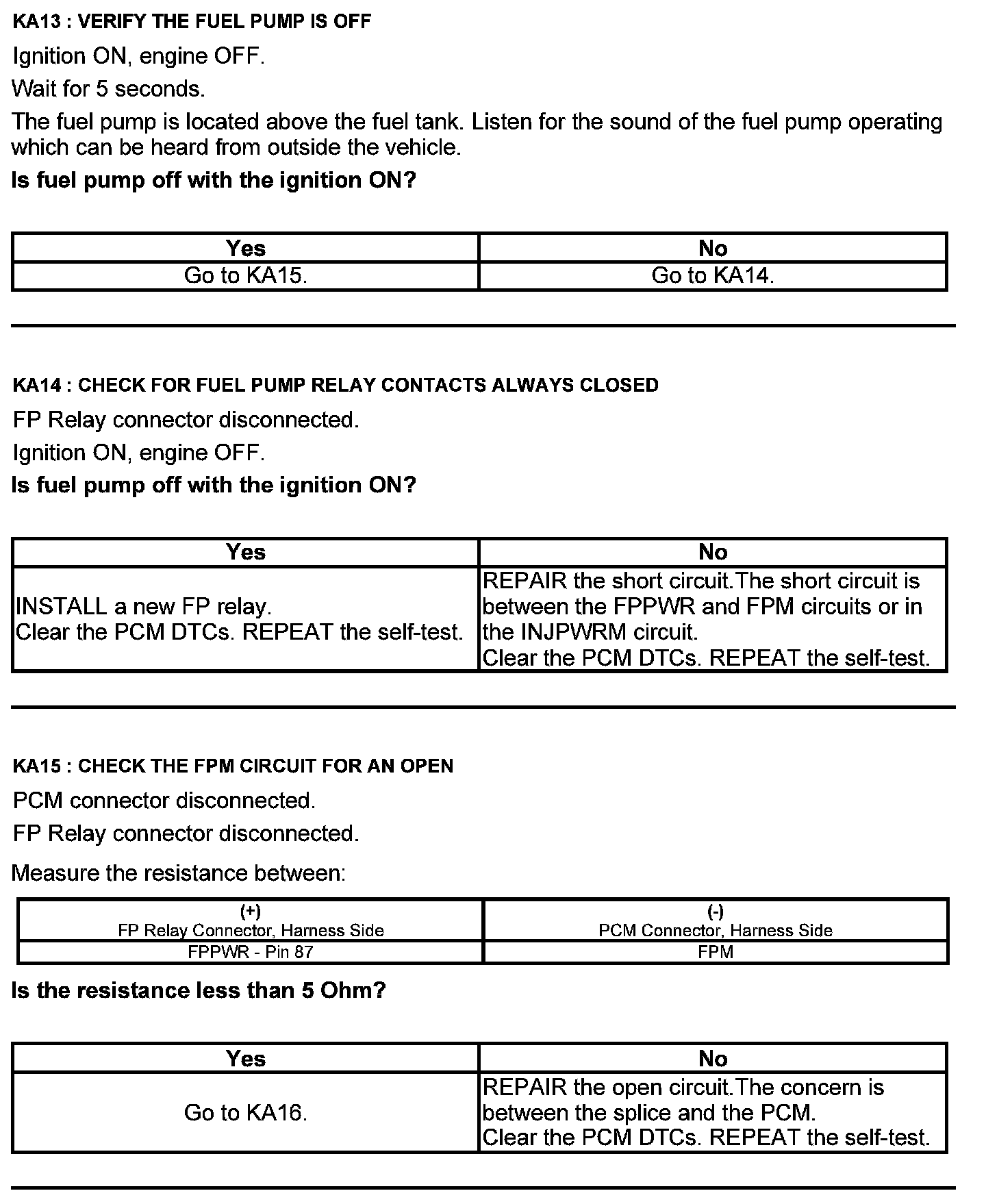

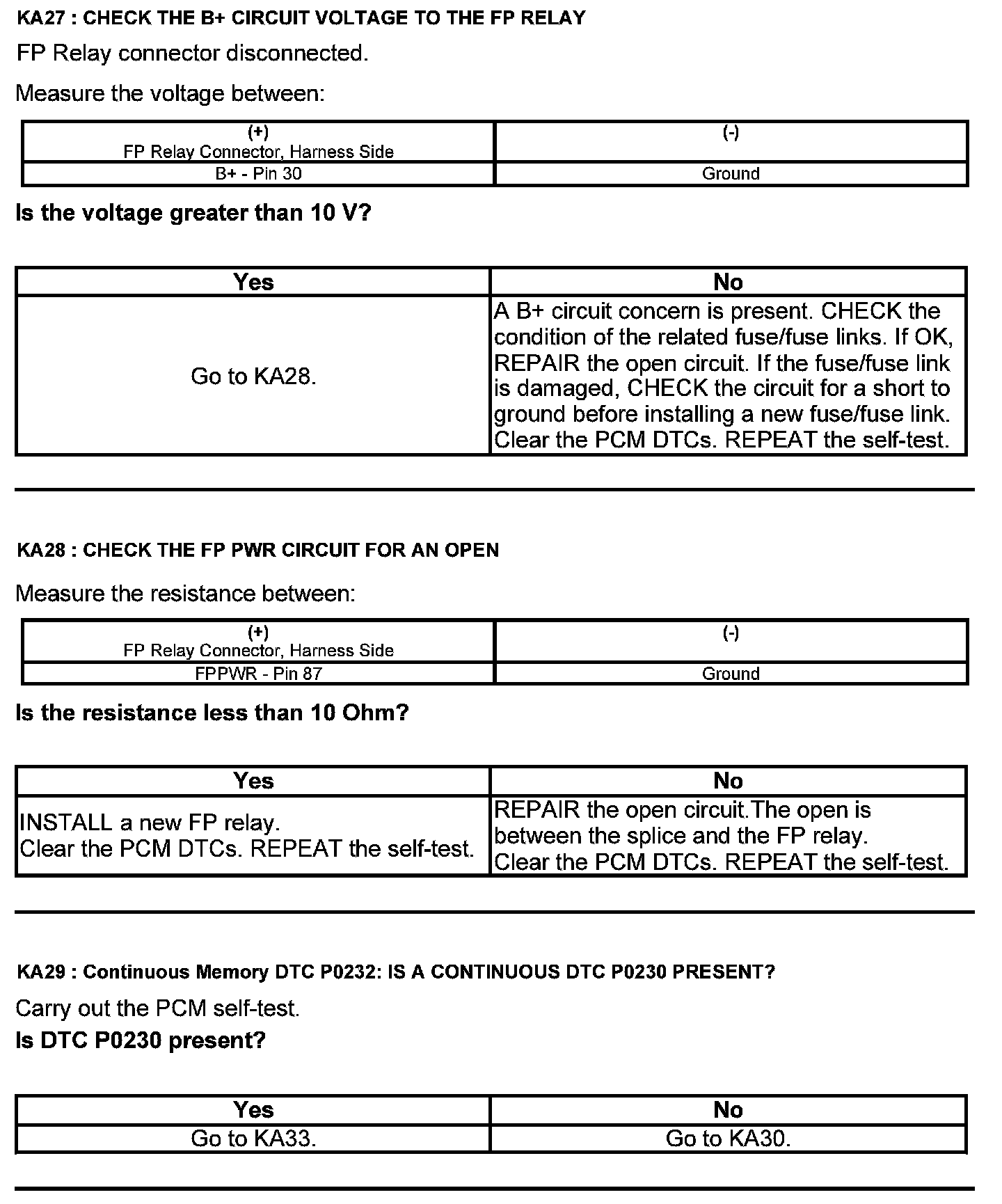

Fuel Pump (FP) Relay Connector - The VPWR and FP circuits may be reversed in the harness connector. Refer to the Wiring Diagrams for schematic and connector information.





Harness Side

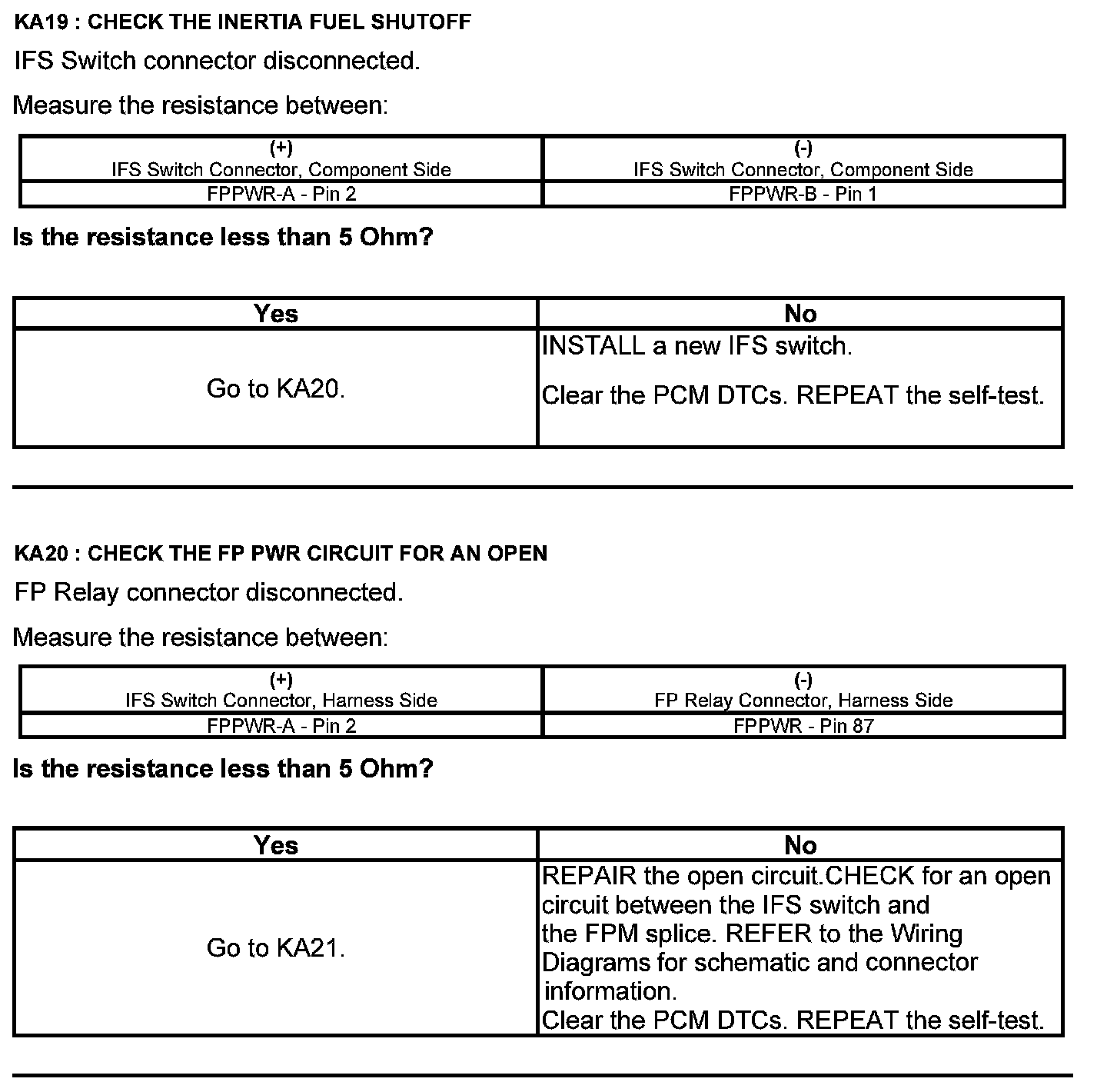

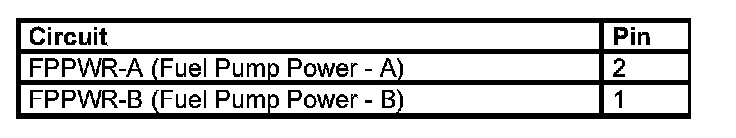

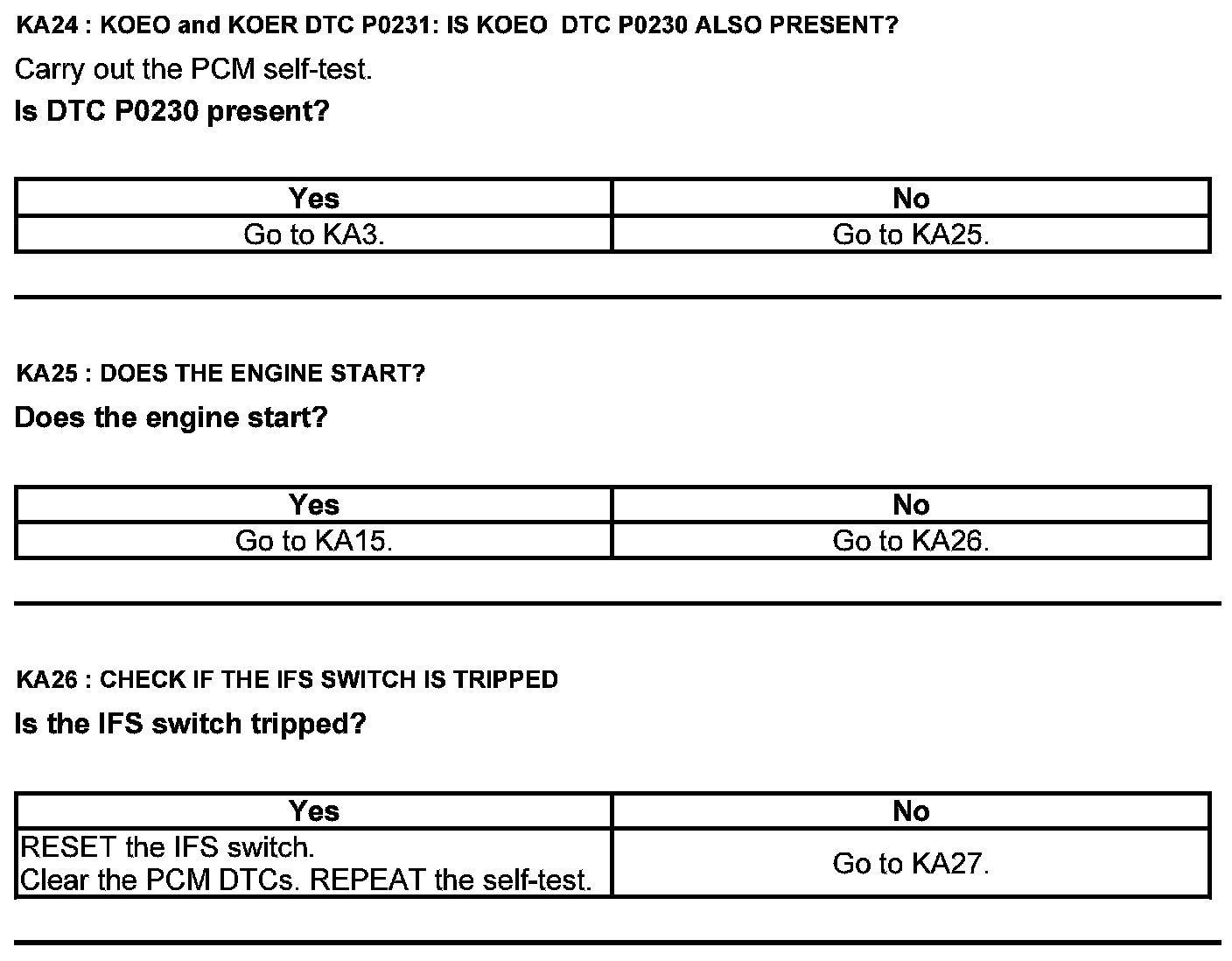

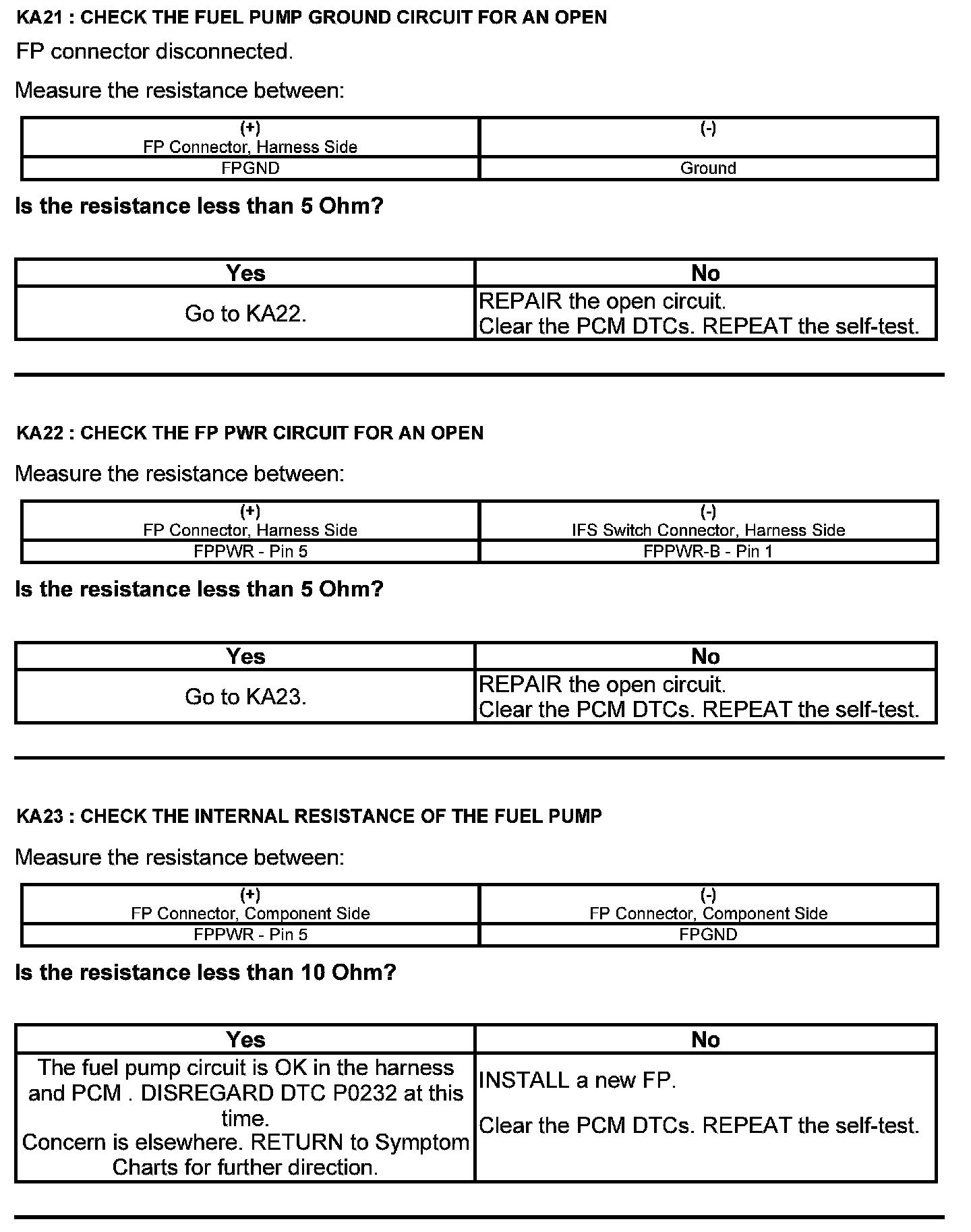

Inertia Fuel Shutoff (IFS) Switch Connector





Harness Side

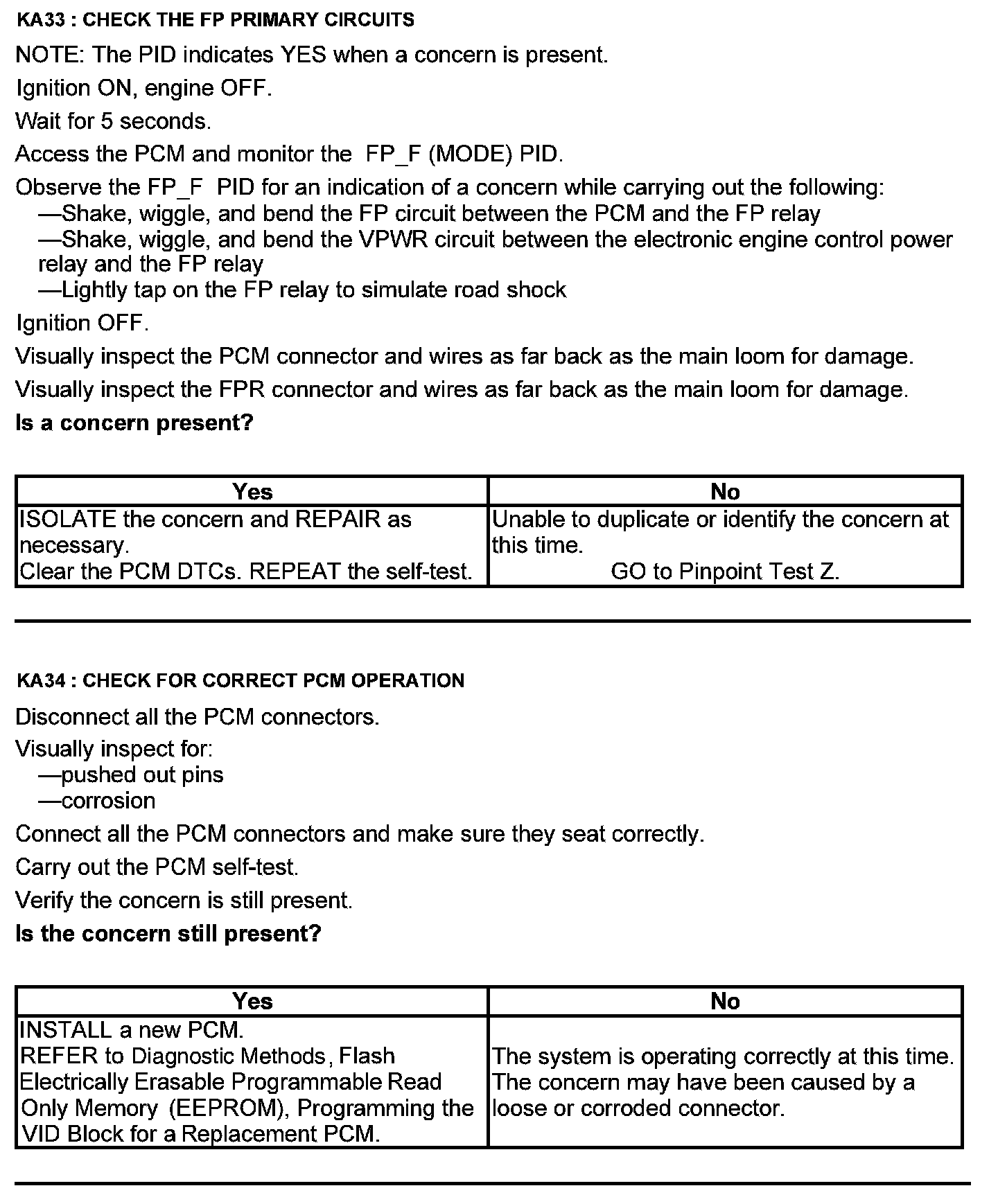

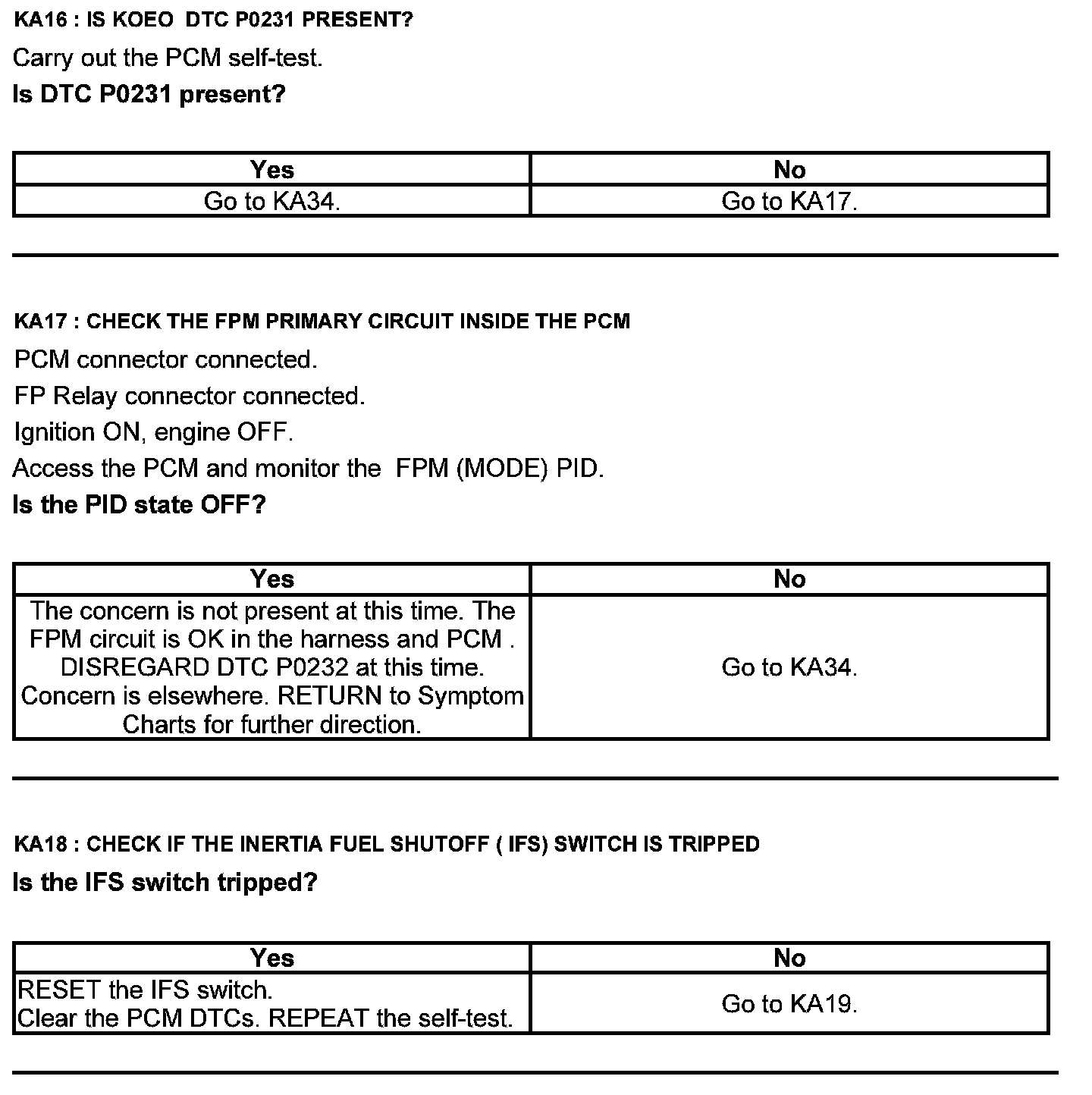

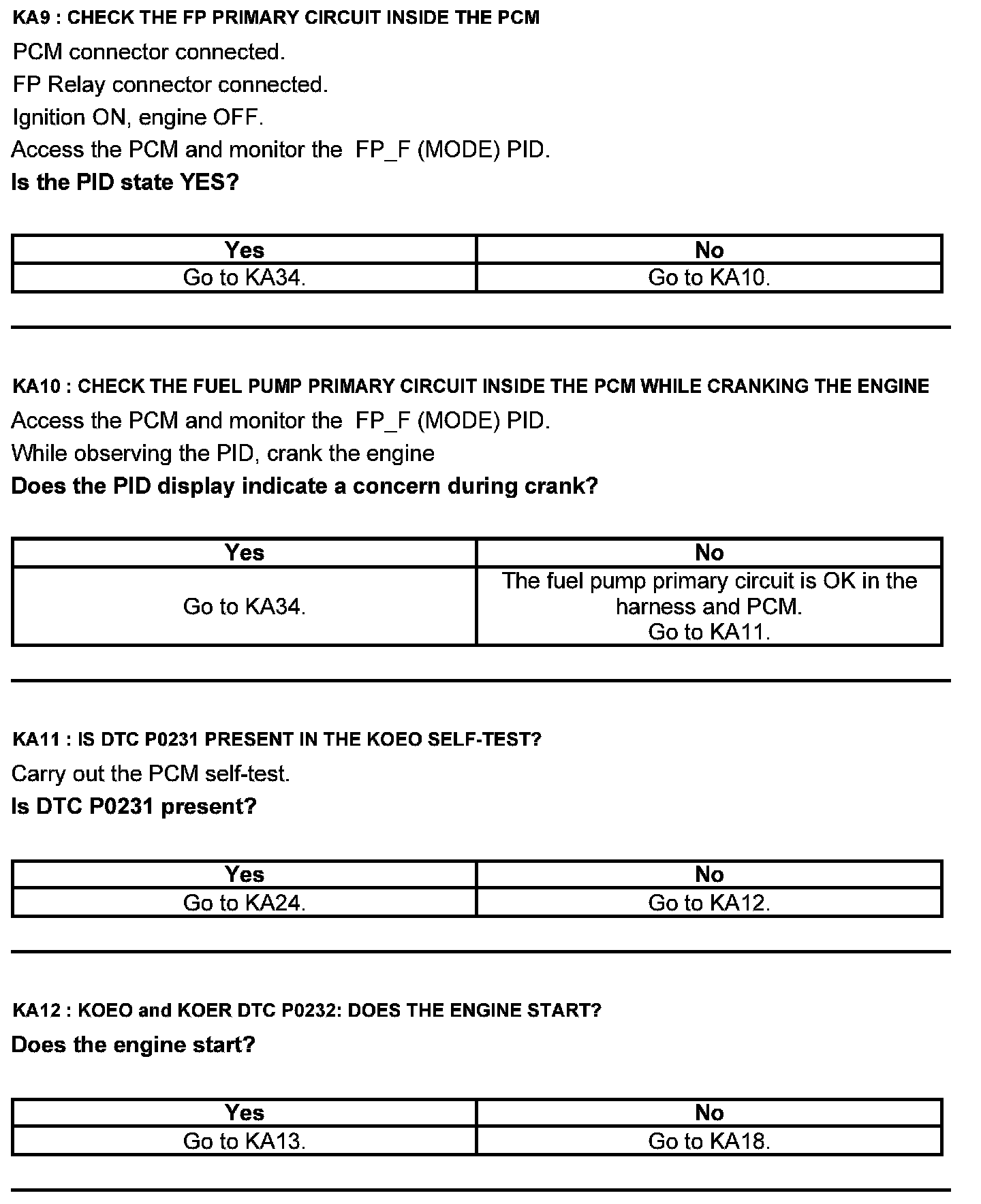

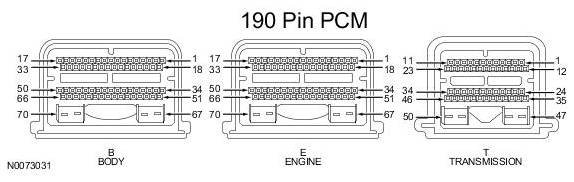

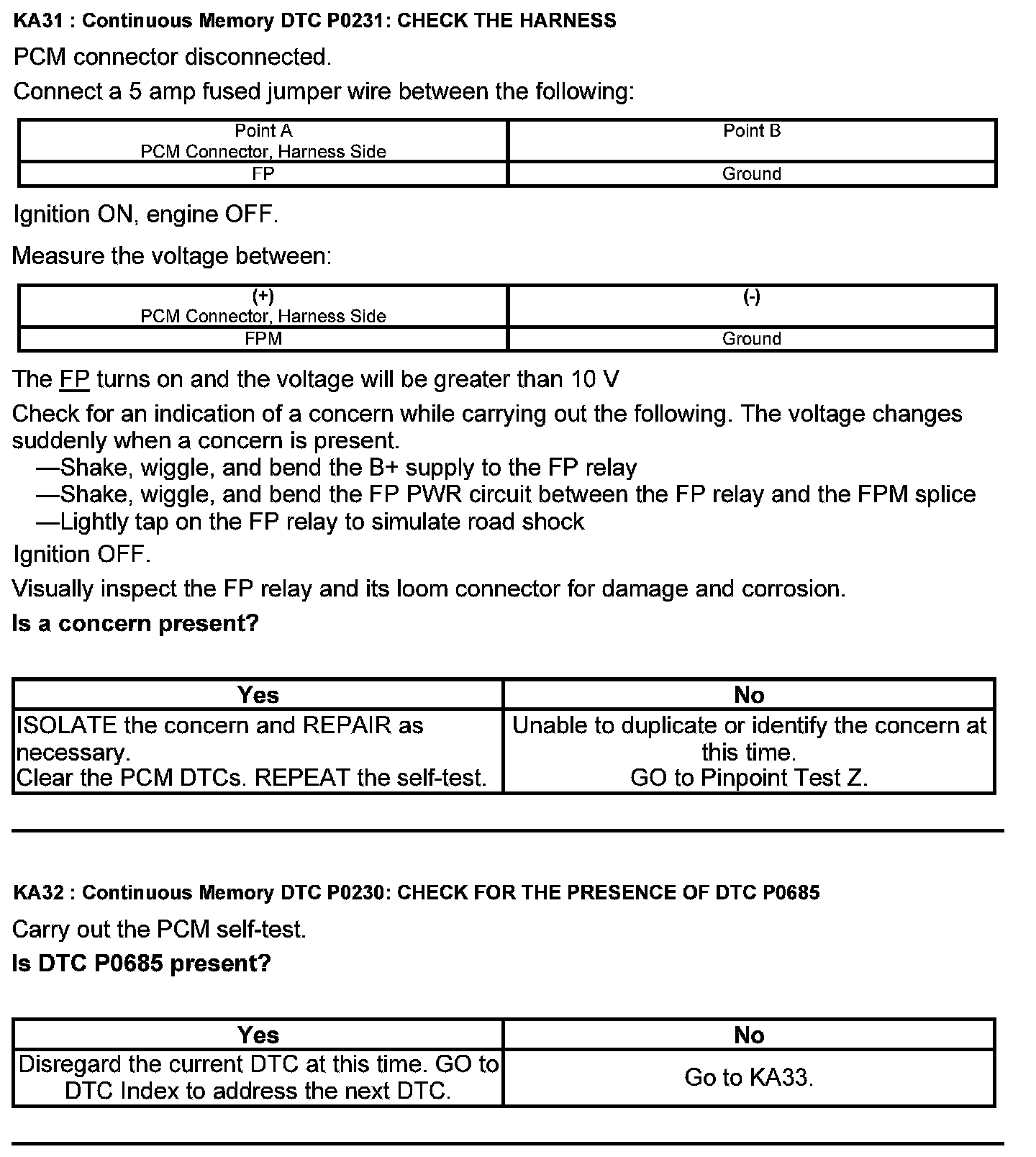

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
