All Others

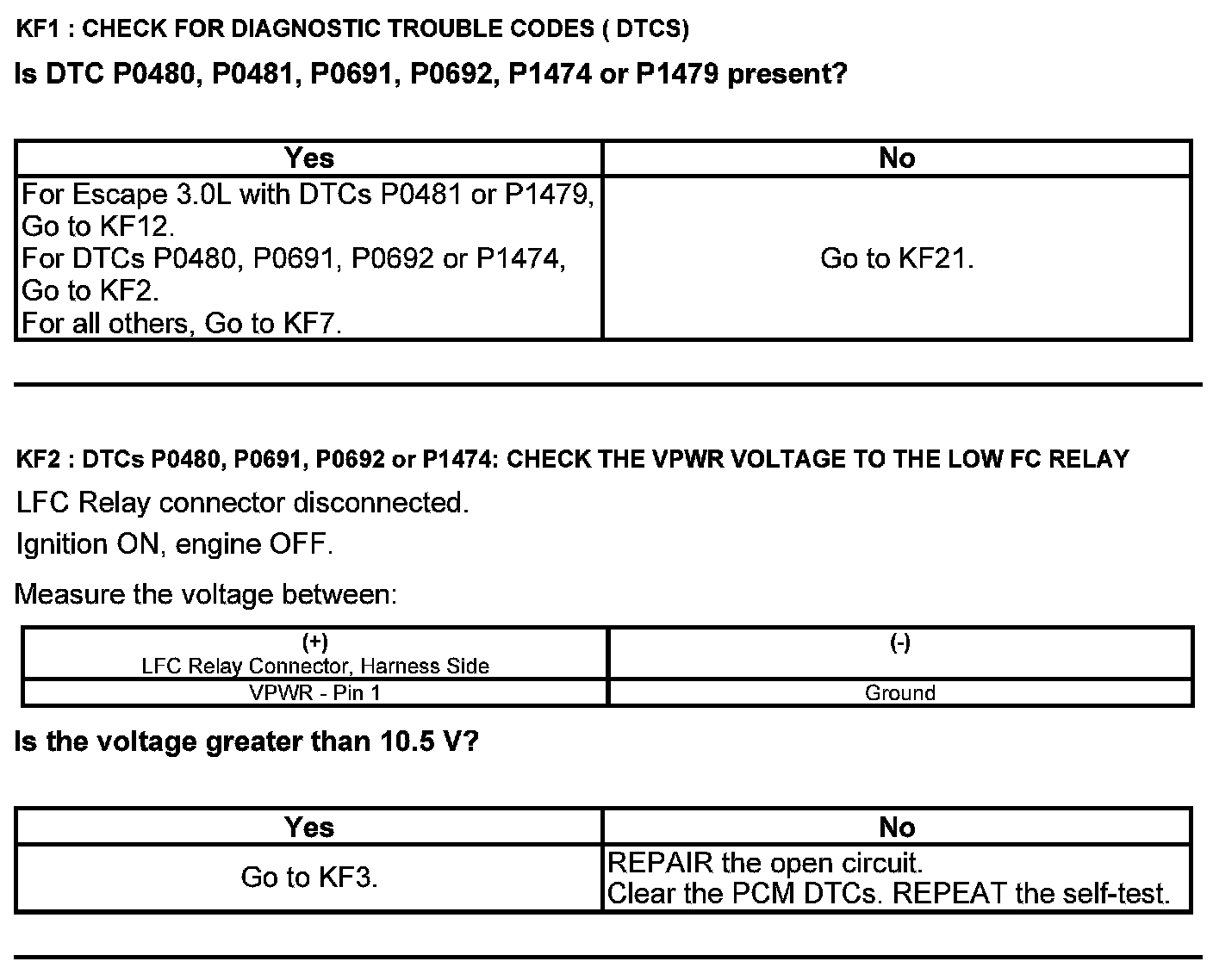

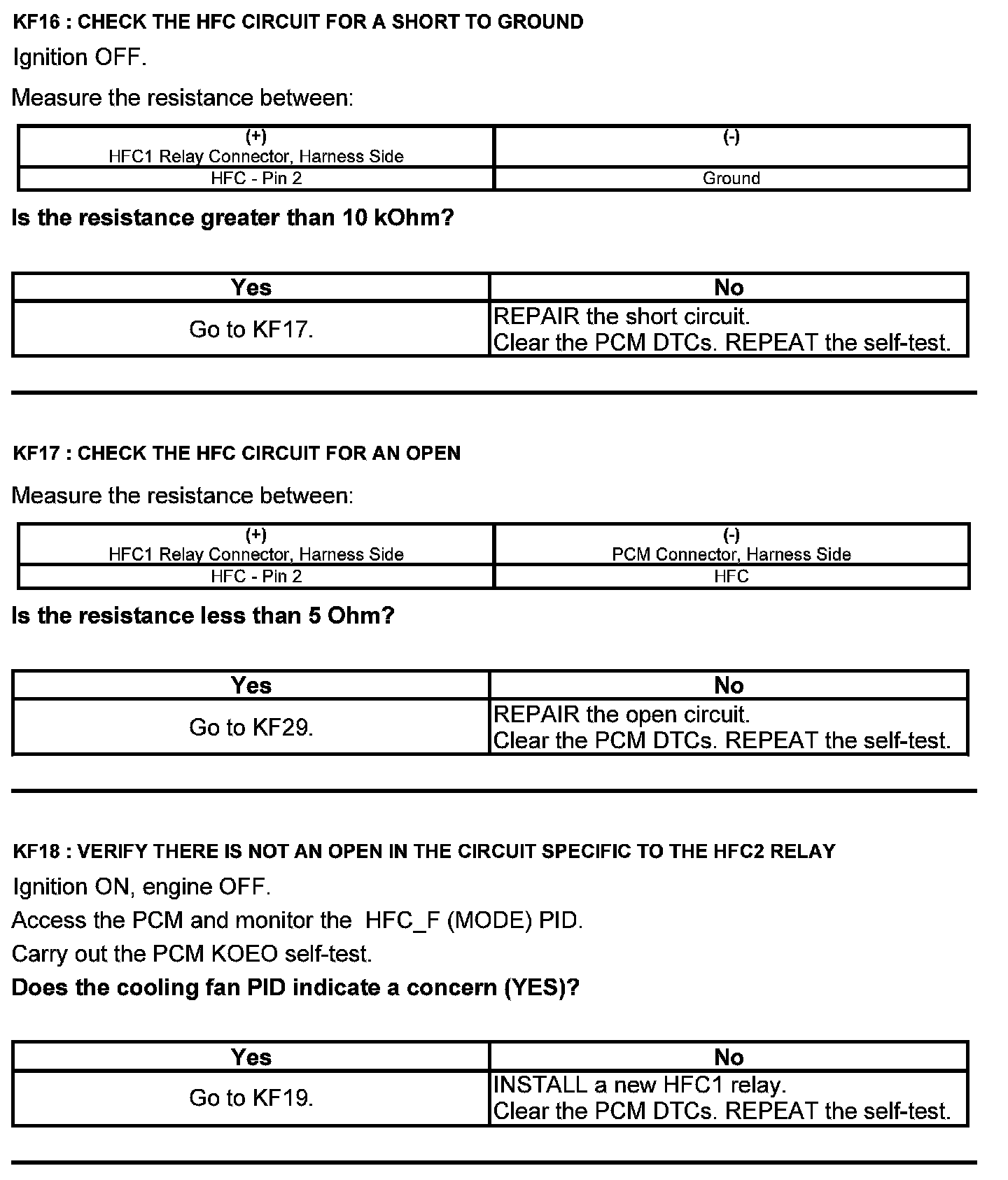

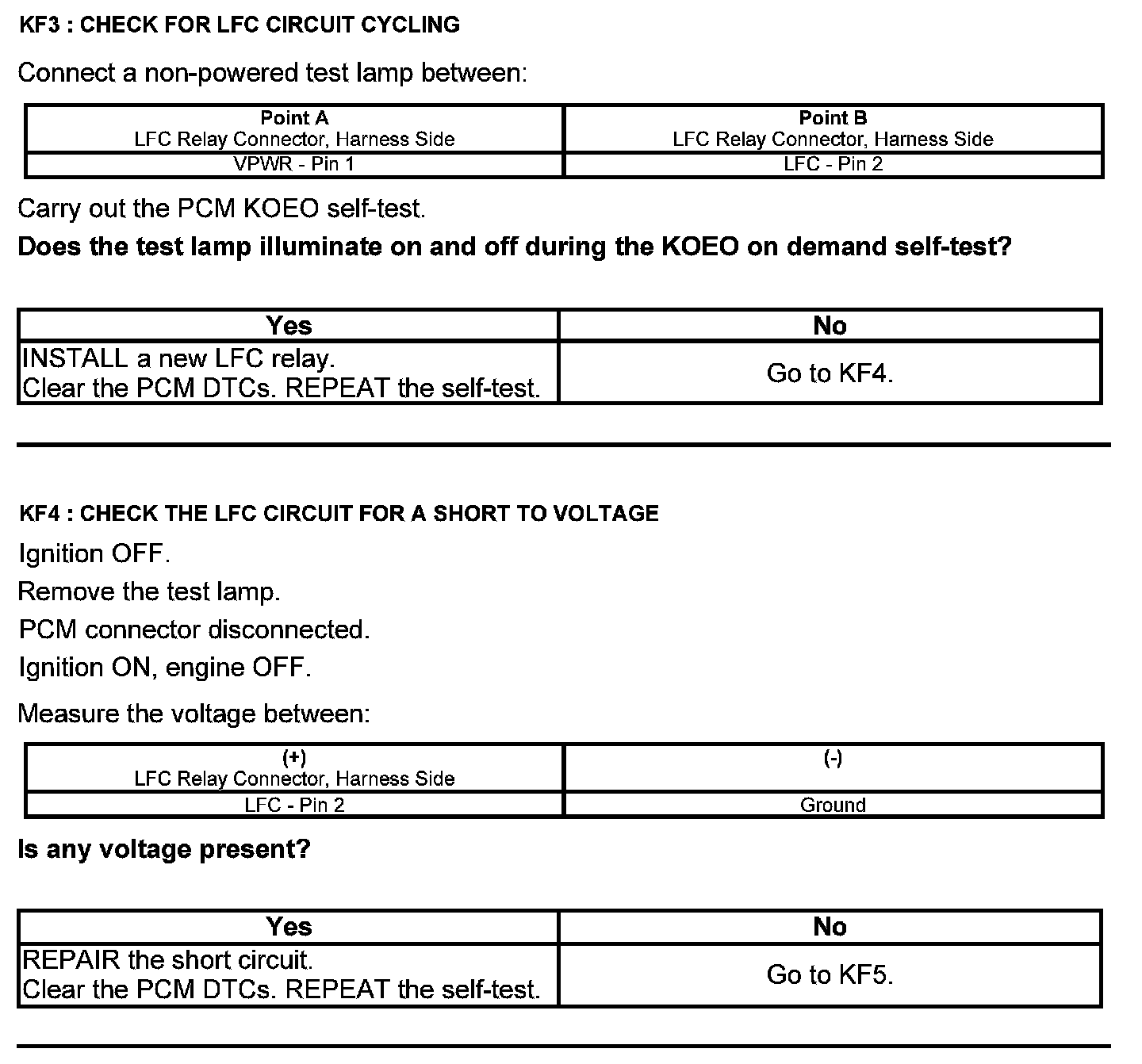

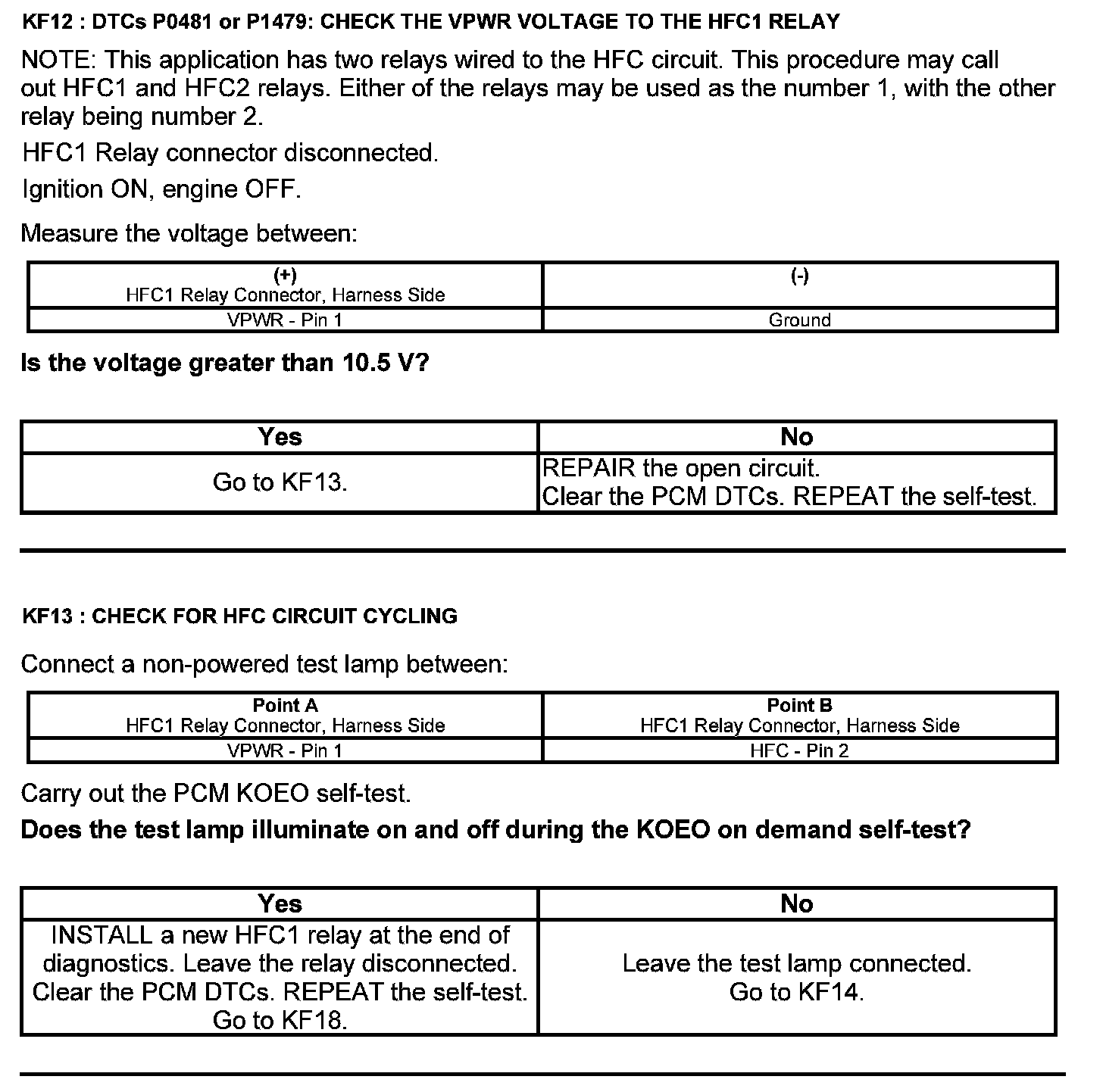

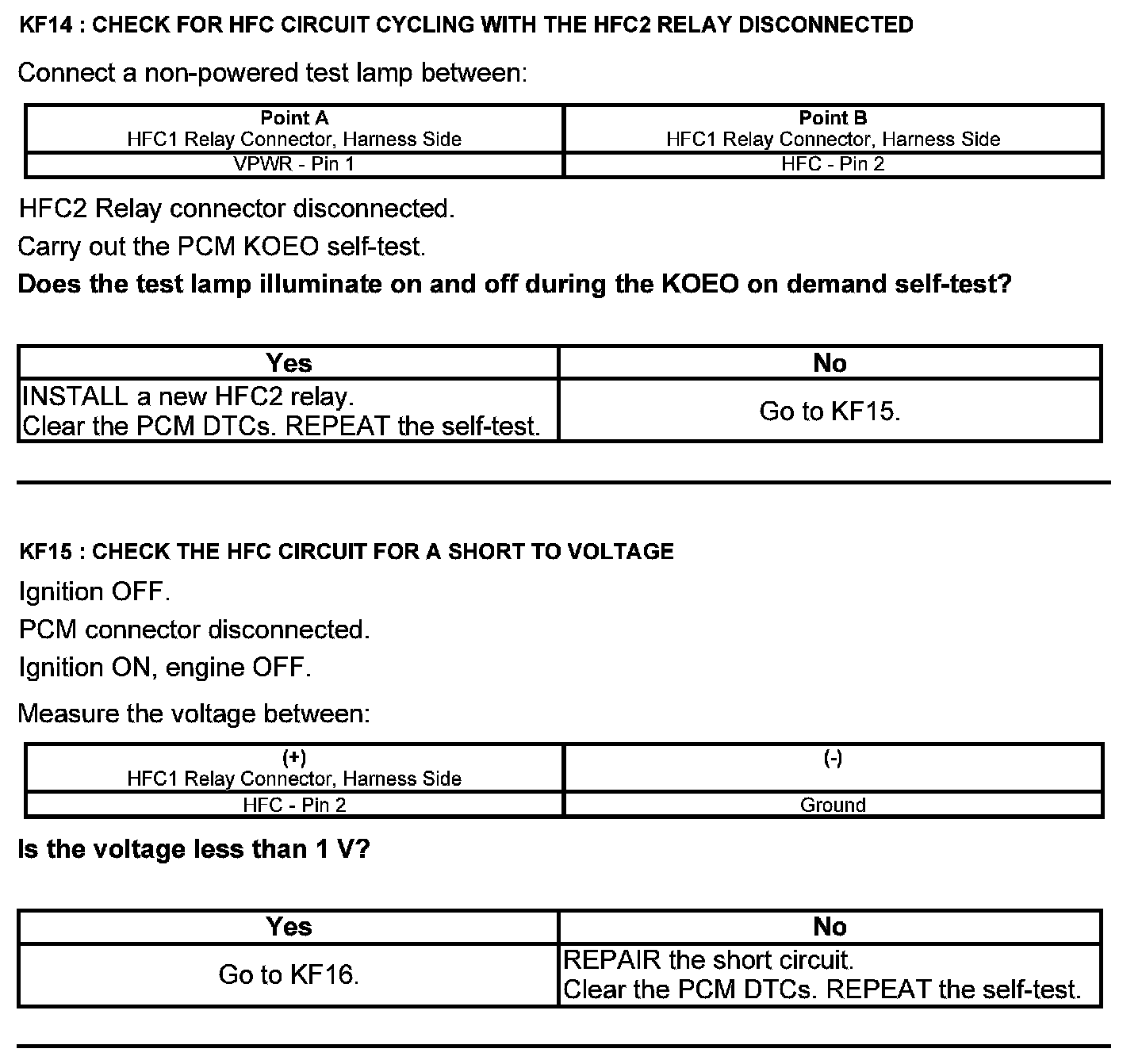

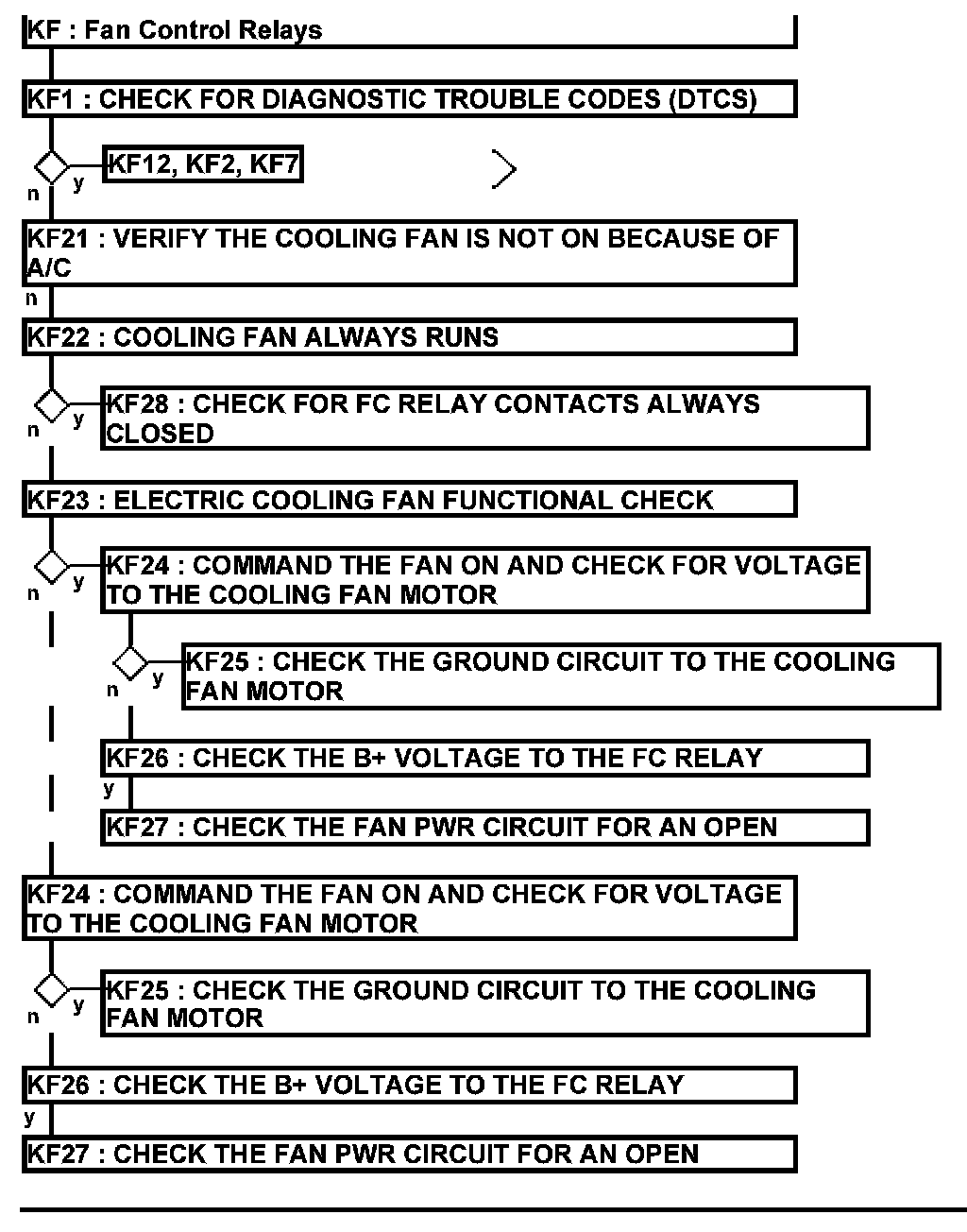

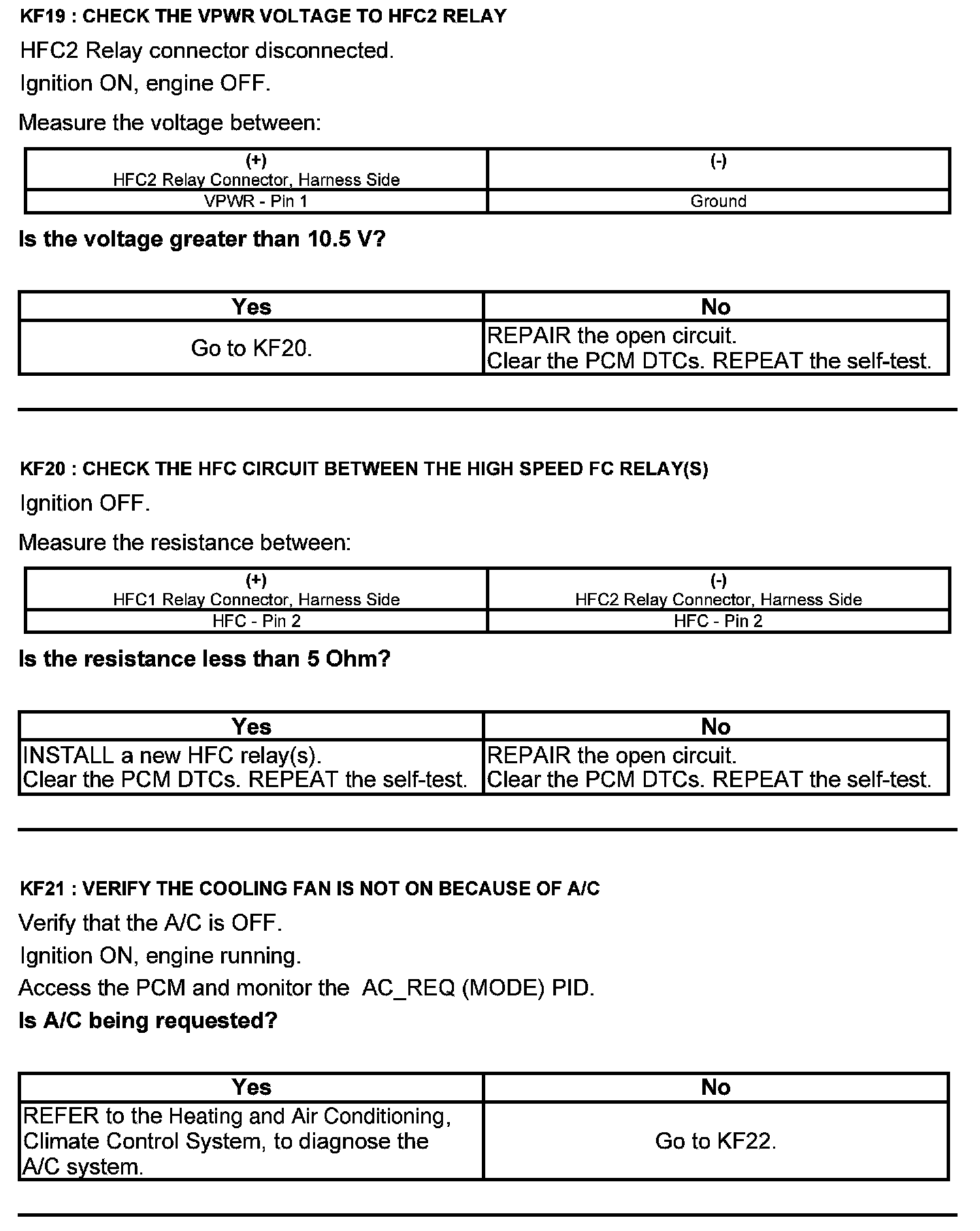

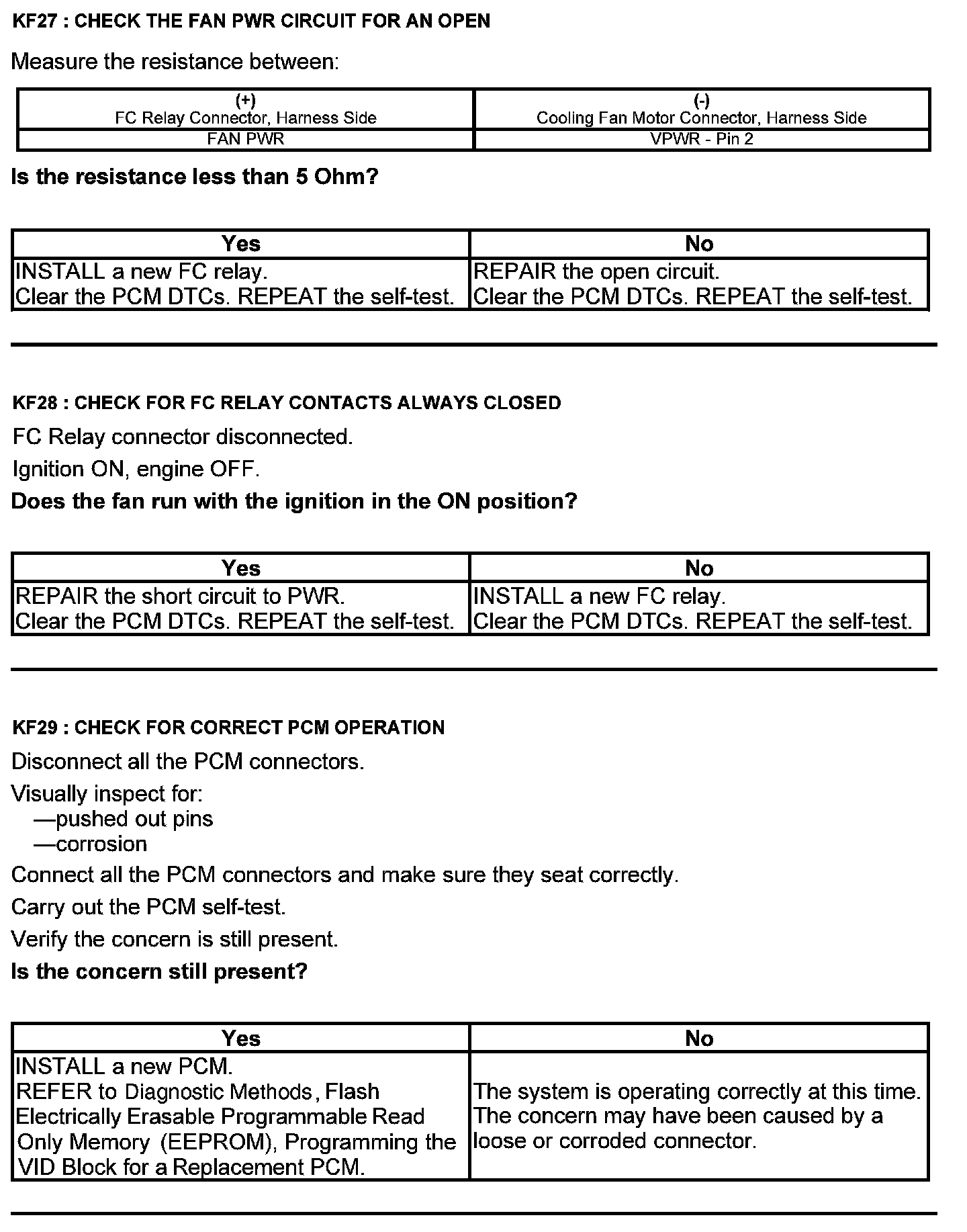

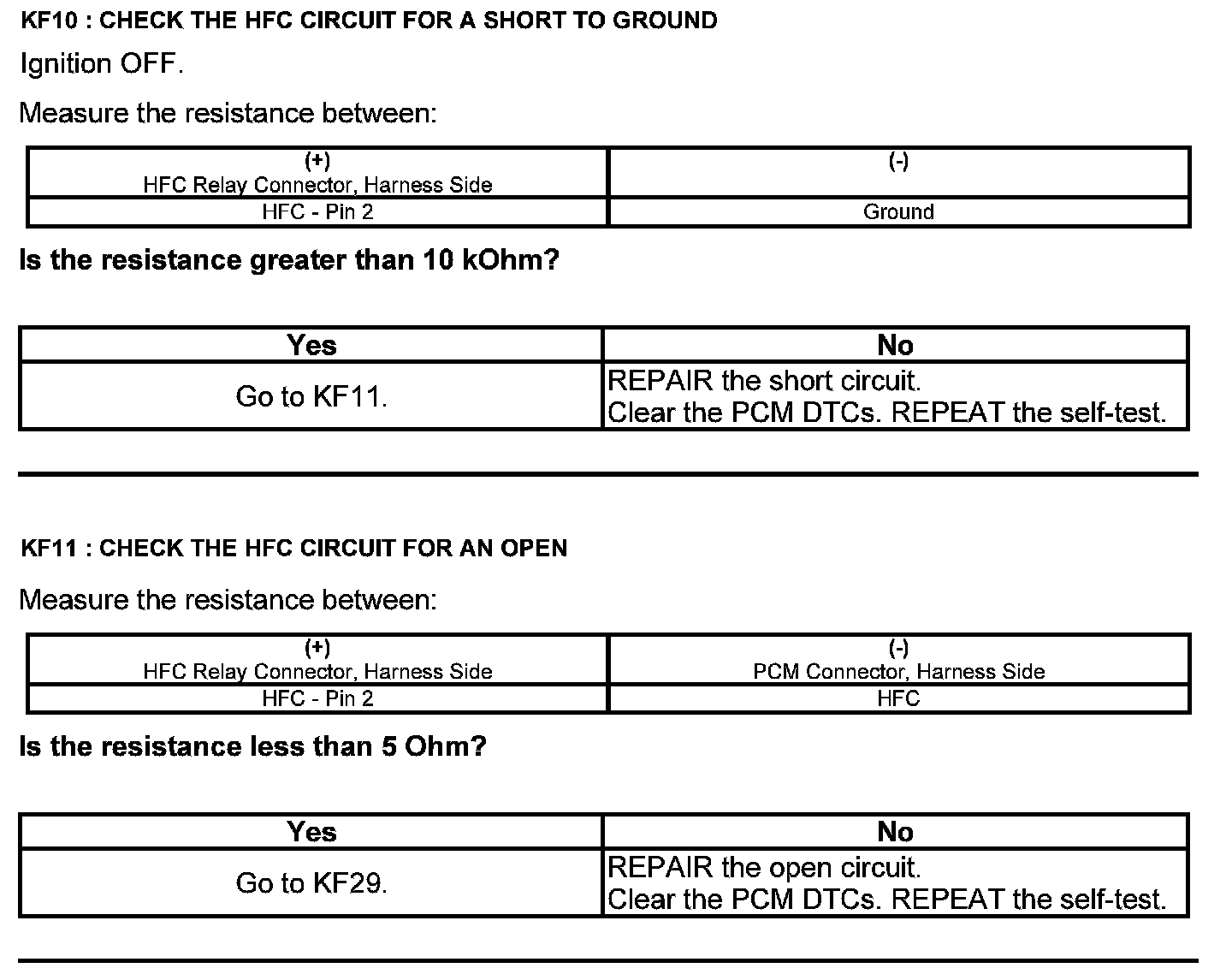

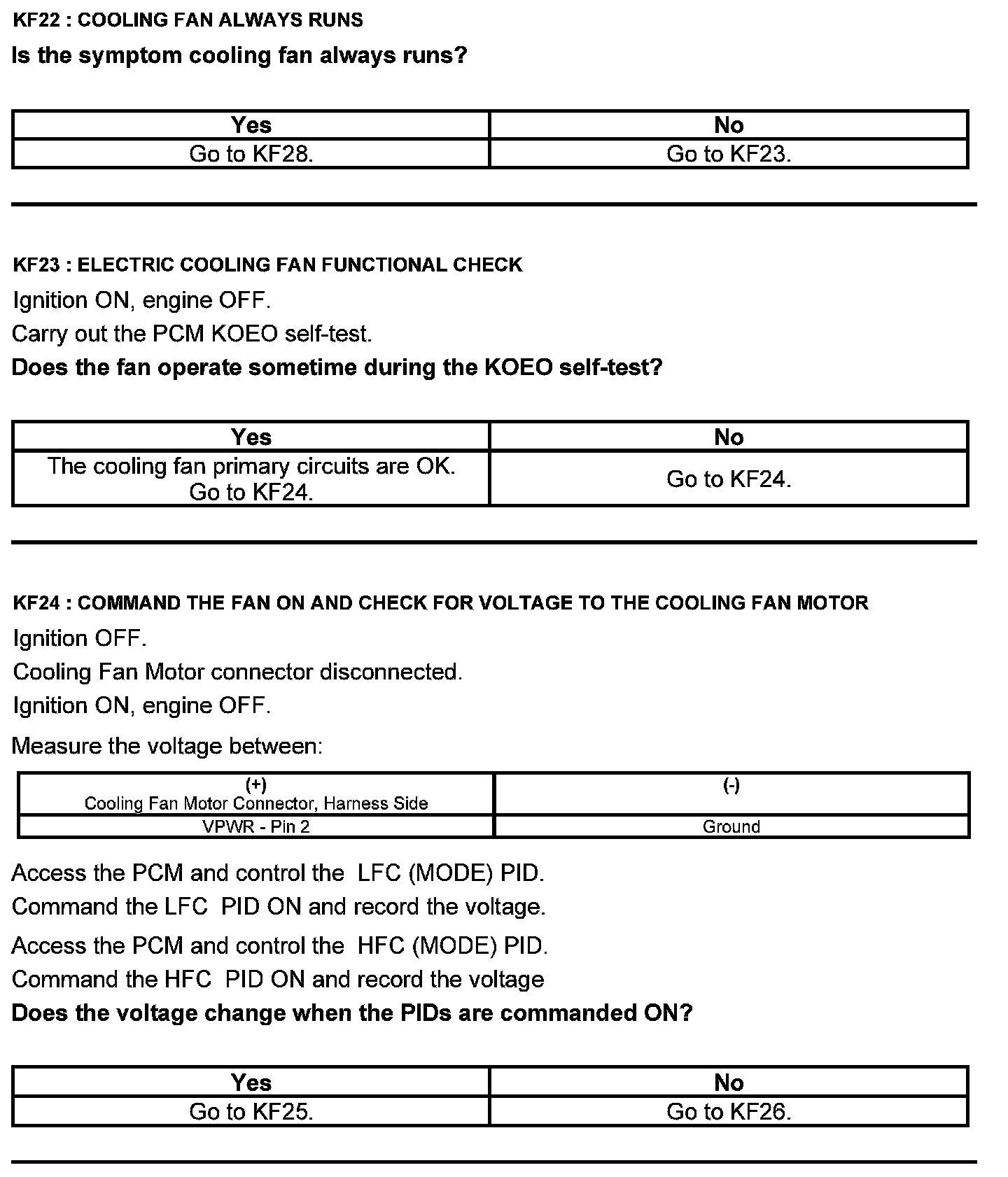

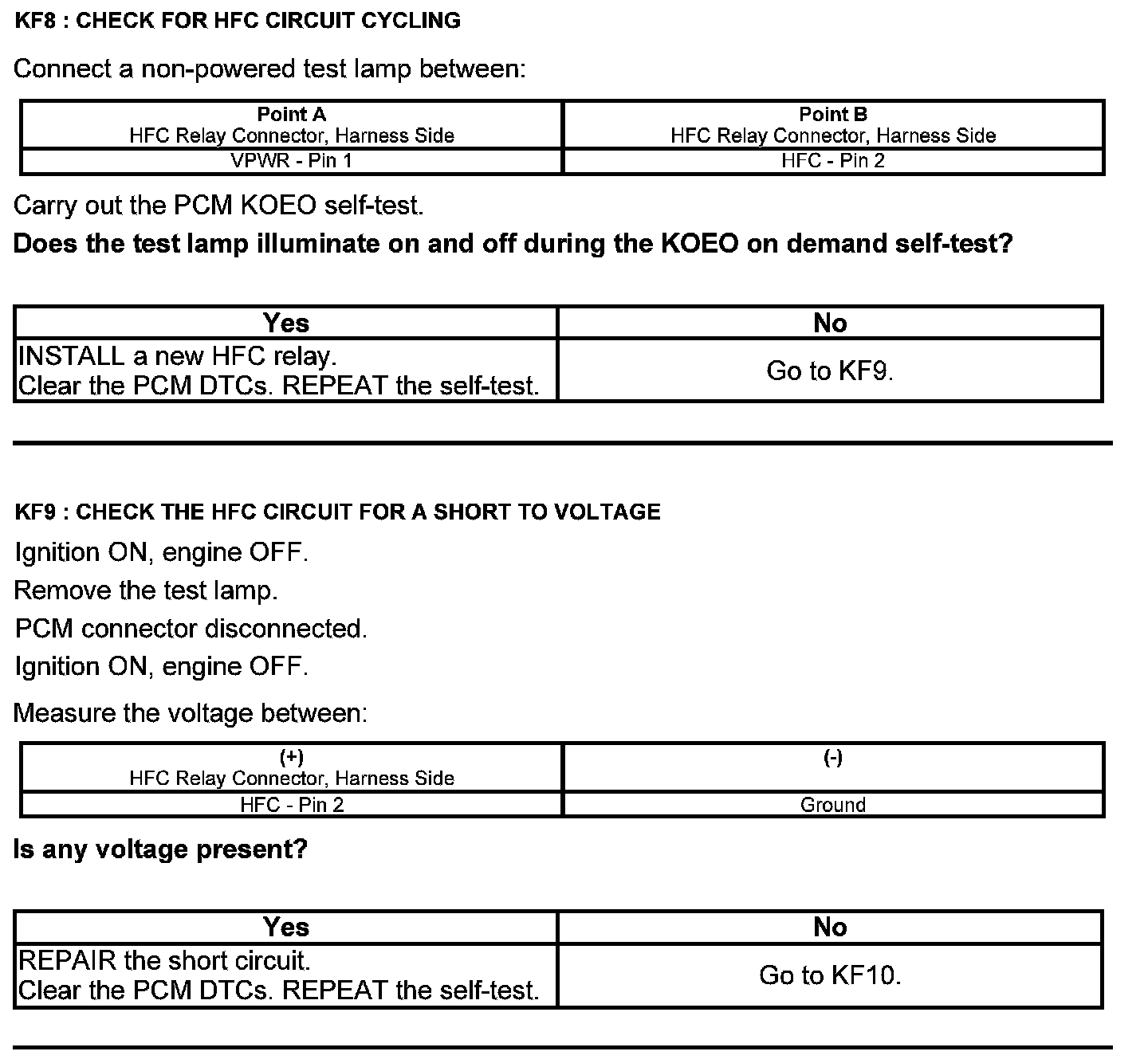

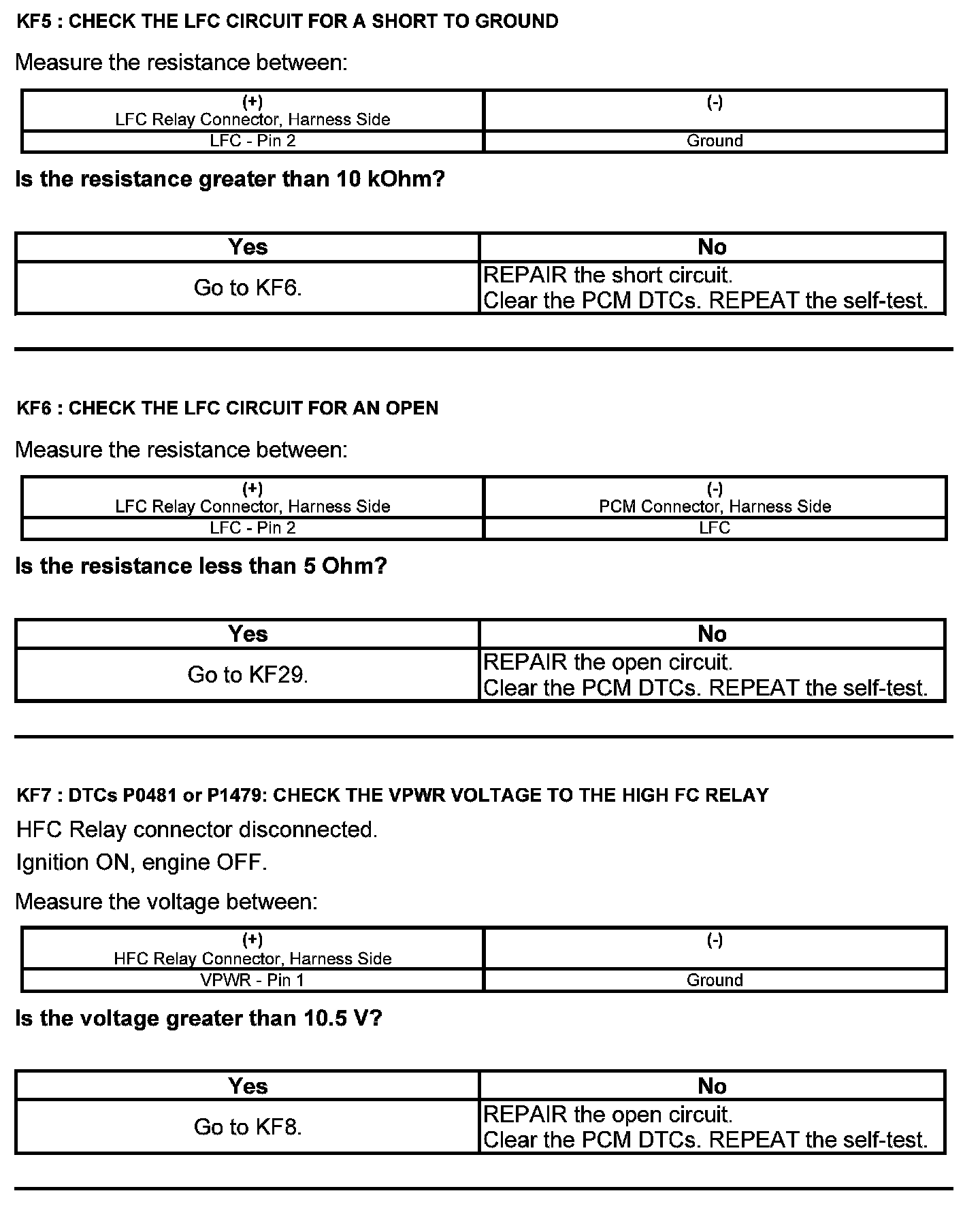

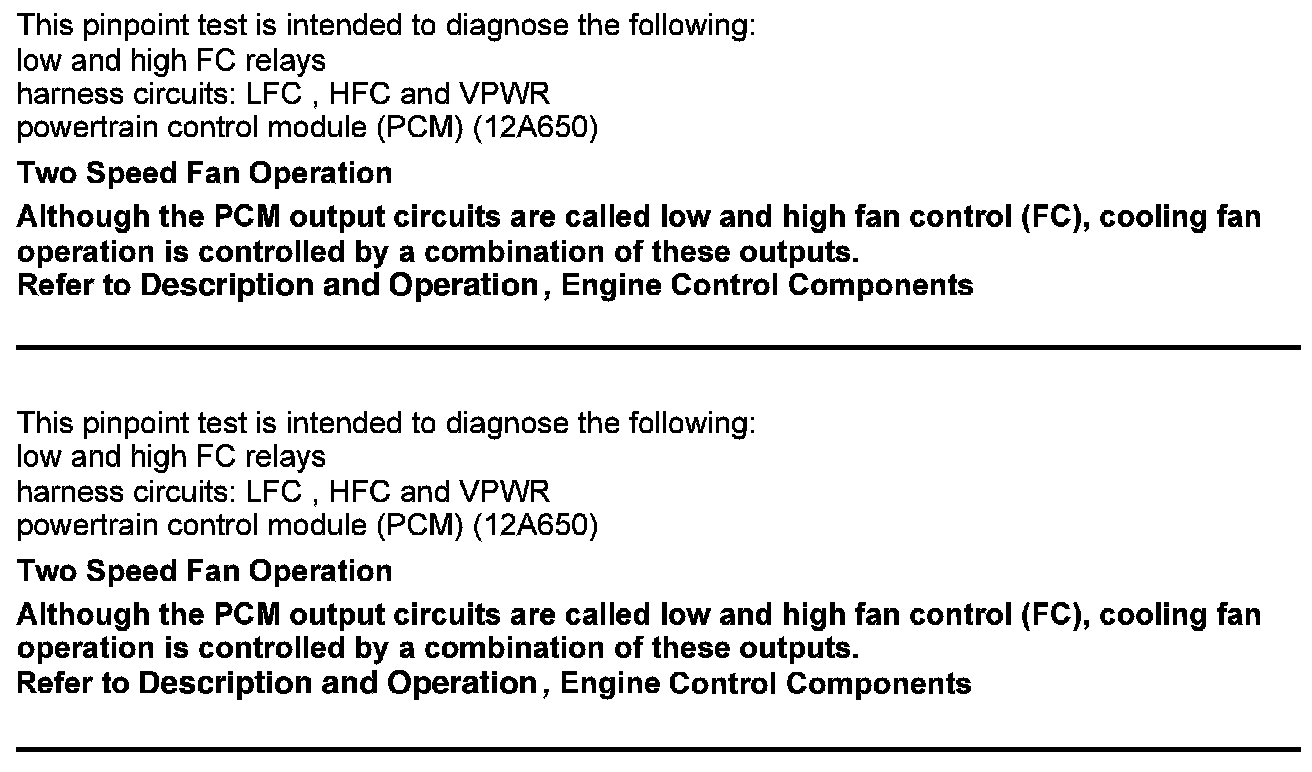

Fan Control Relays - All Others

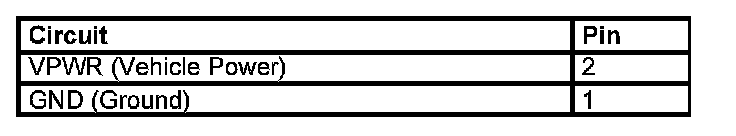

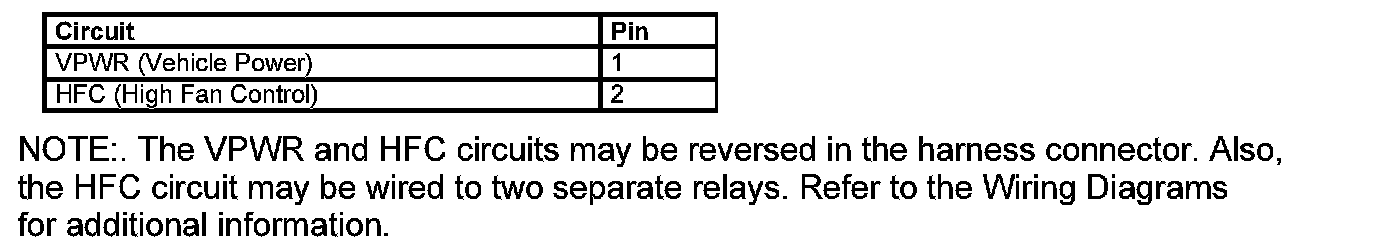

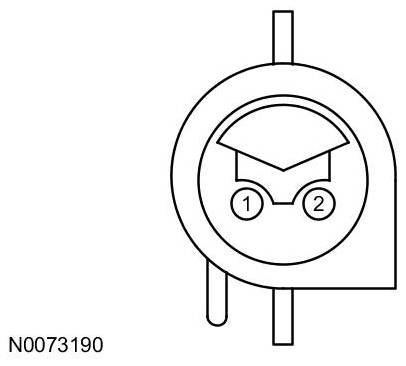

Cooling Fan Motor Connector





Harness Side

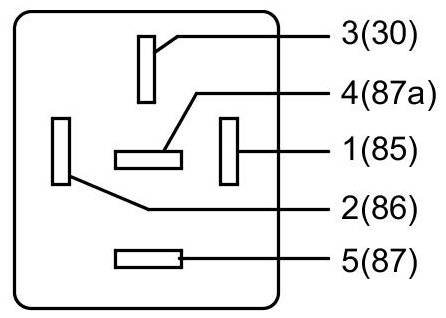

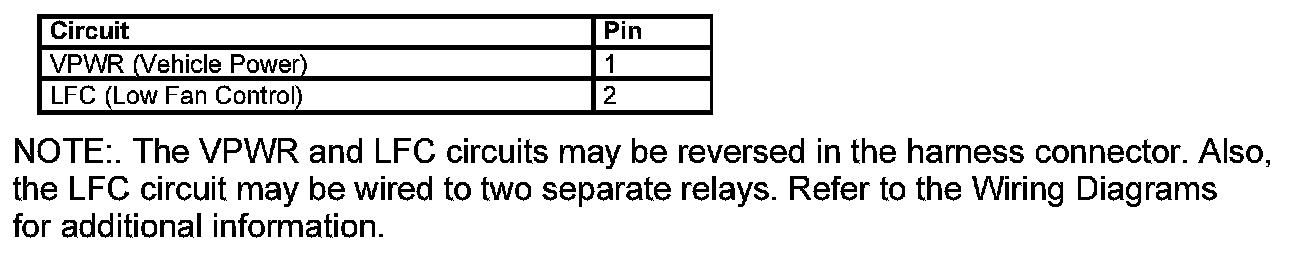

Low Fan Control (LFC) Relay Connector





Harness Side





Component side

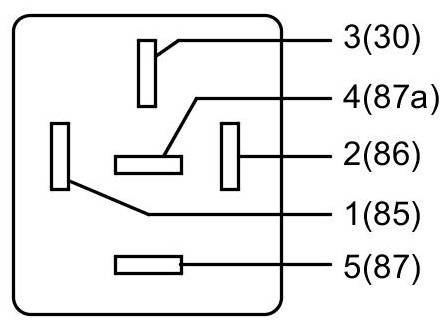

High Fan Control (HFC) Relay Connector





Harness Side





Component side
