Manual Transmission

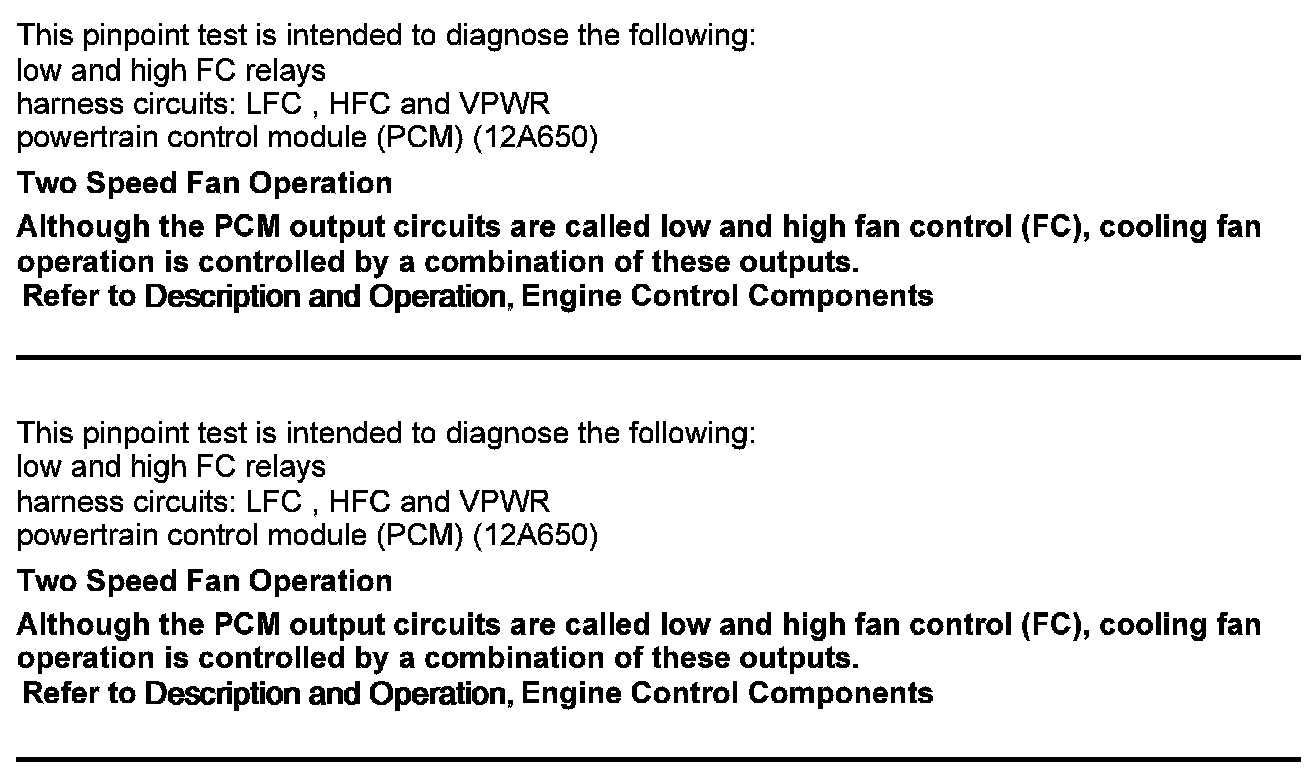

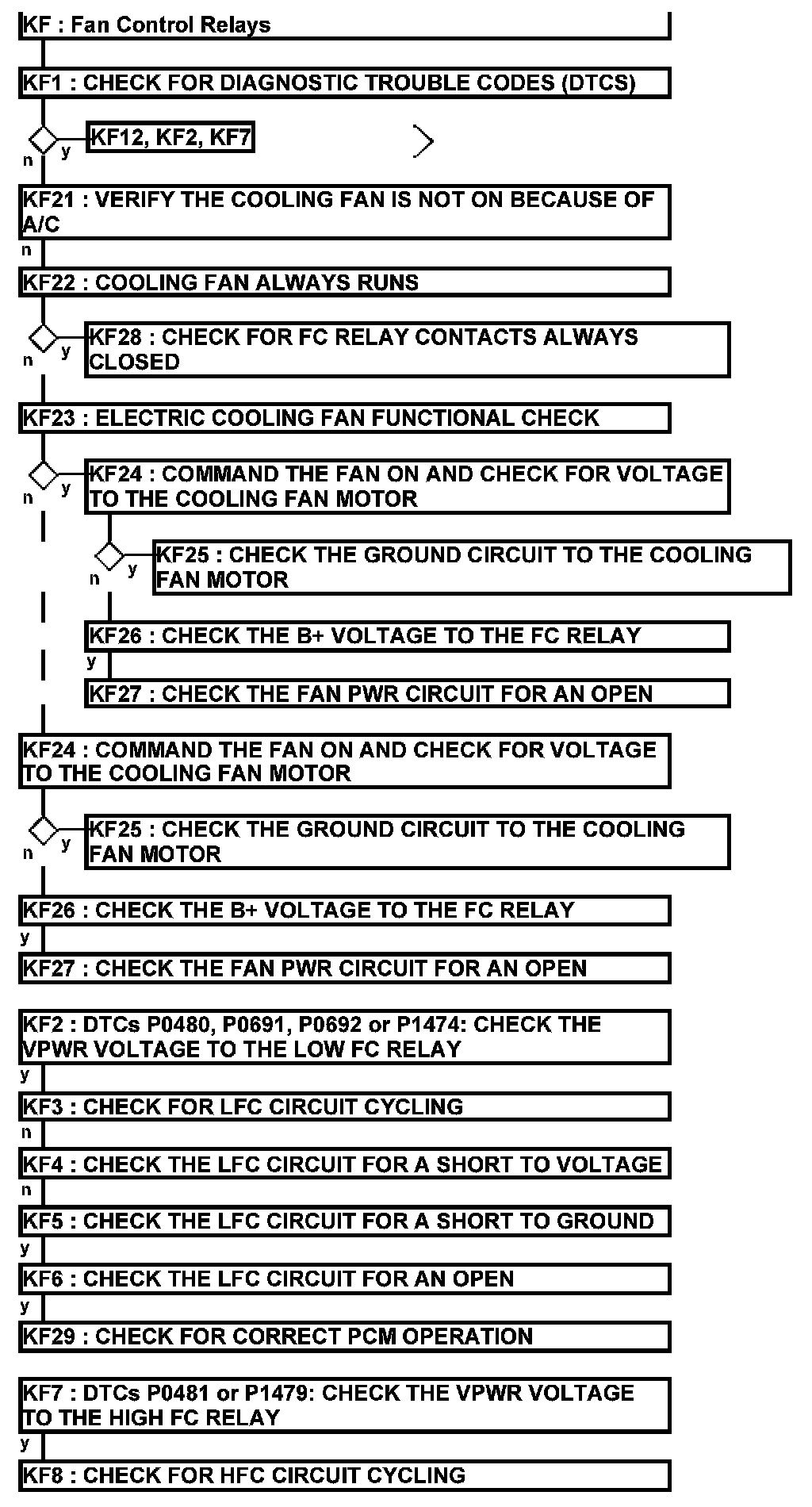

Fan Control Relays - Manual Transmission

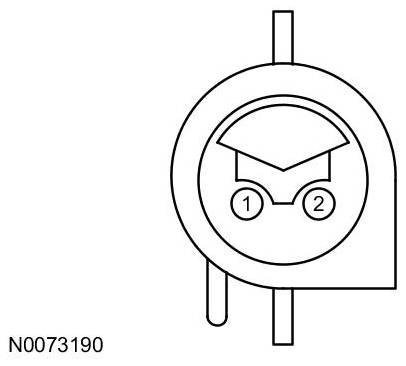

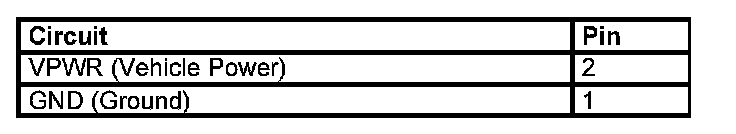

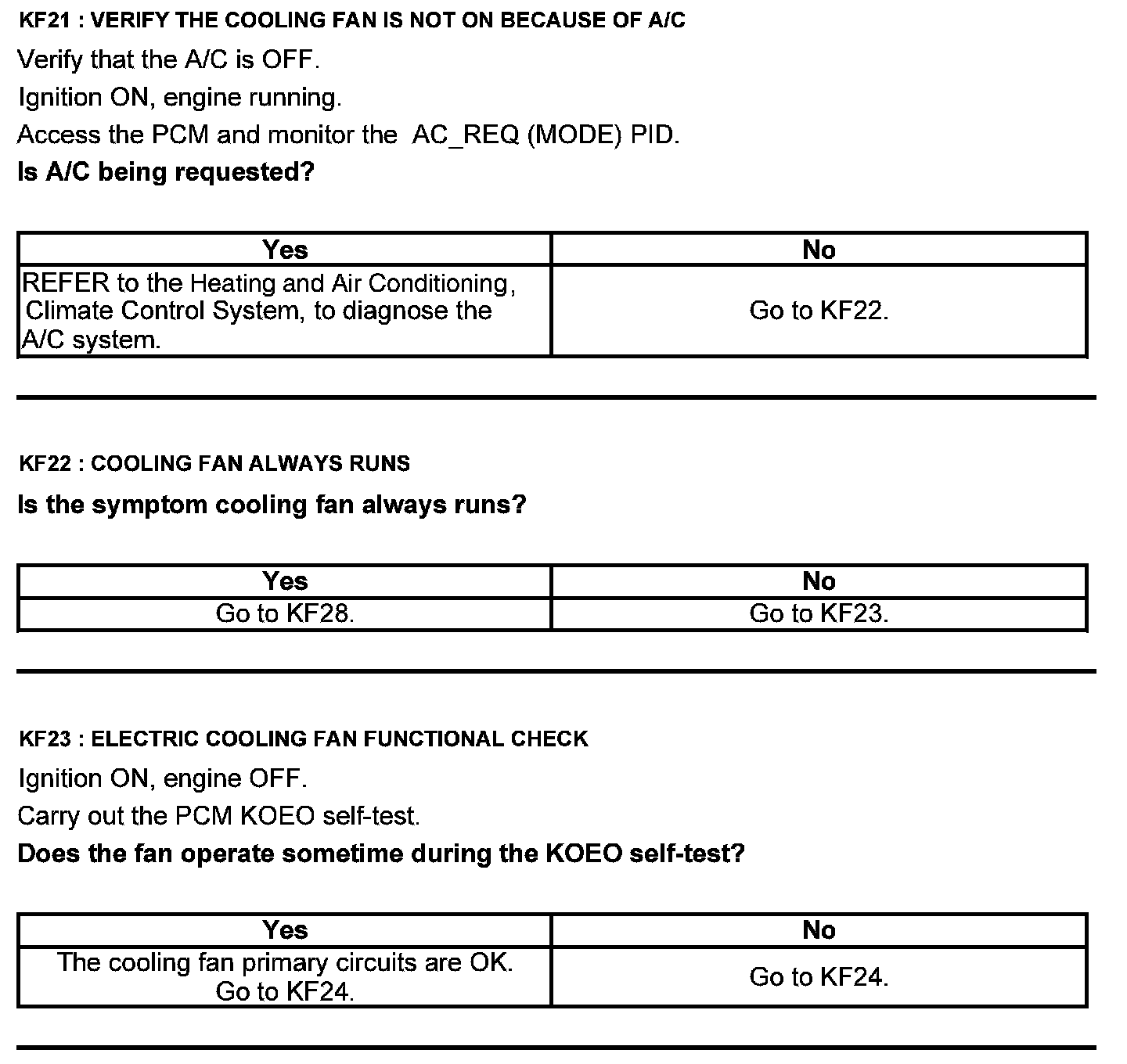

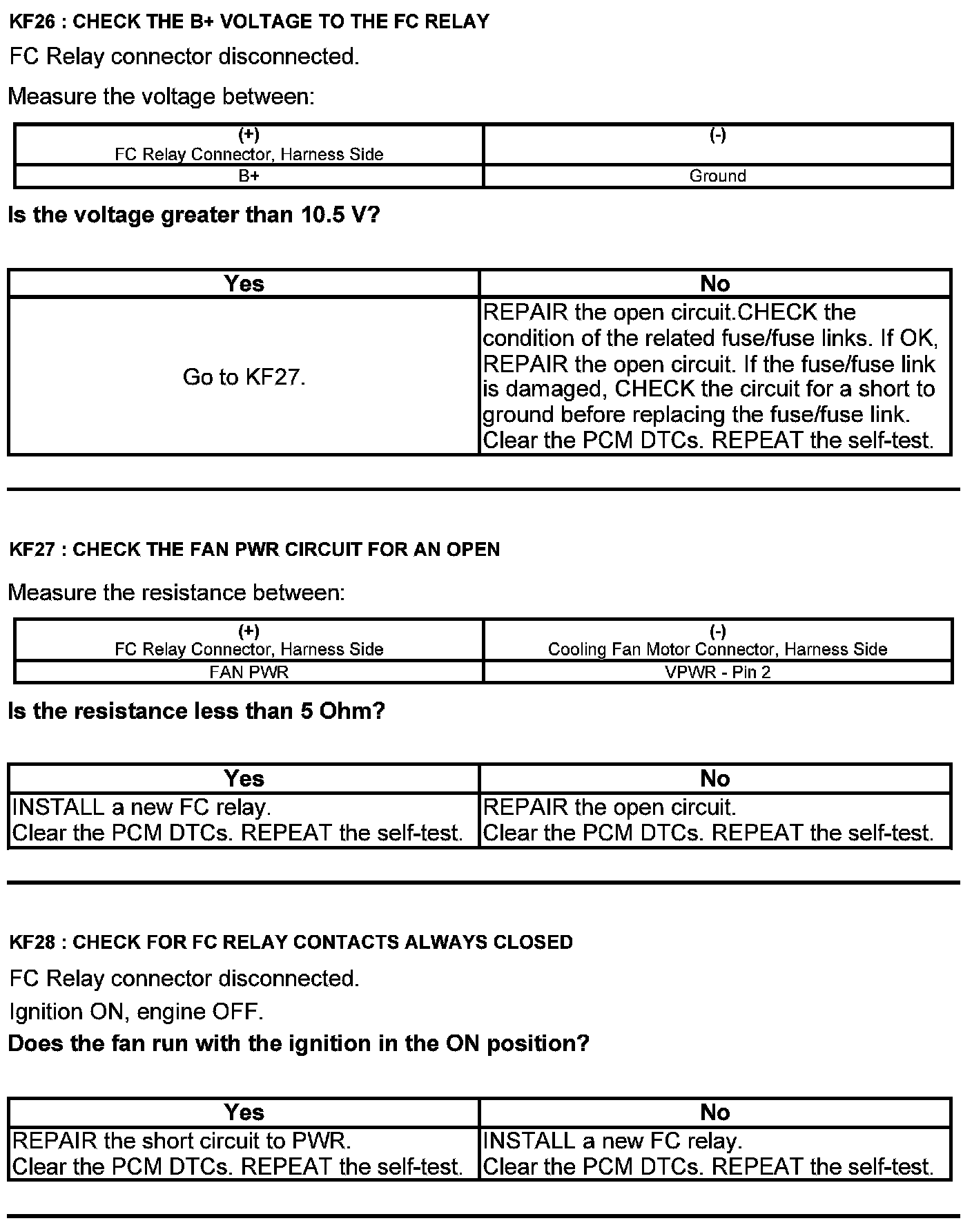

Cooling Fan Motor Connector
Harness Side

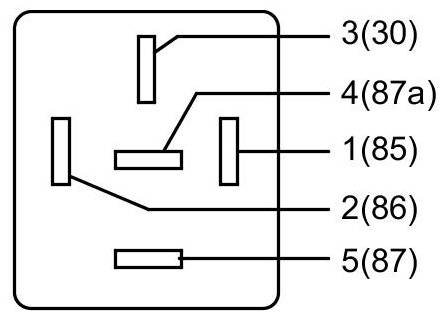

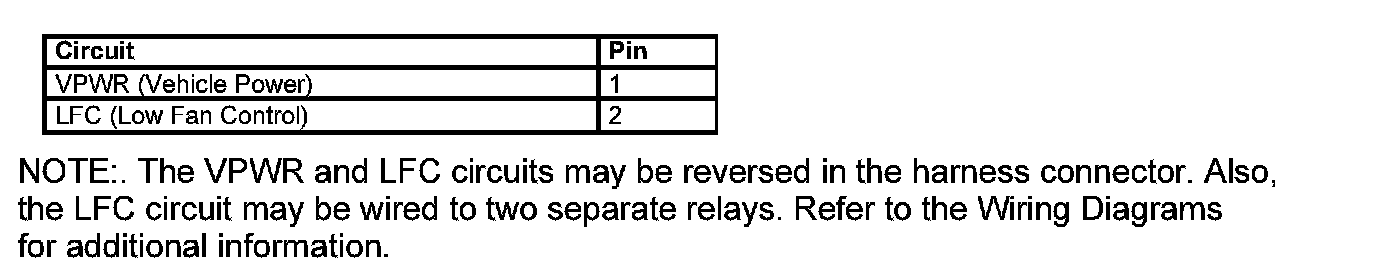

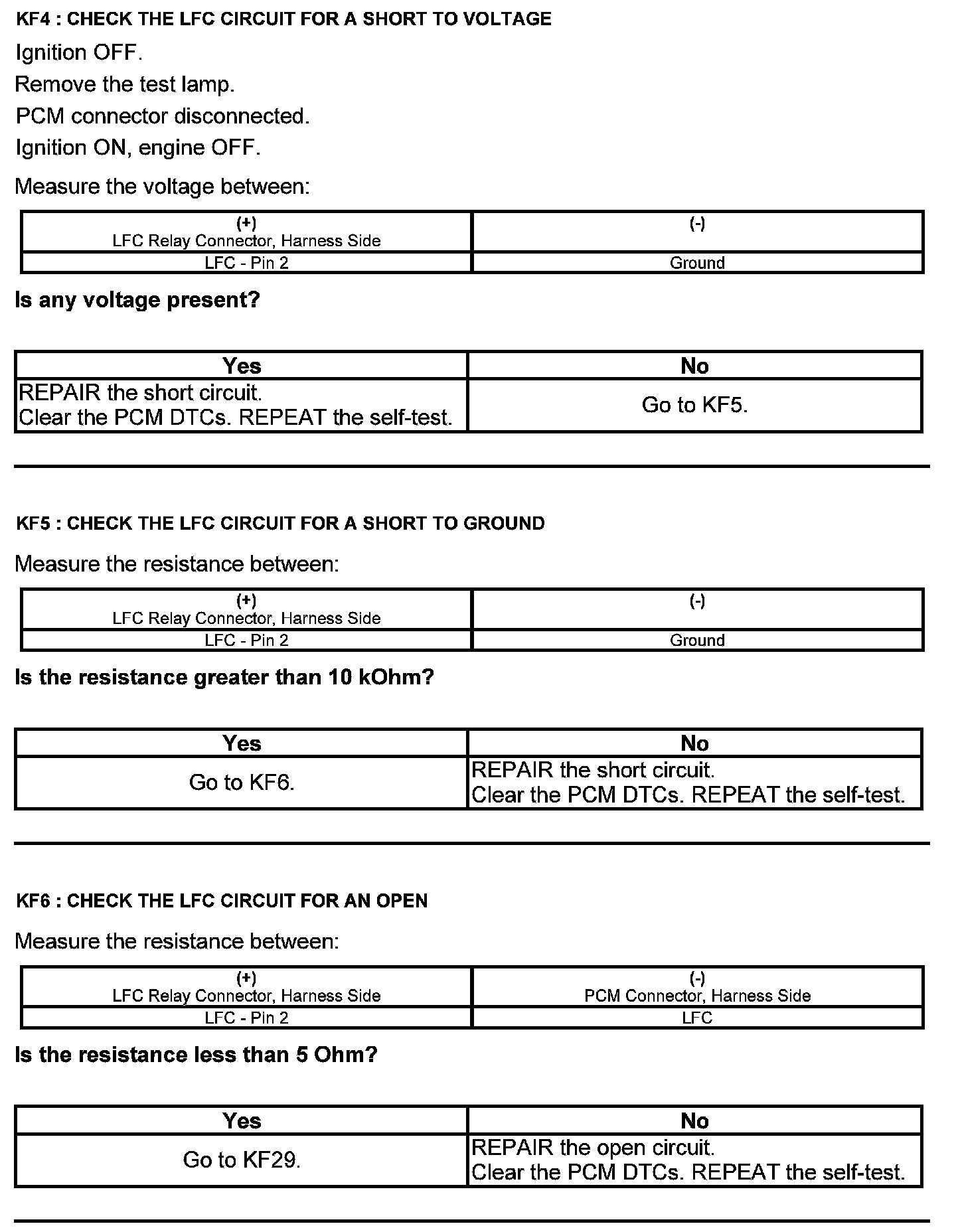

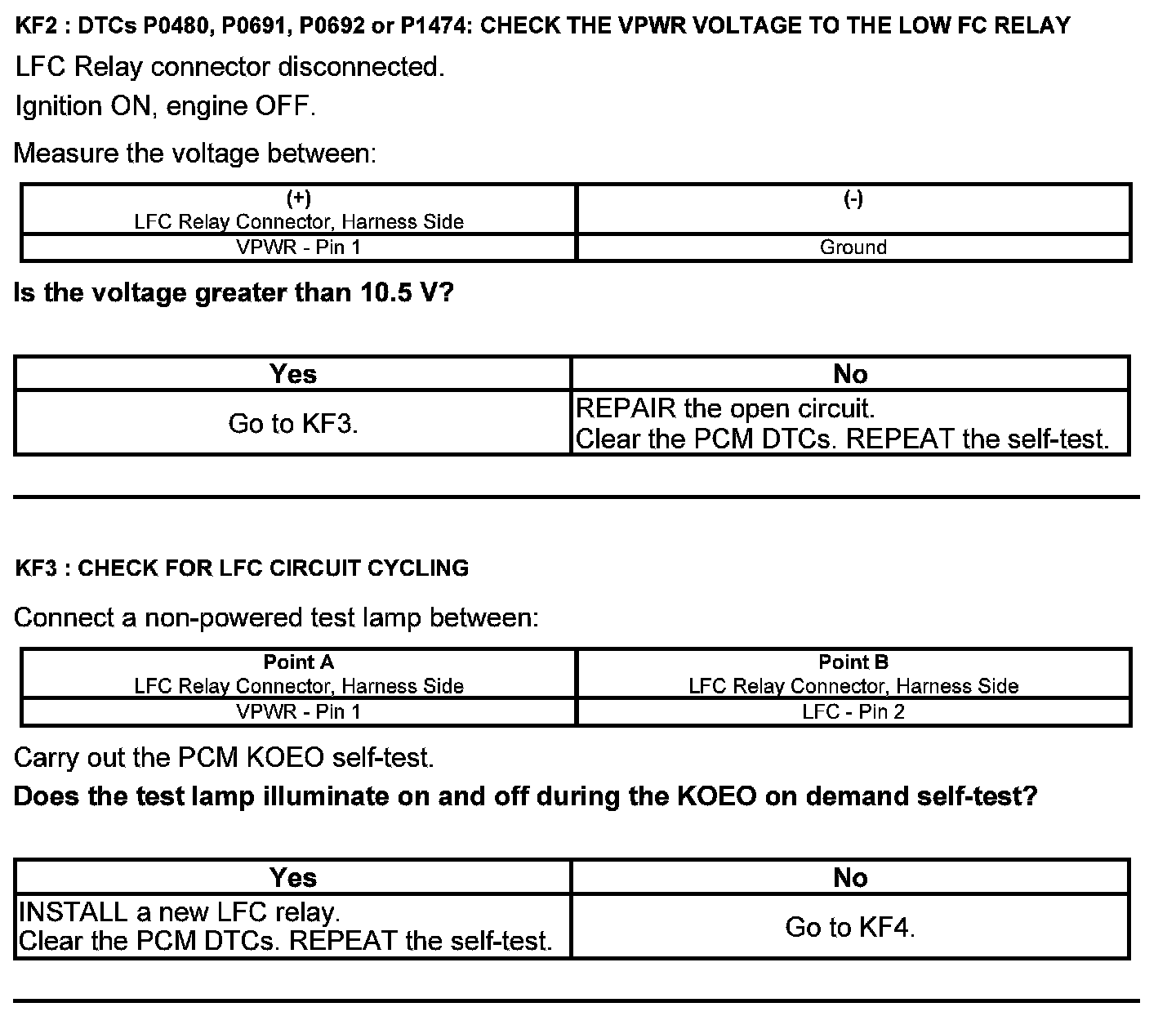

Low Fan Control (LFC) Relay Connector
Harness Side

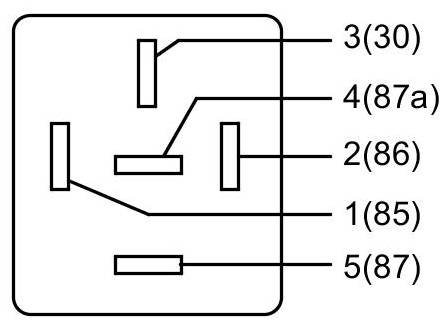

Component side

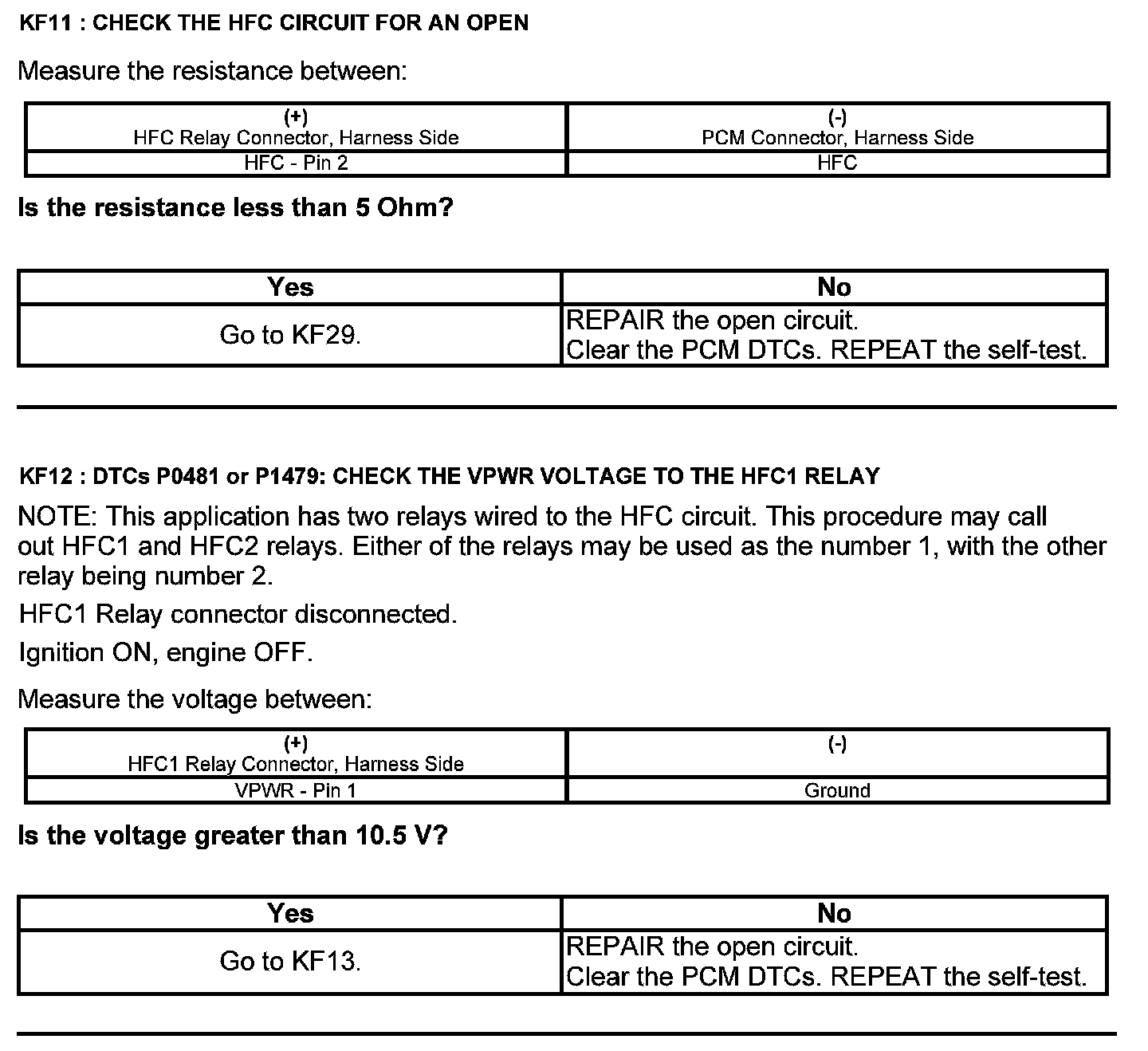

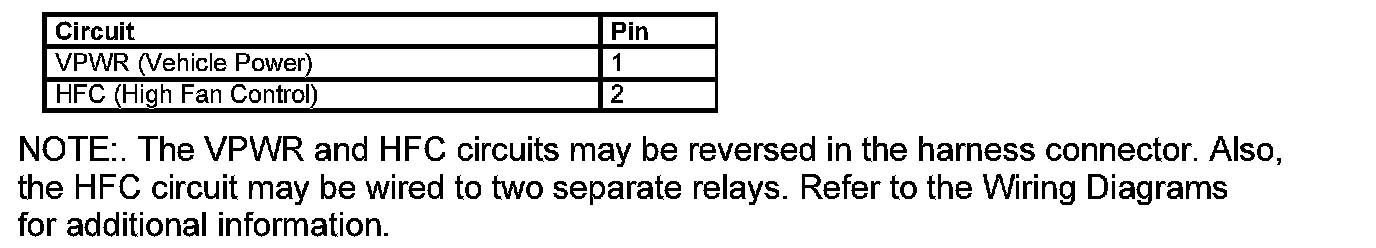

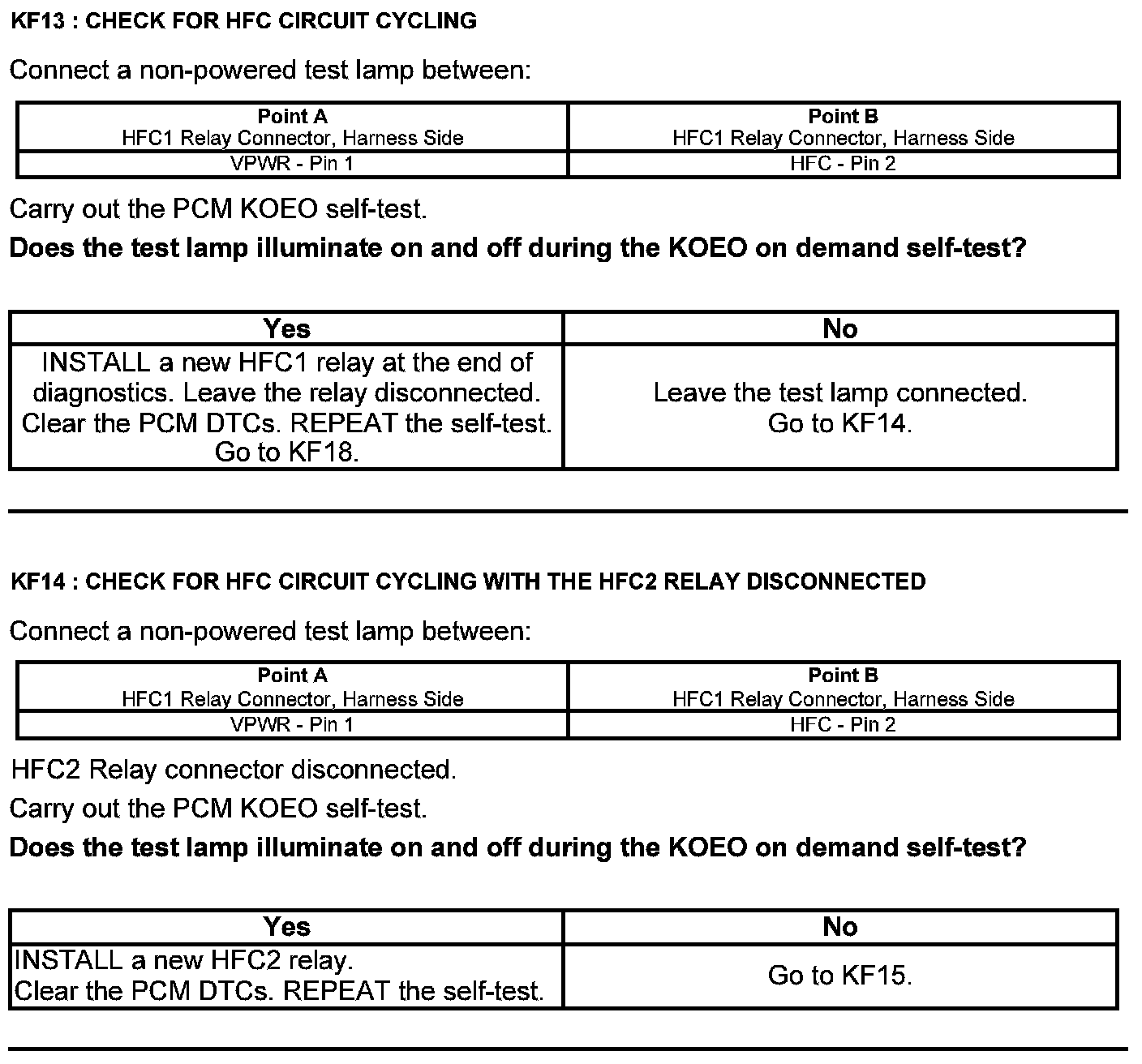

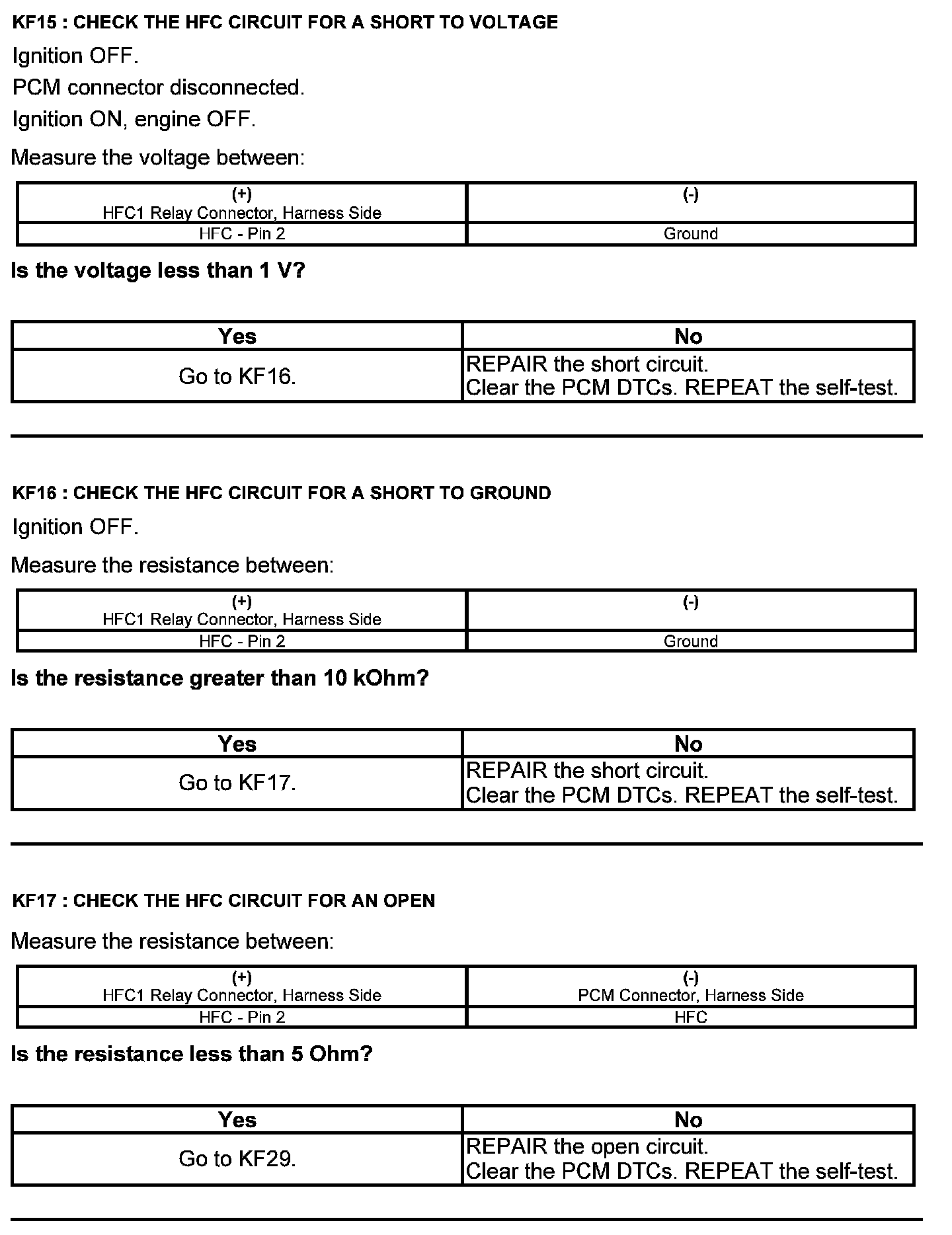

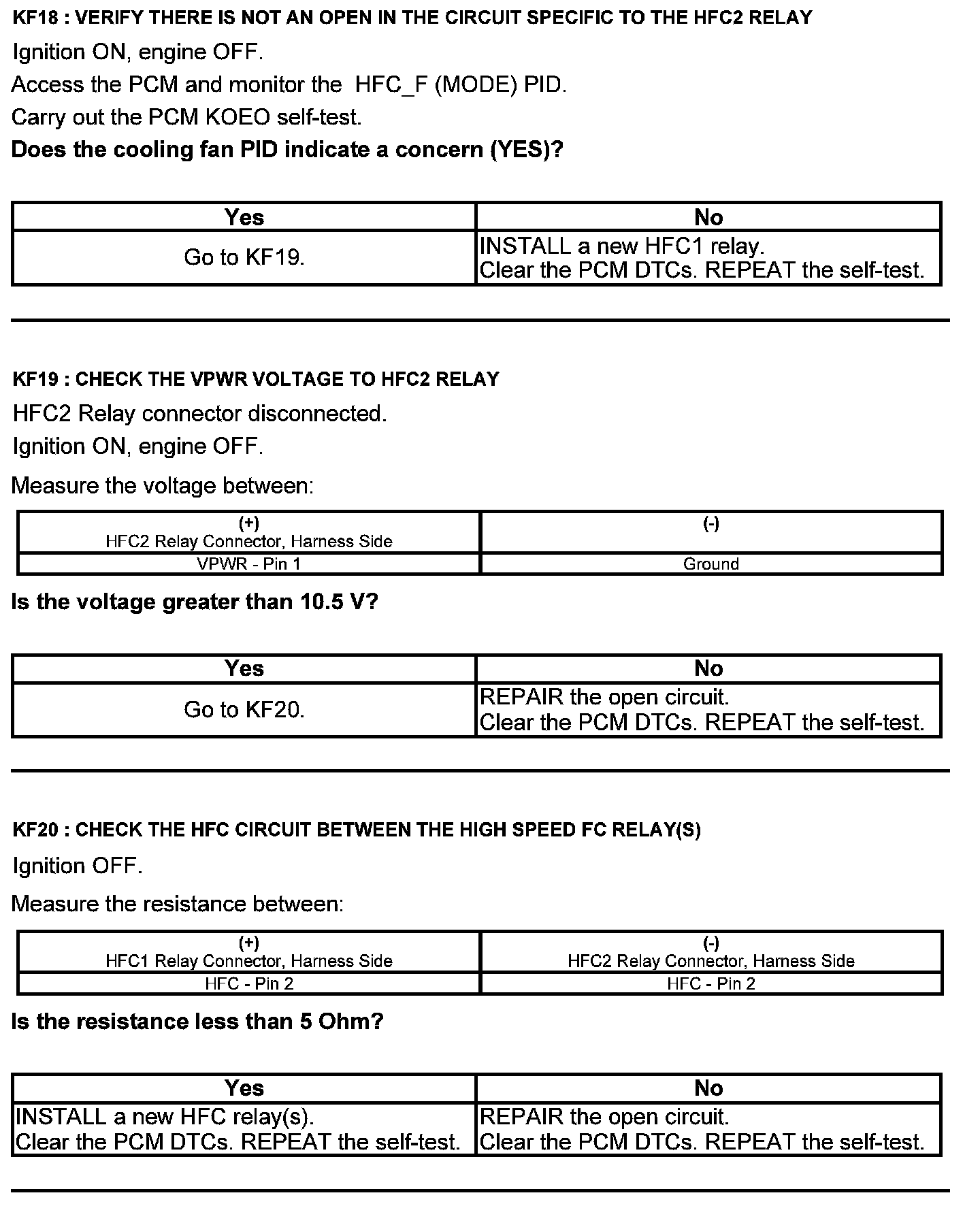

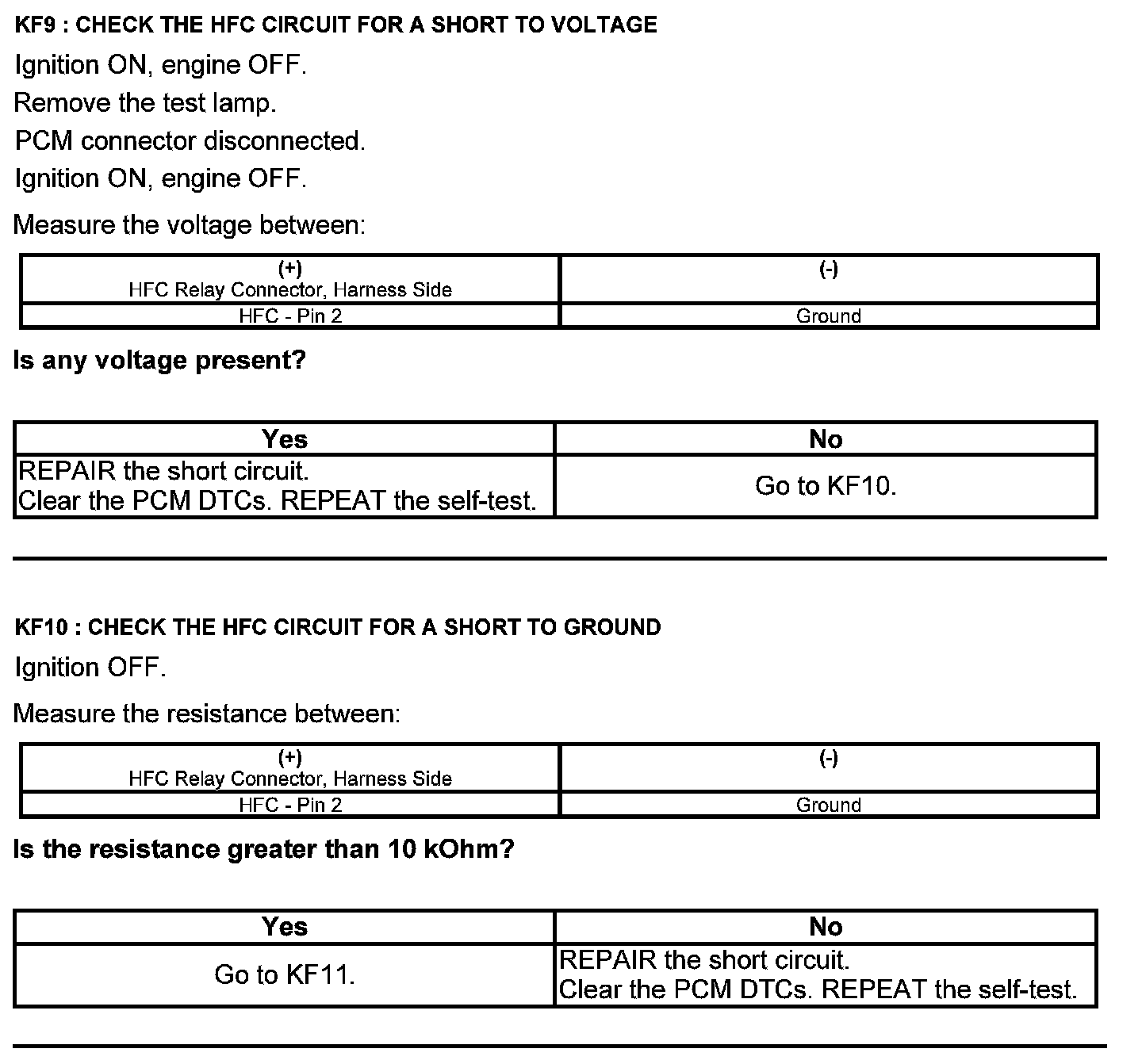

High Fan Control (HFC) Relay Connector
Harness Side
Component side

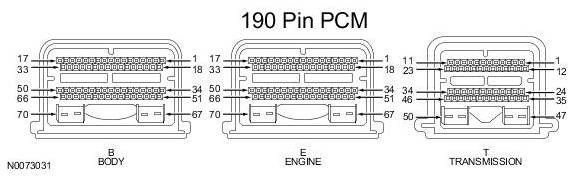

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
