Home >> Ford >> 2012 >> Escape 2WD L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test KG: Fuel Injector >> Automatic Transmission
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Automatic Transmission

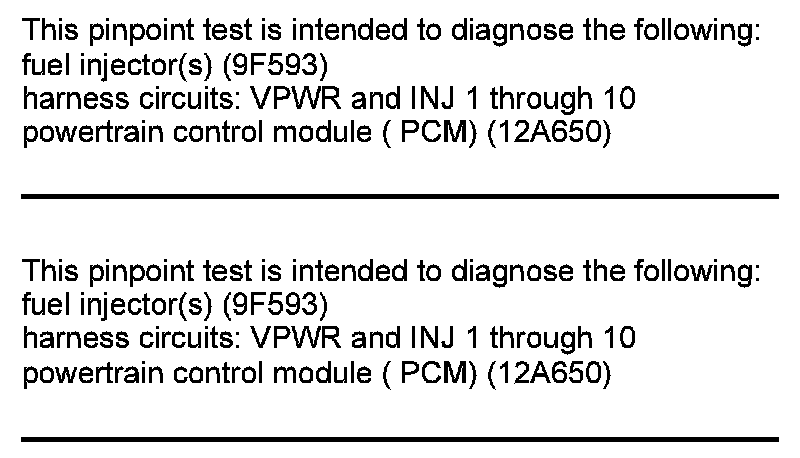

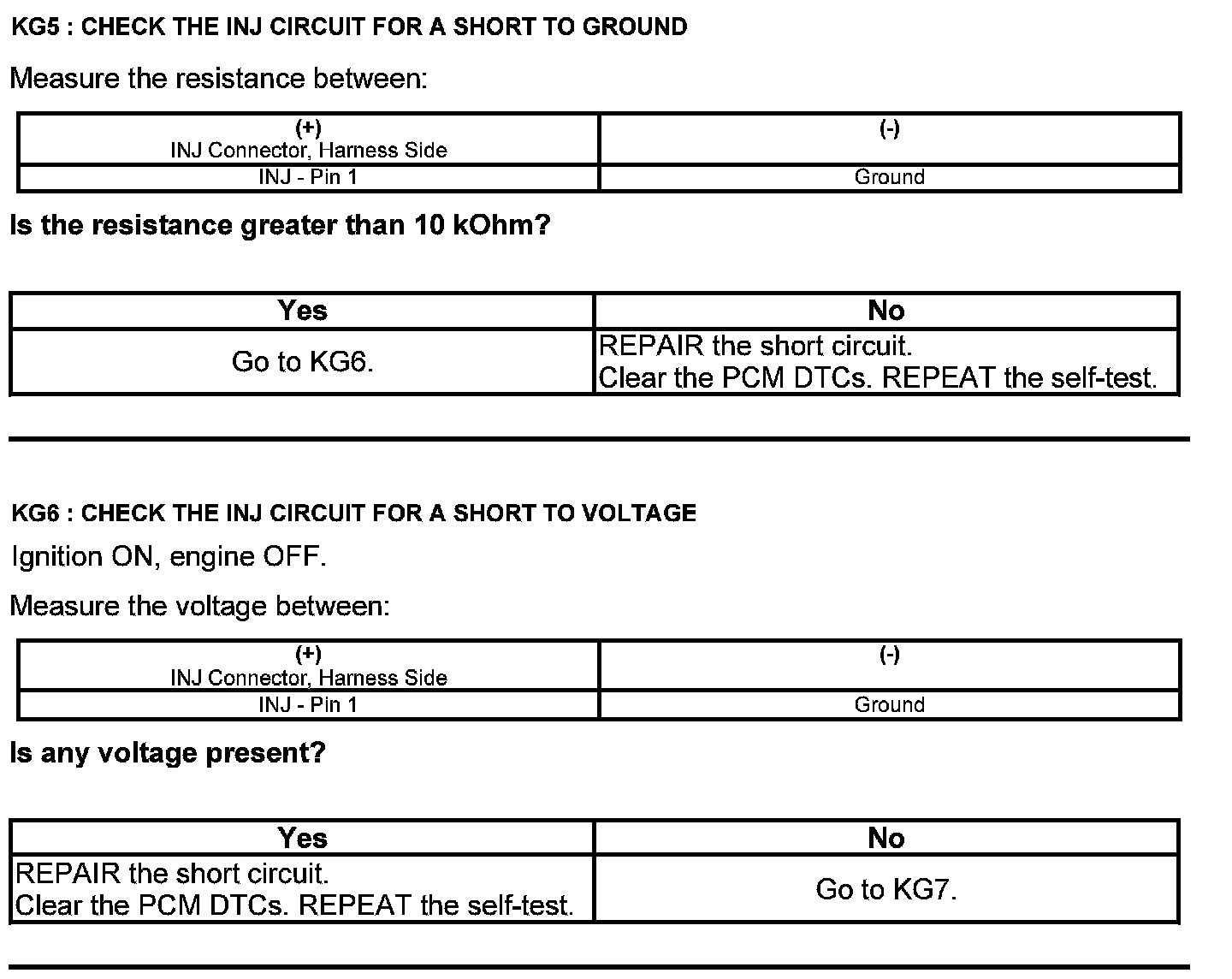

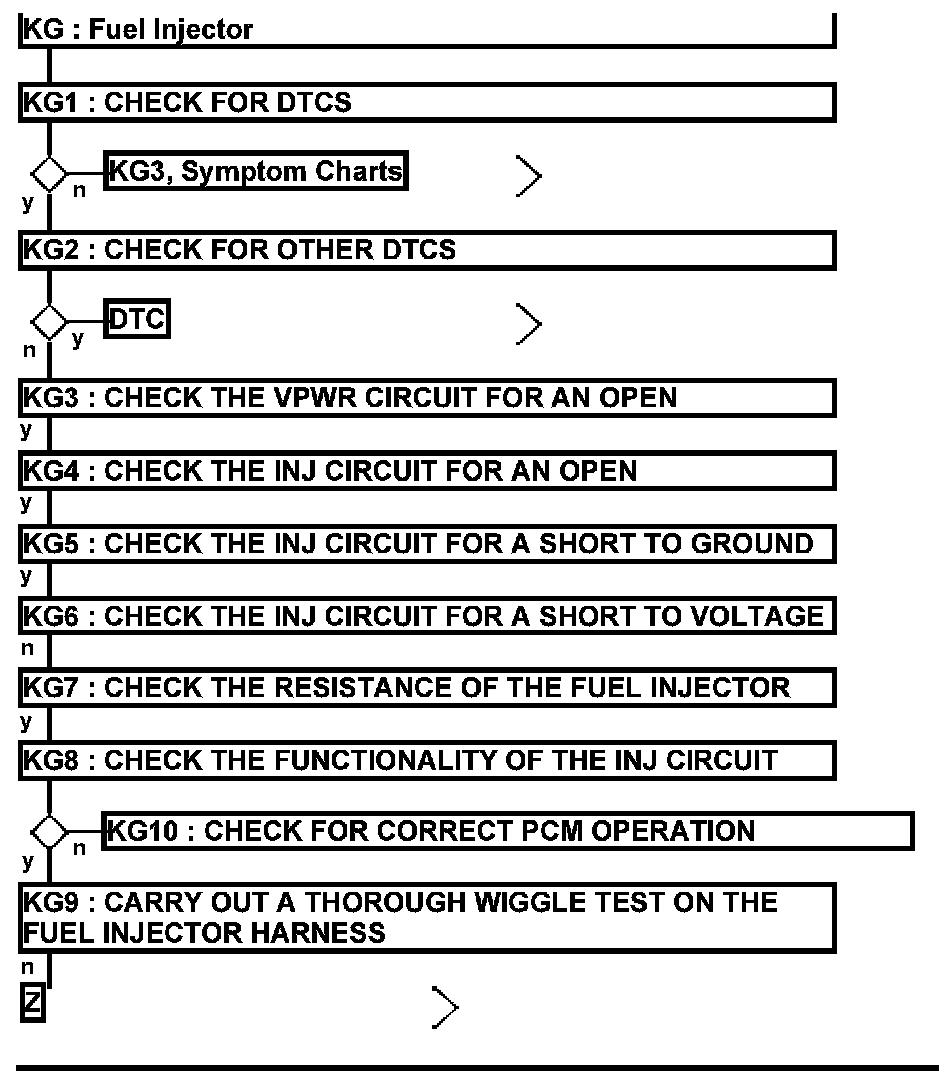

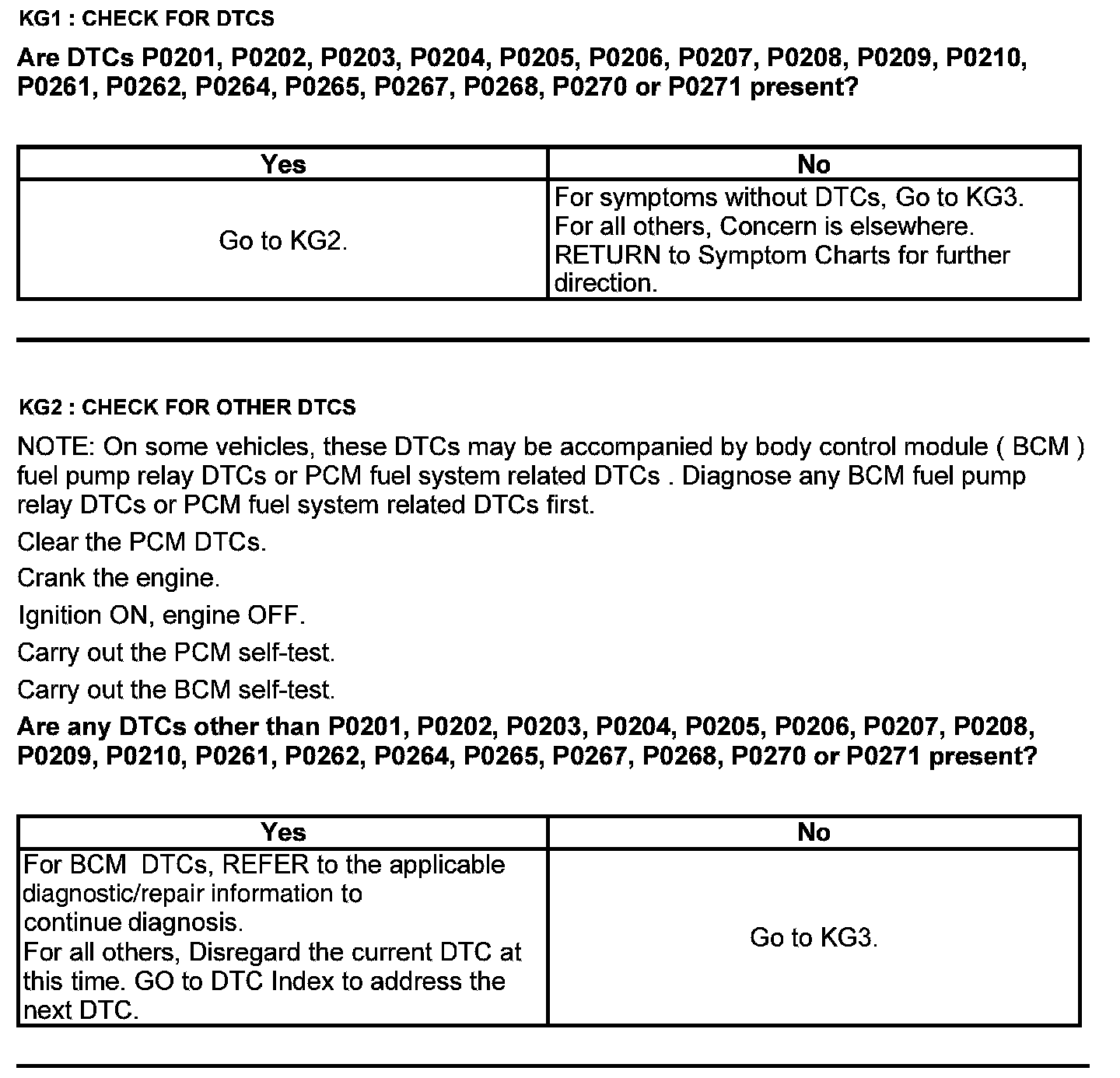

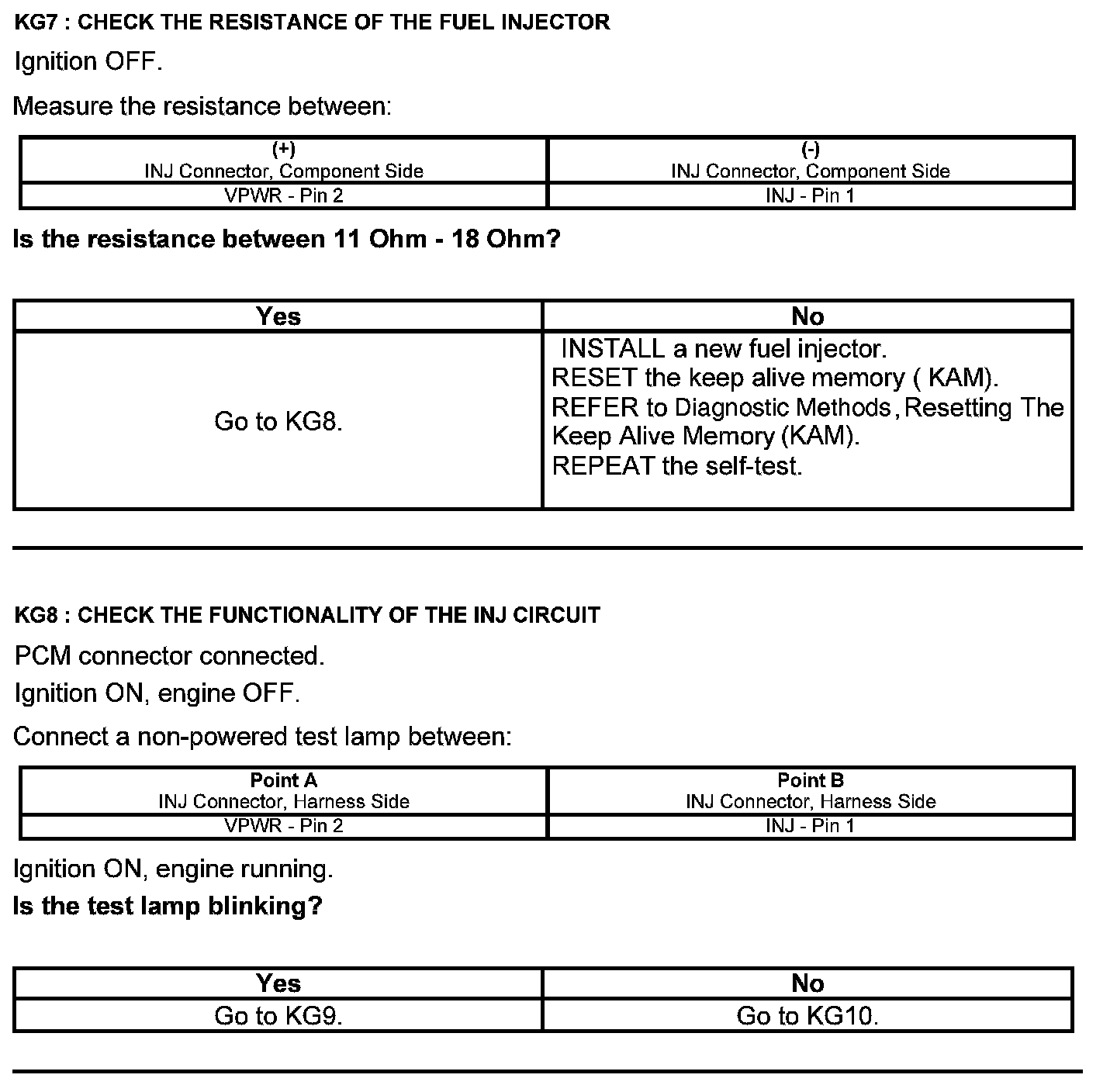

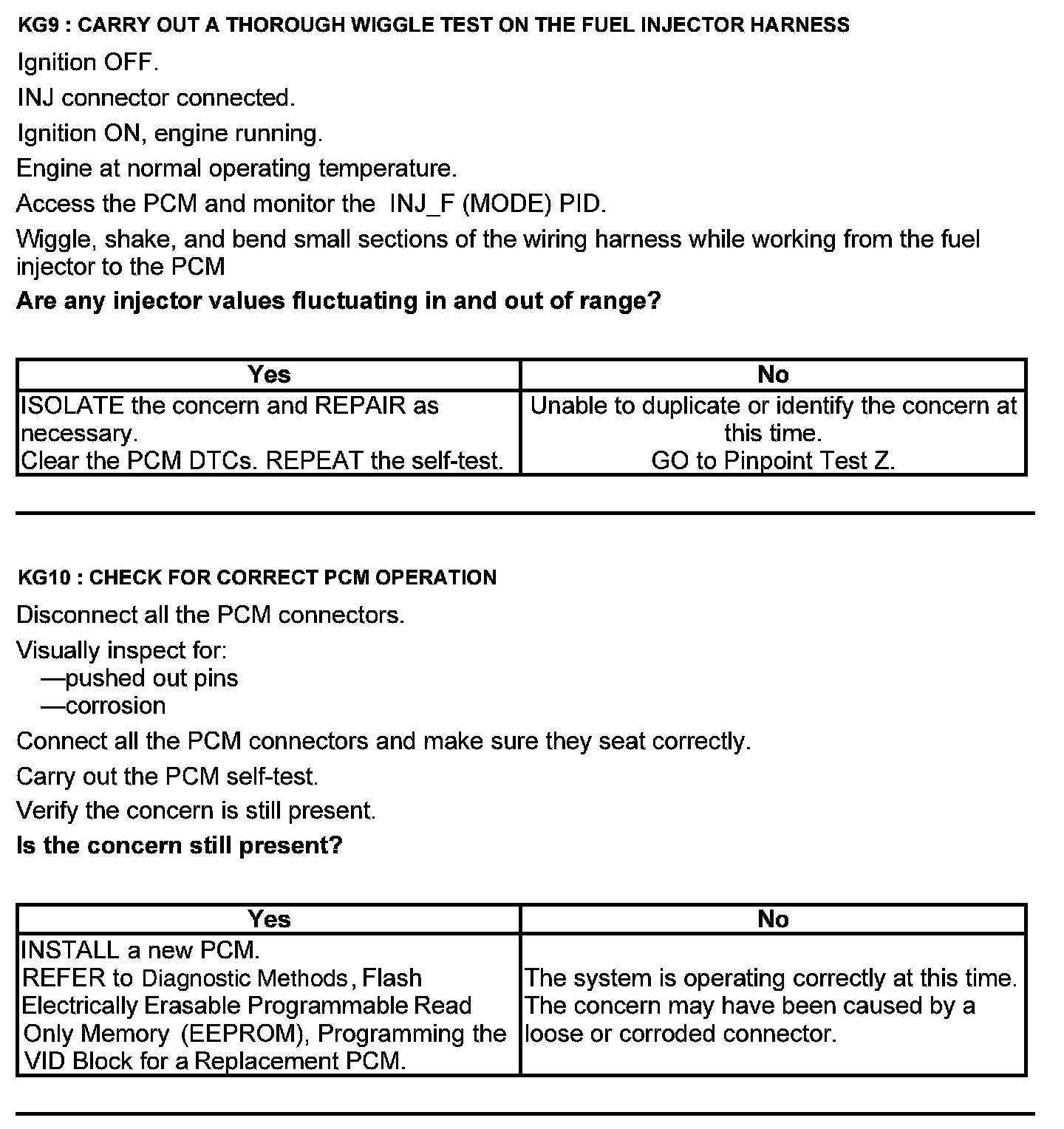

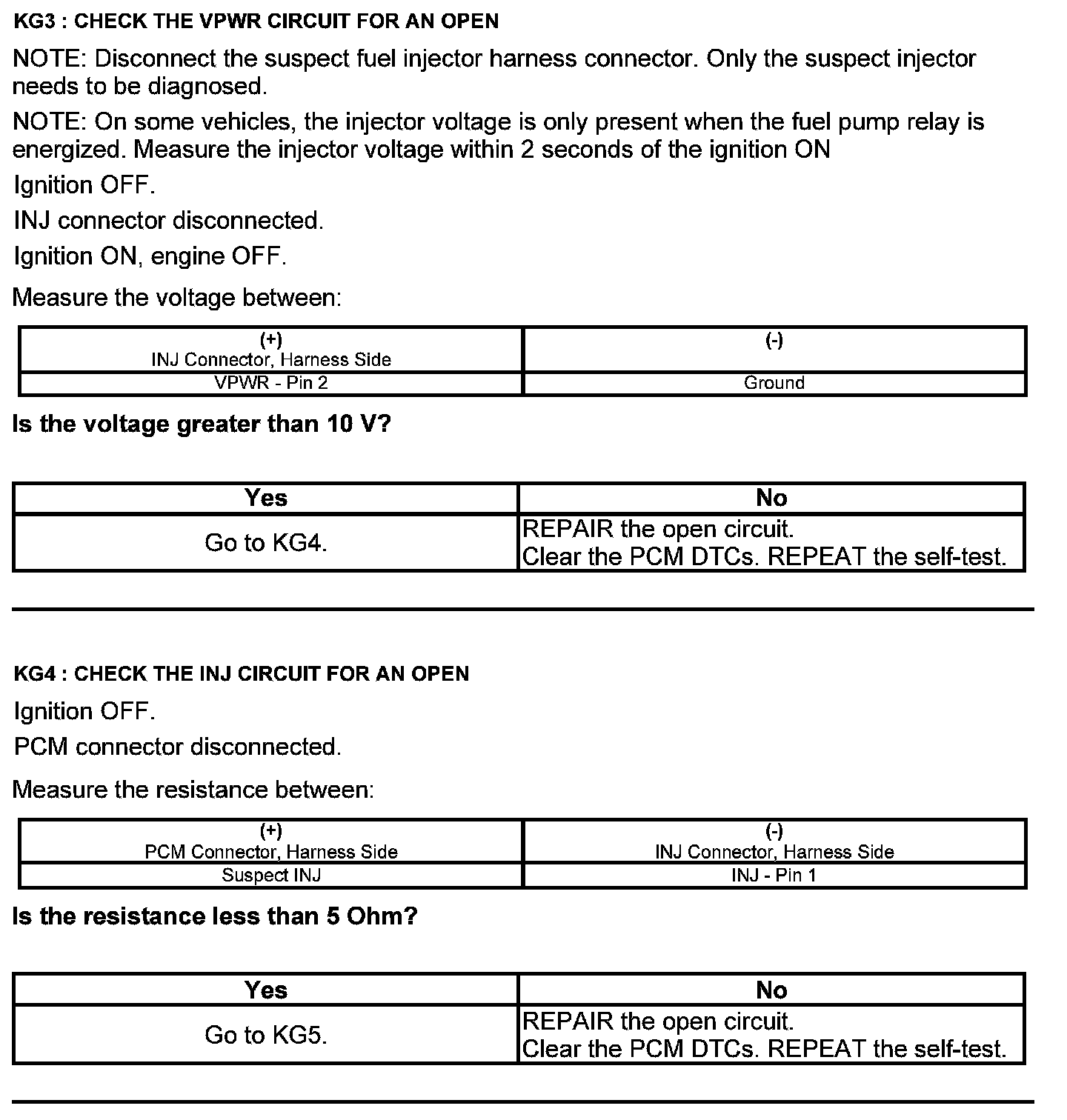

Fuel Injector - Automatic Transmission

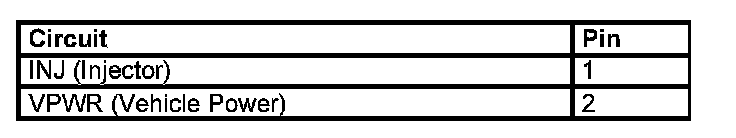

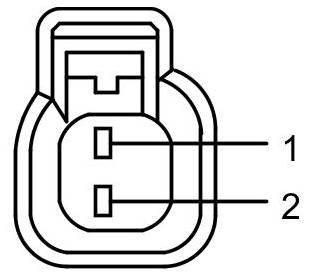

Injector (INJ) Connector





Harness Side

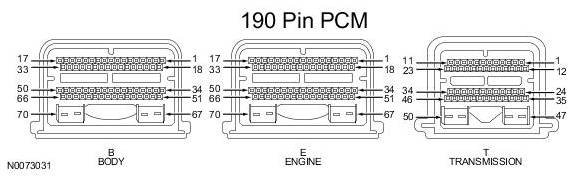

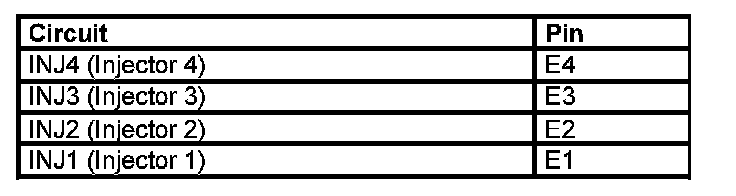

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
