All Others

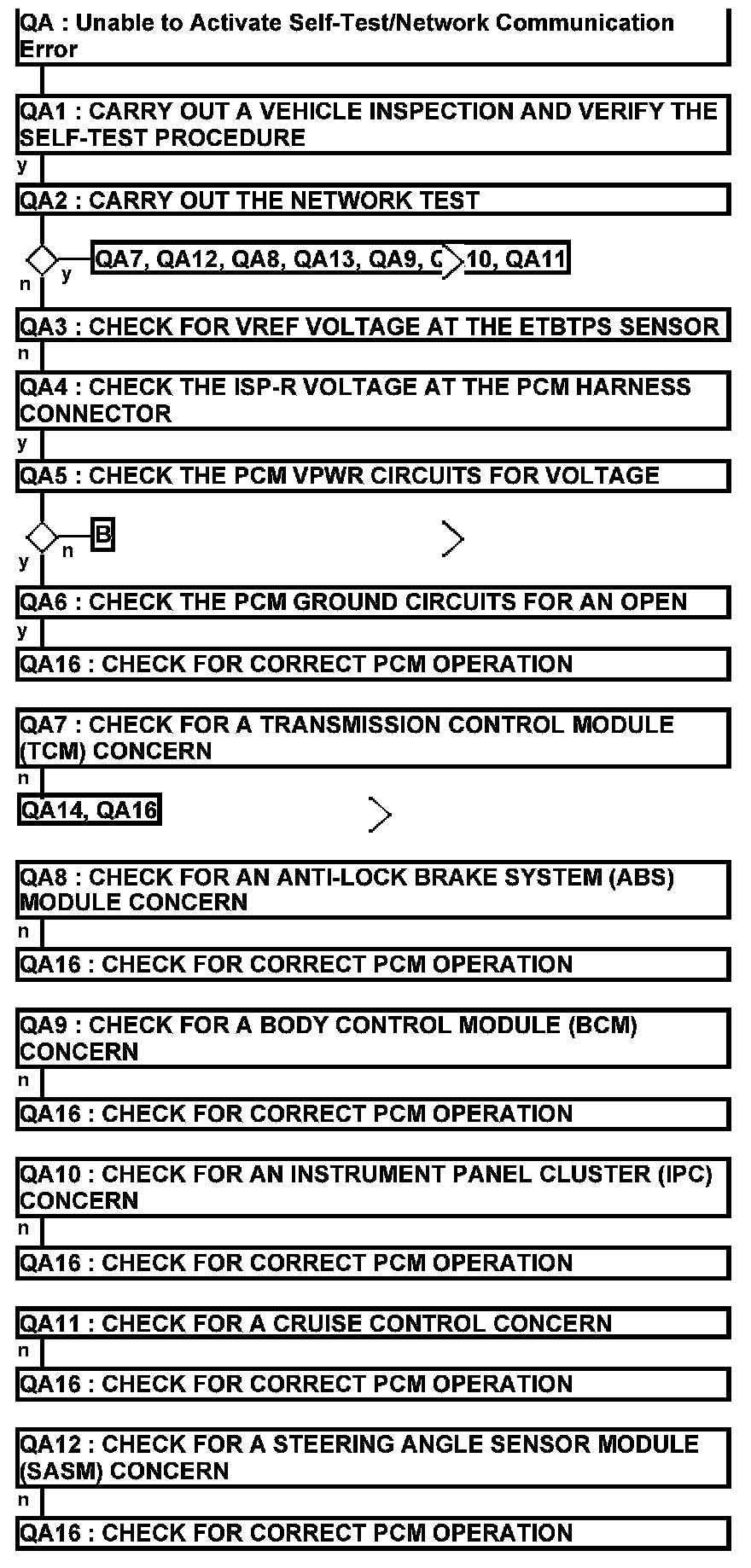

Unable to Activate Self-Test/Network Communication Error - All Others

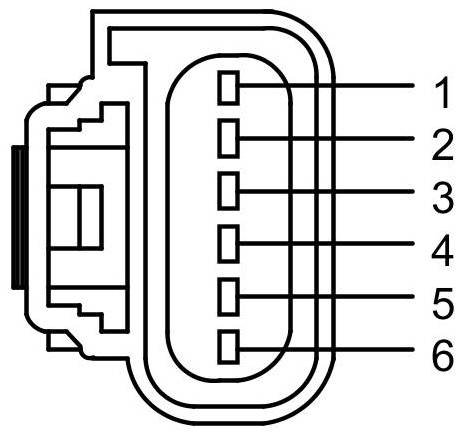

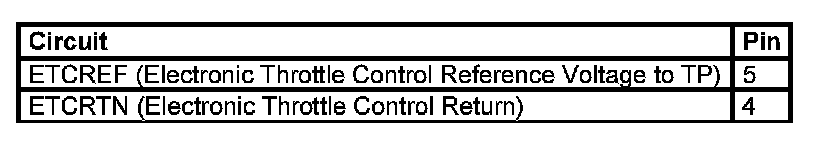

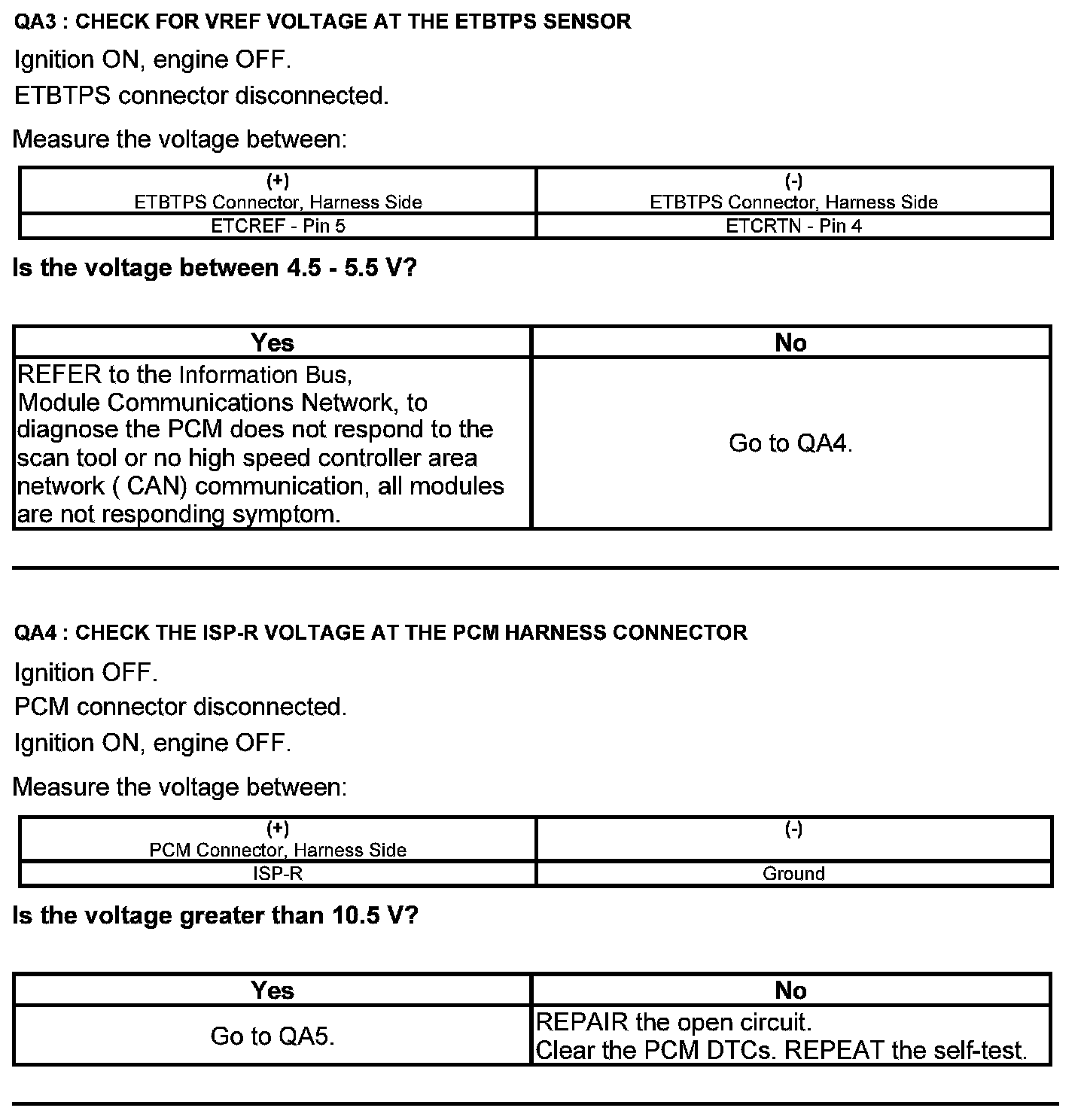

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector





Harness Side
