Automatic Transmission



Keep Alive Power (KAPWR) - Automatic Transmission

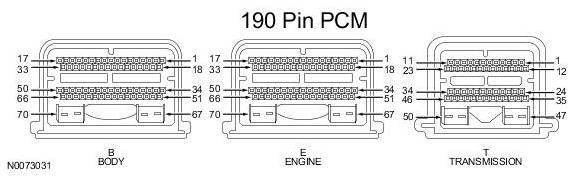

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.
