Suspension System - General Information




Specifications

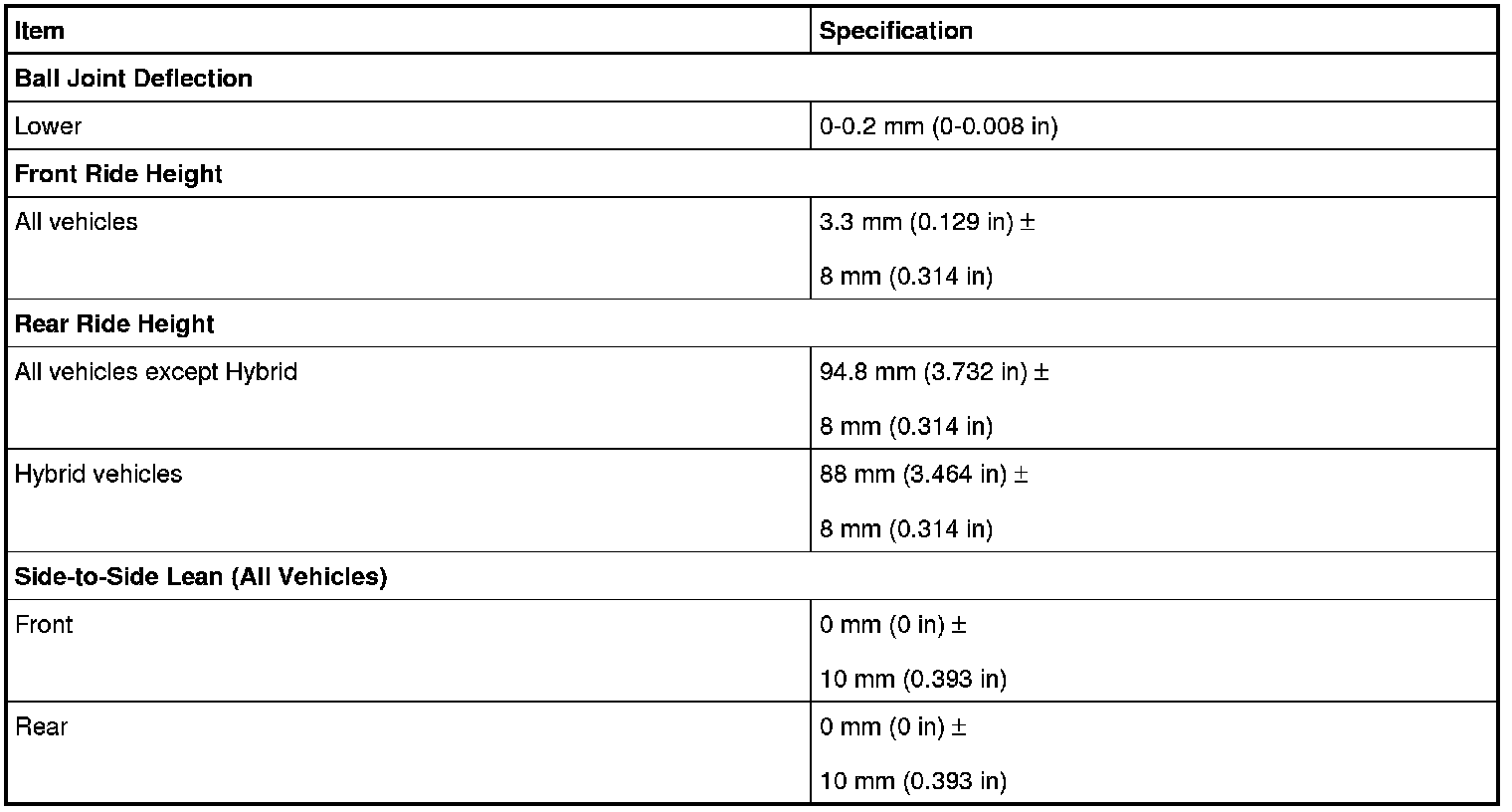

General Specifications

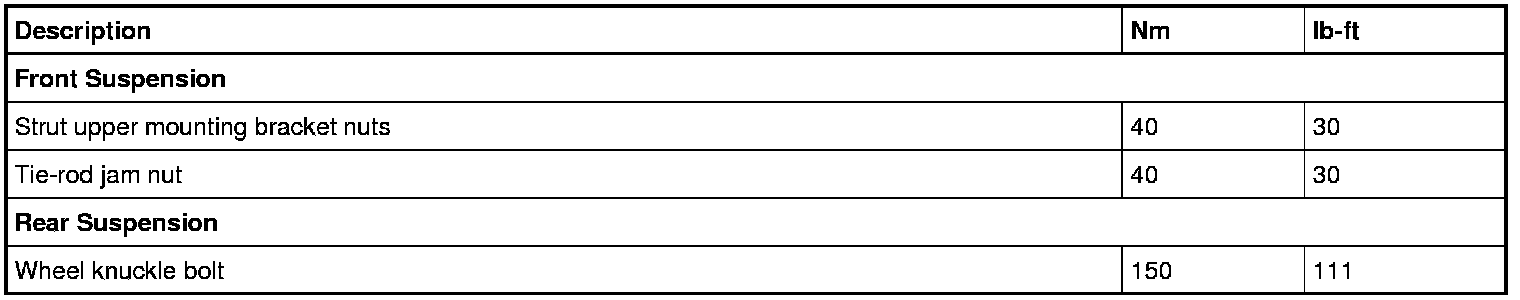

Torque Specifications

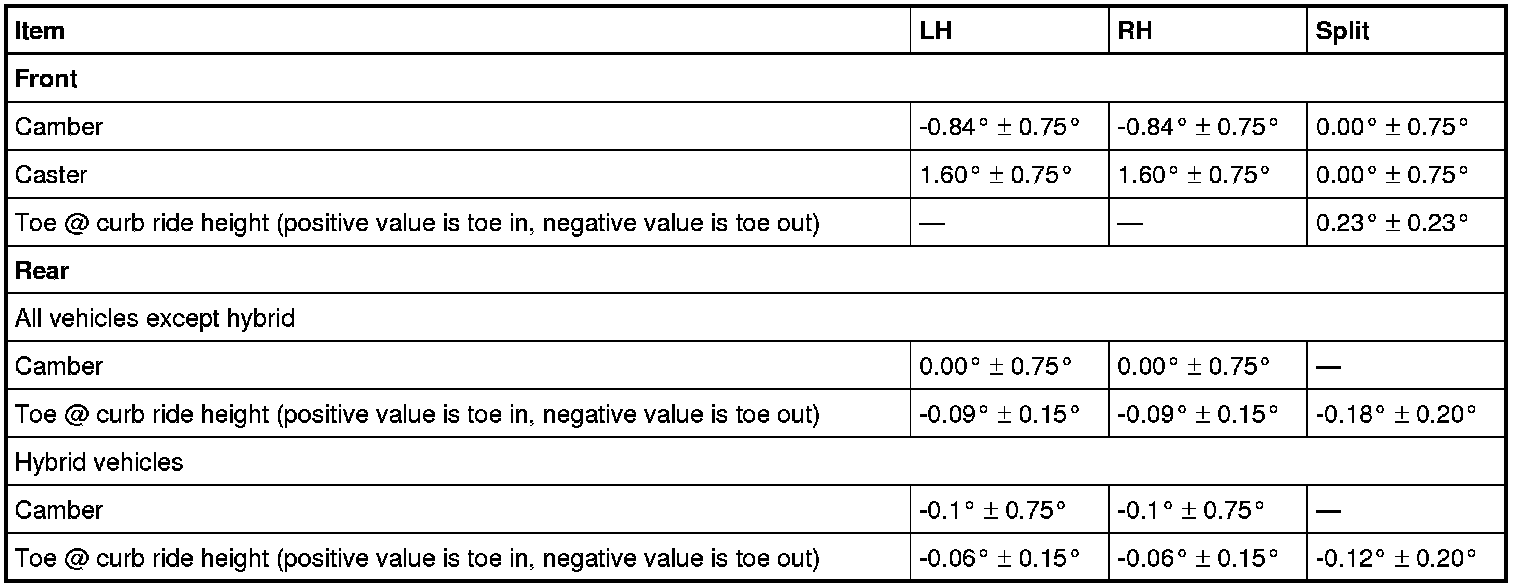

Alignment Specifications

NOTE: All alignment specifications are with the vehicle fuel tank full.
