Variable Valve Timing Solenoid: Service and Repair

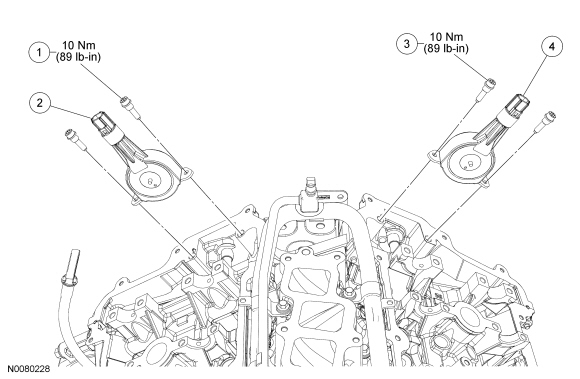

Variable Camshaft Timing (VCT) Oil Control Solenoid









Removal and Installation

1. Remove the LH or RH valve cover.

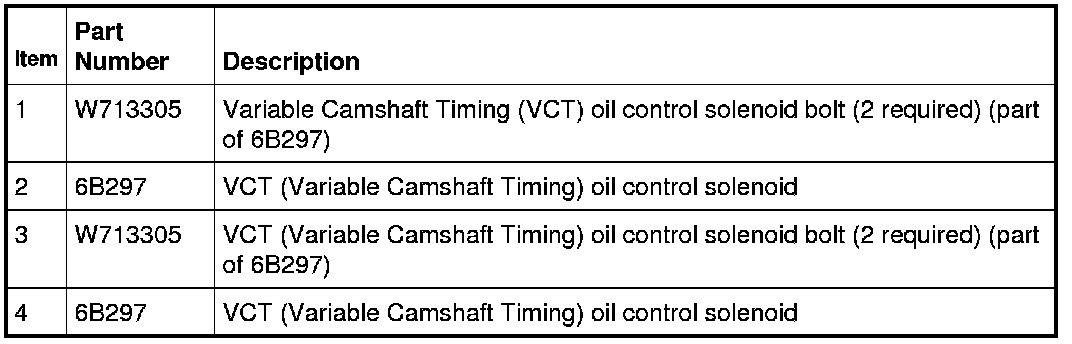

2. Remove the 2 bolts and the Variable Camshaft Timing (VCT) oil control solenoid.
- To install, tighten to 10 Nm (89 lb-in).


3. To install, reverse the removal procedure.
