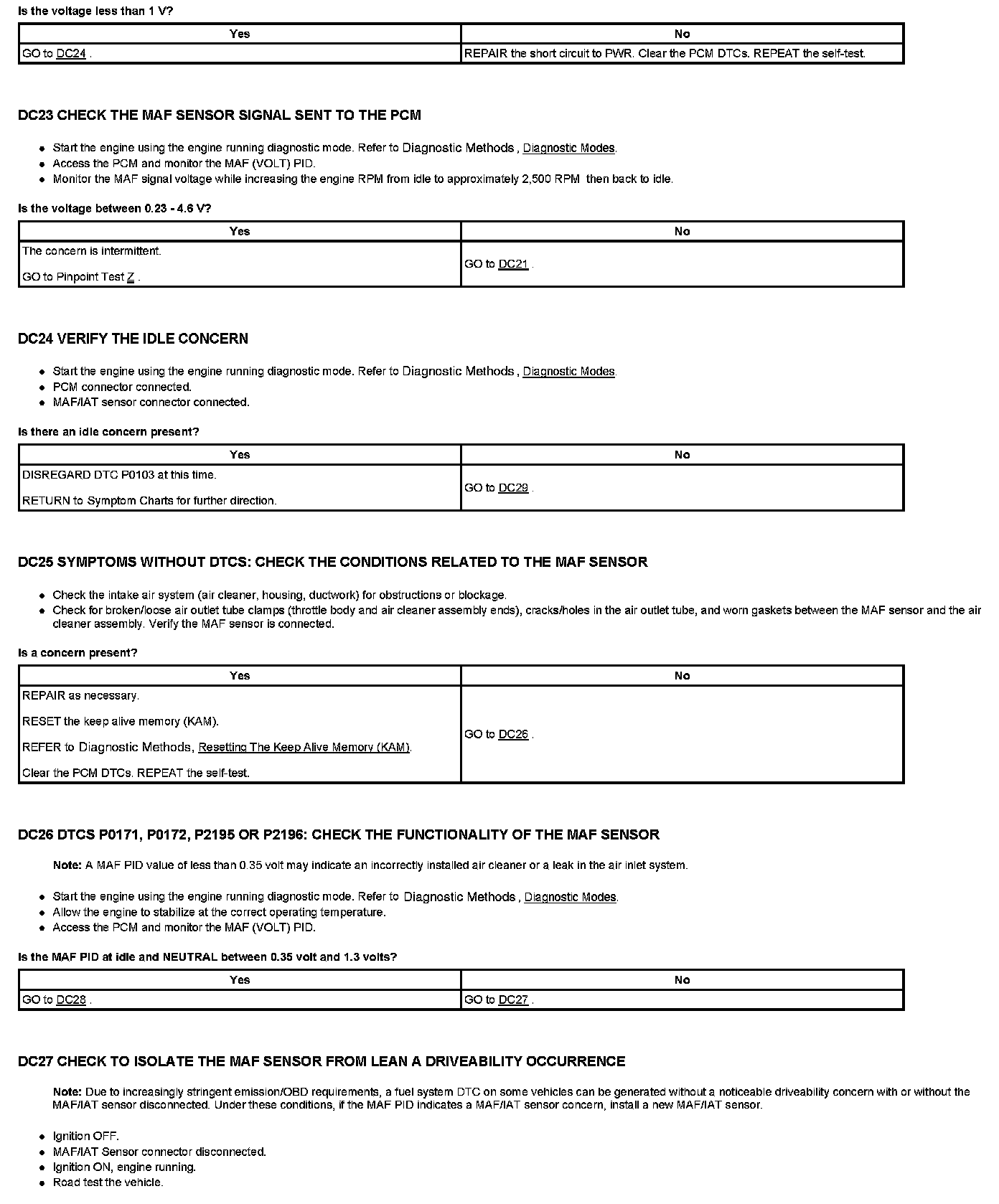

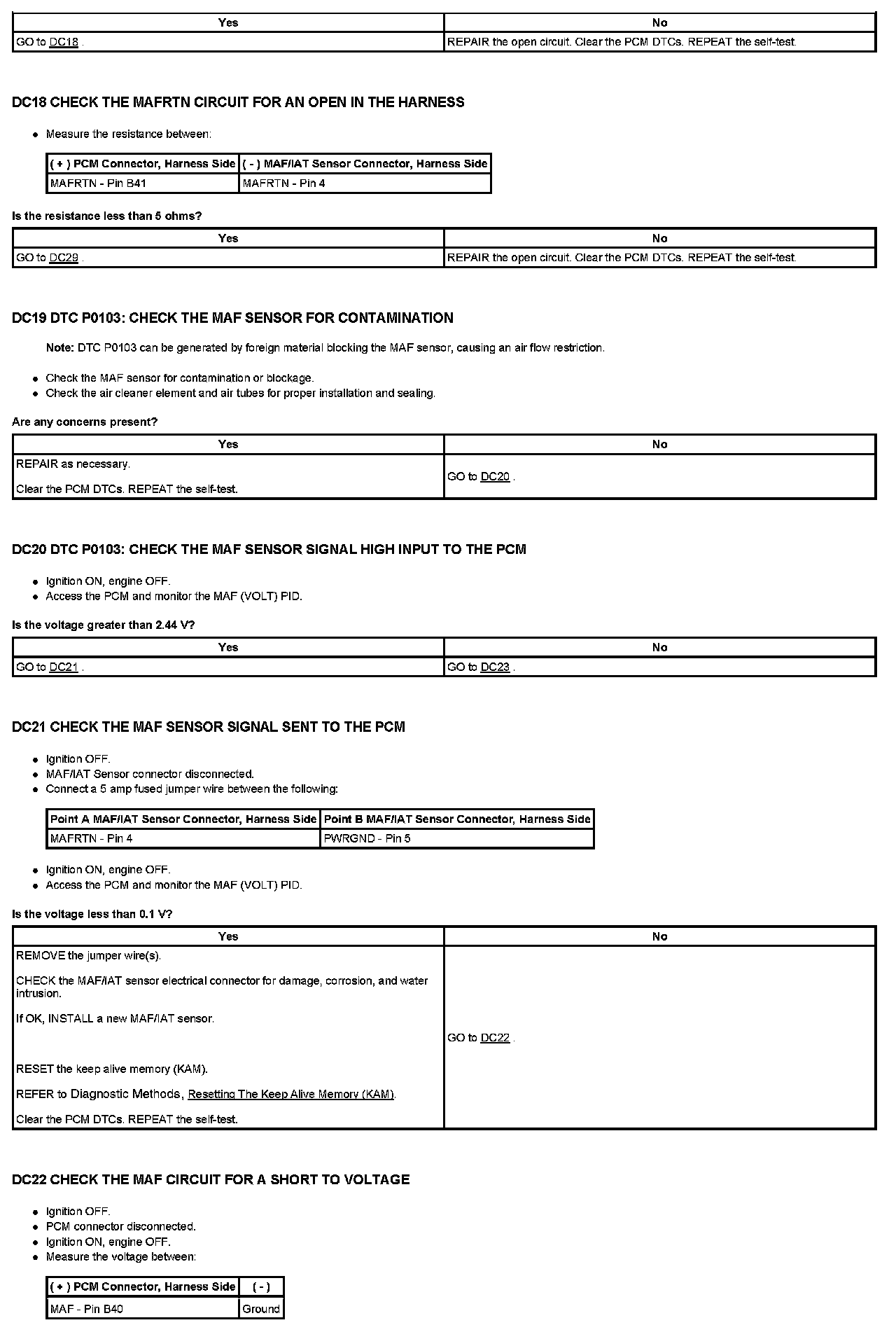

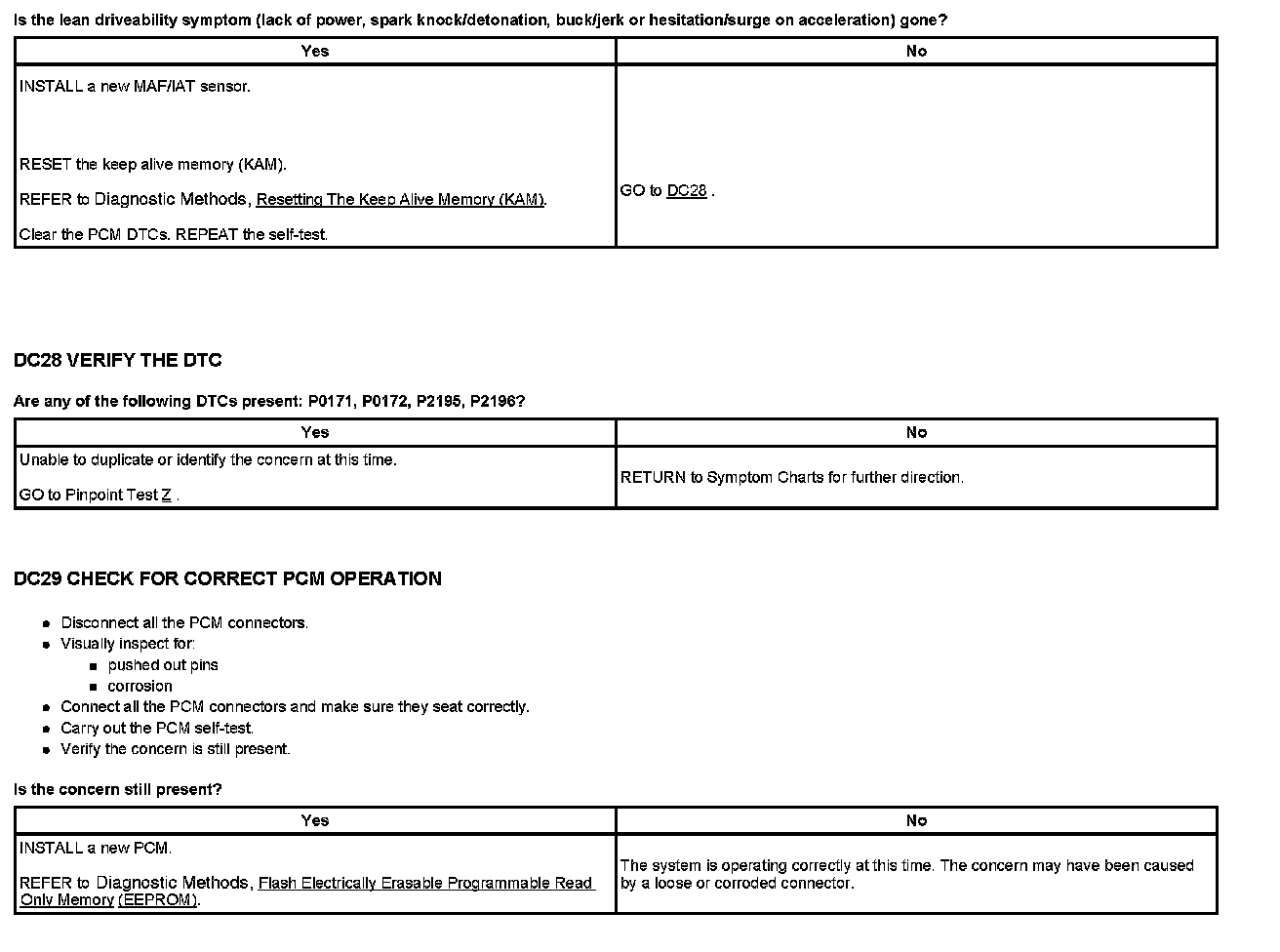

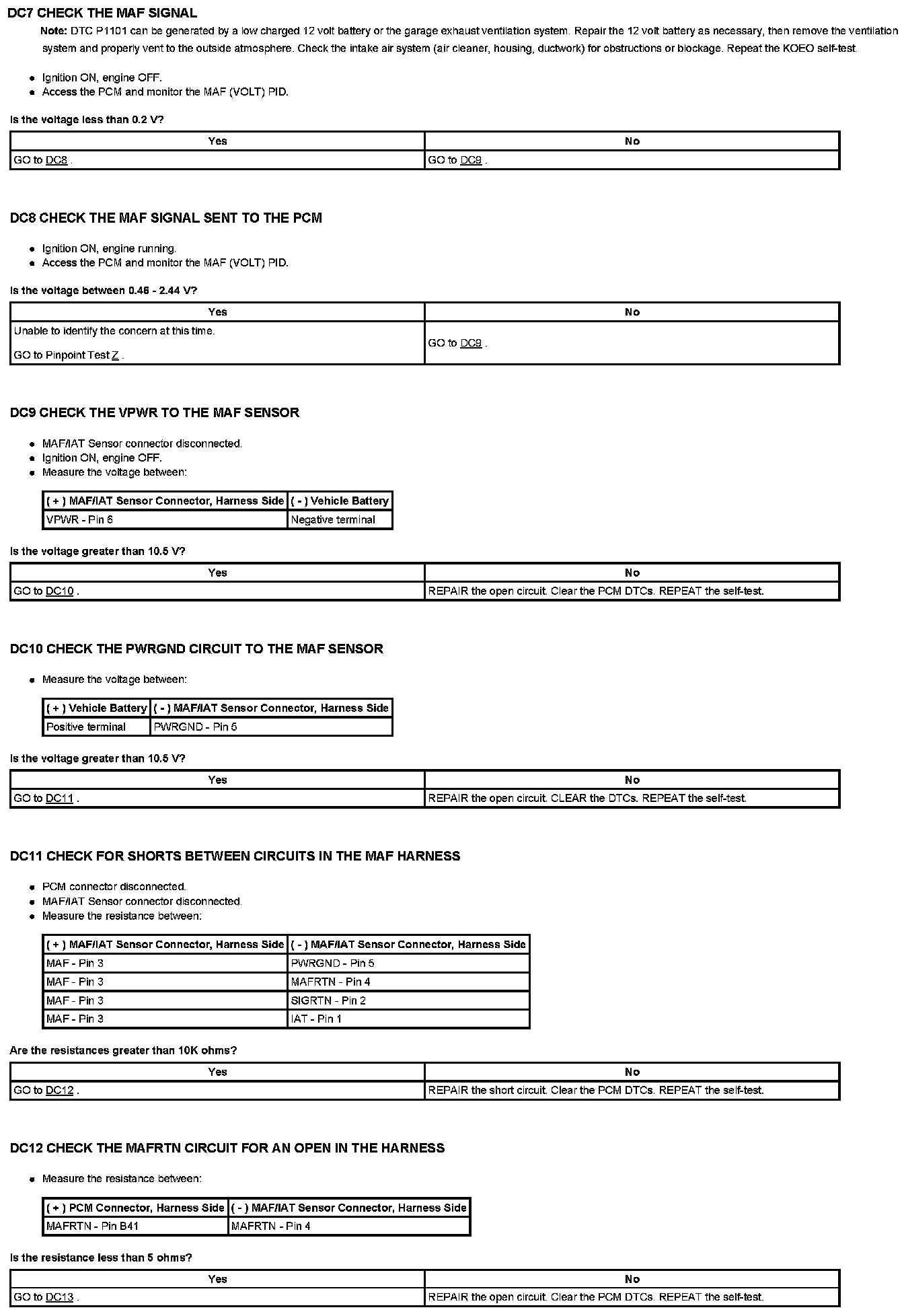

Test DC: Mass Air Flow (MAF) Sensor

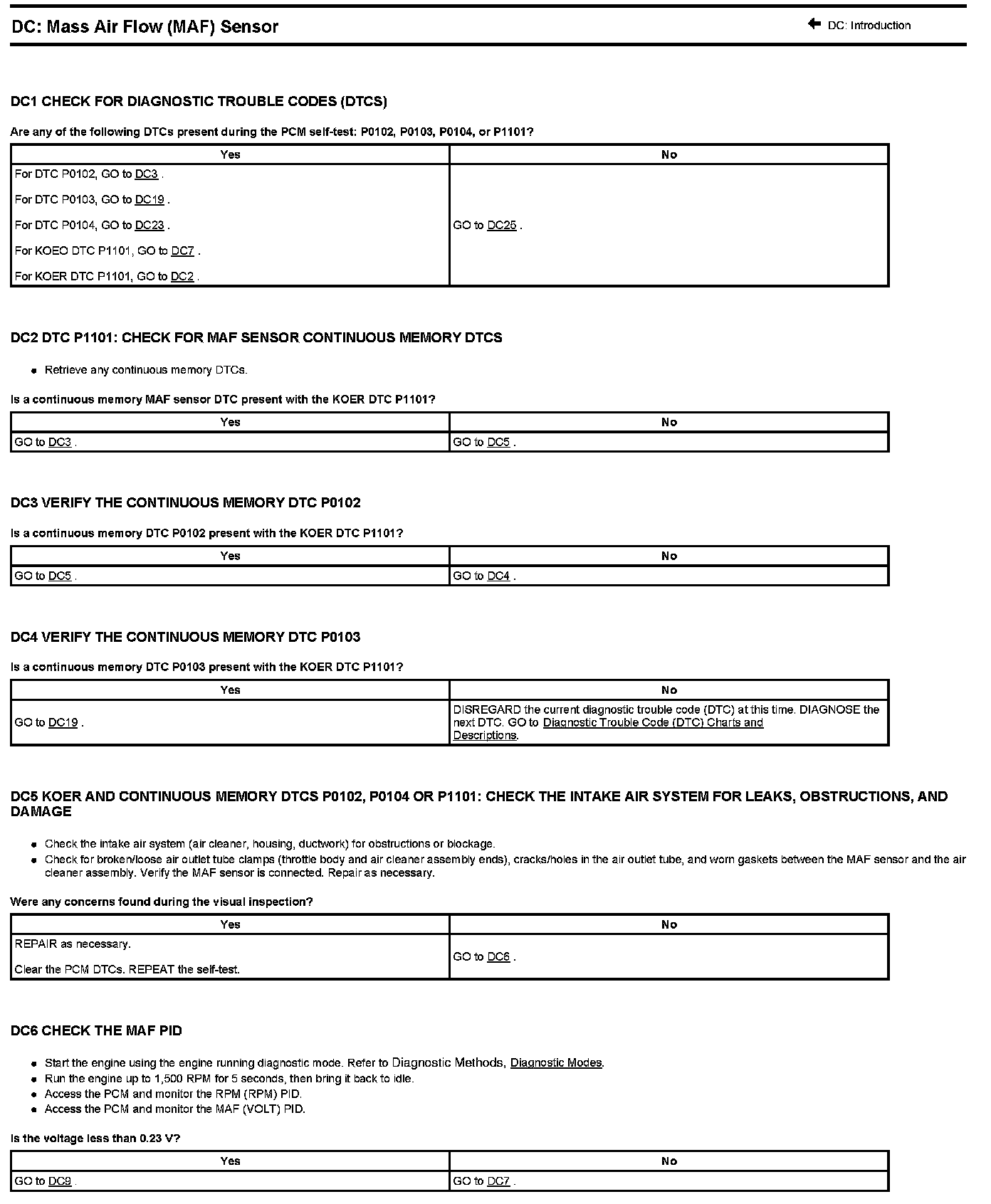

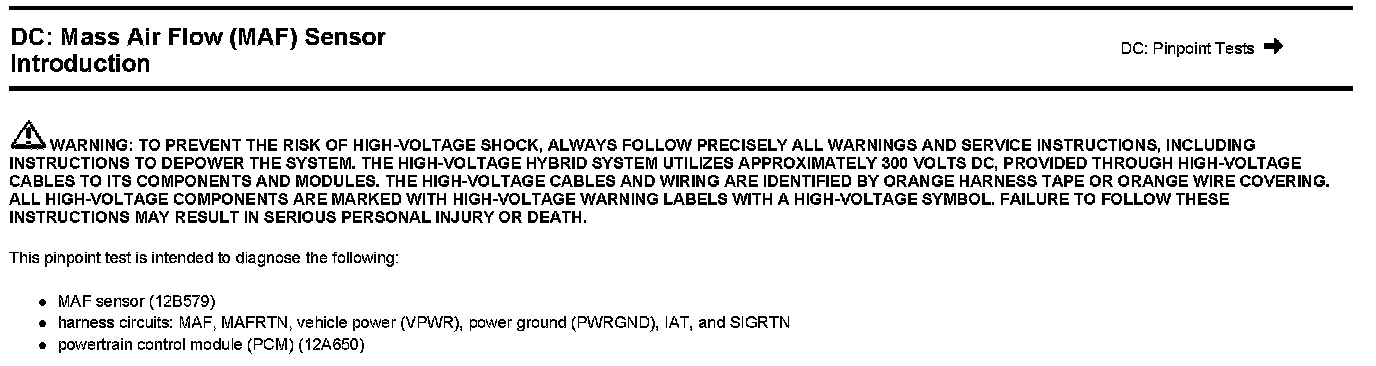

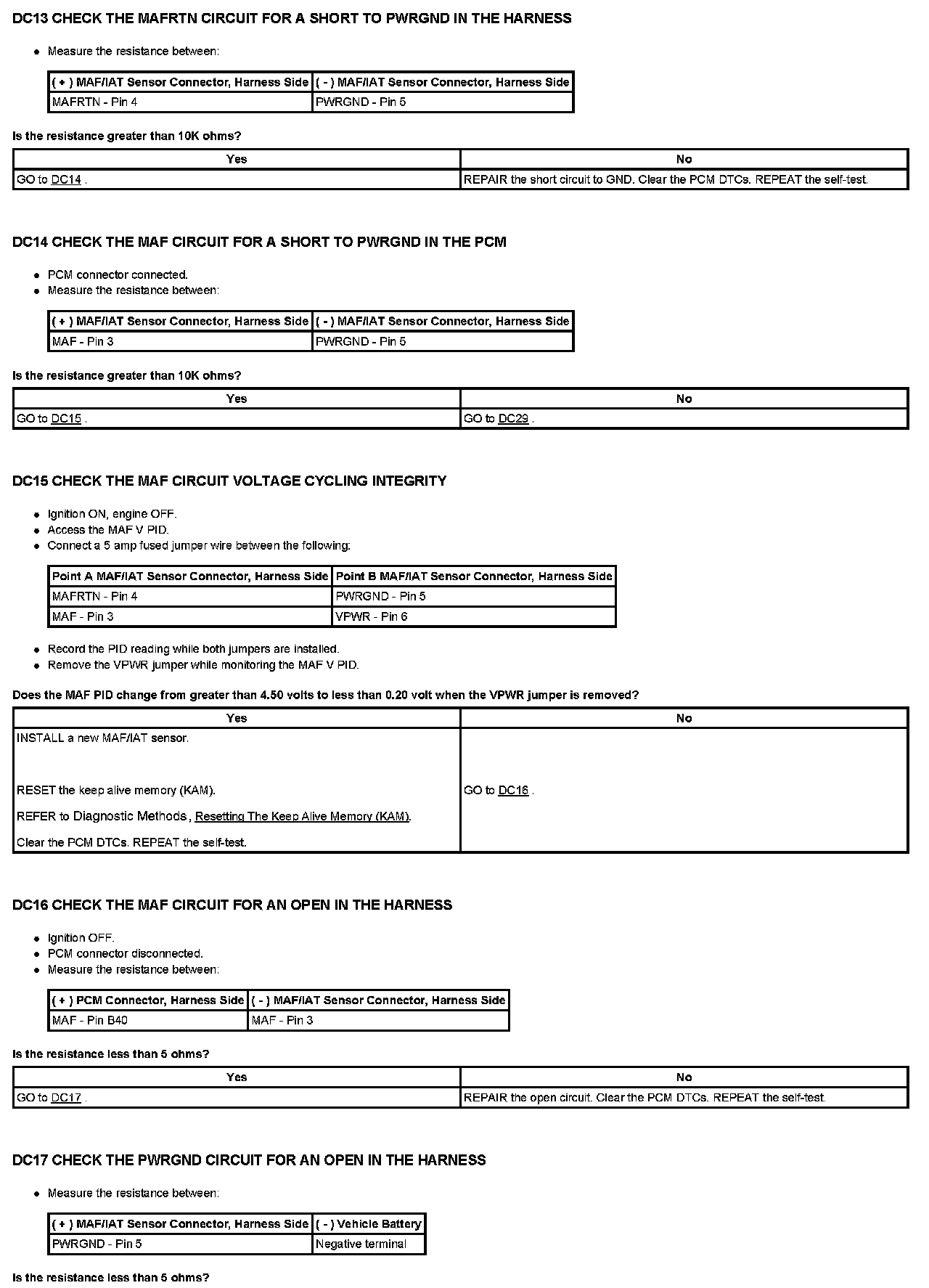

DC: MASS AIR FLOW (MAF) SENSOR

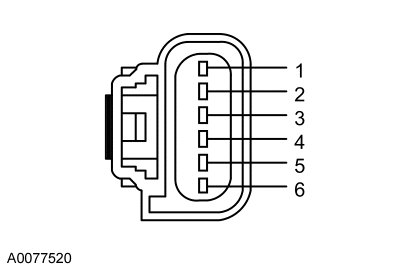

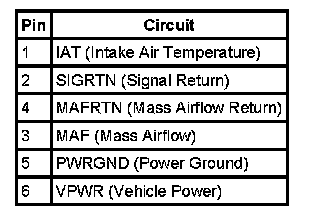

Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector

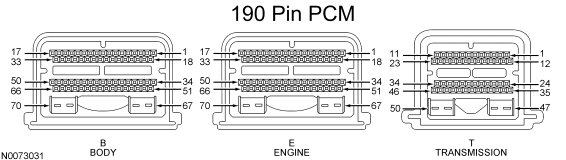

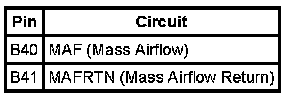

Powertrain Control Module (PCM) Connector
