Engine Specifications

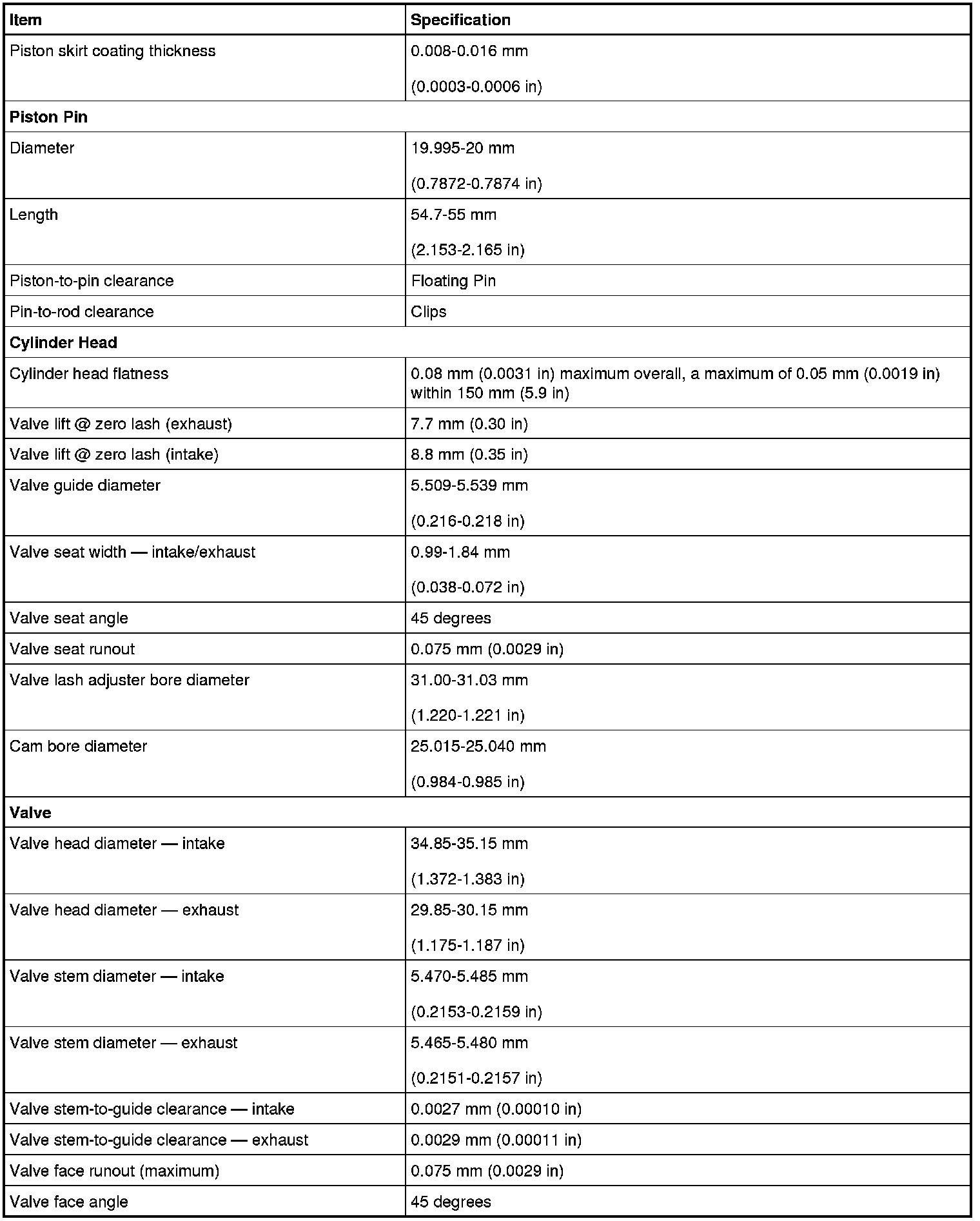

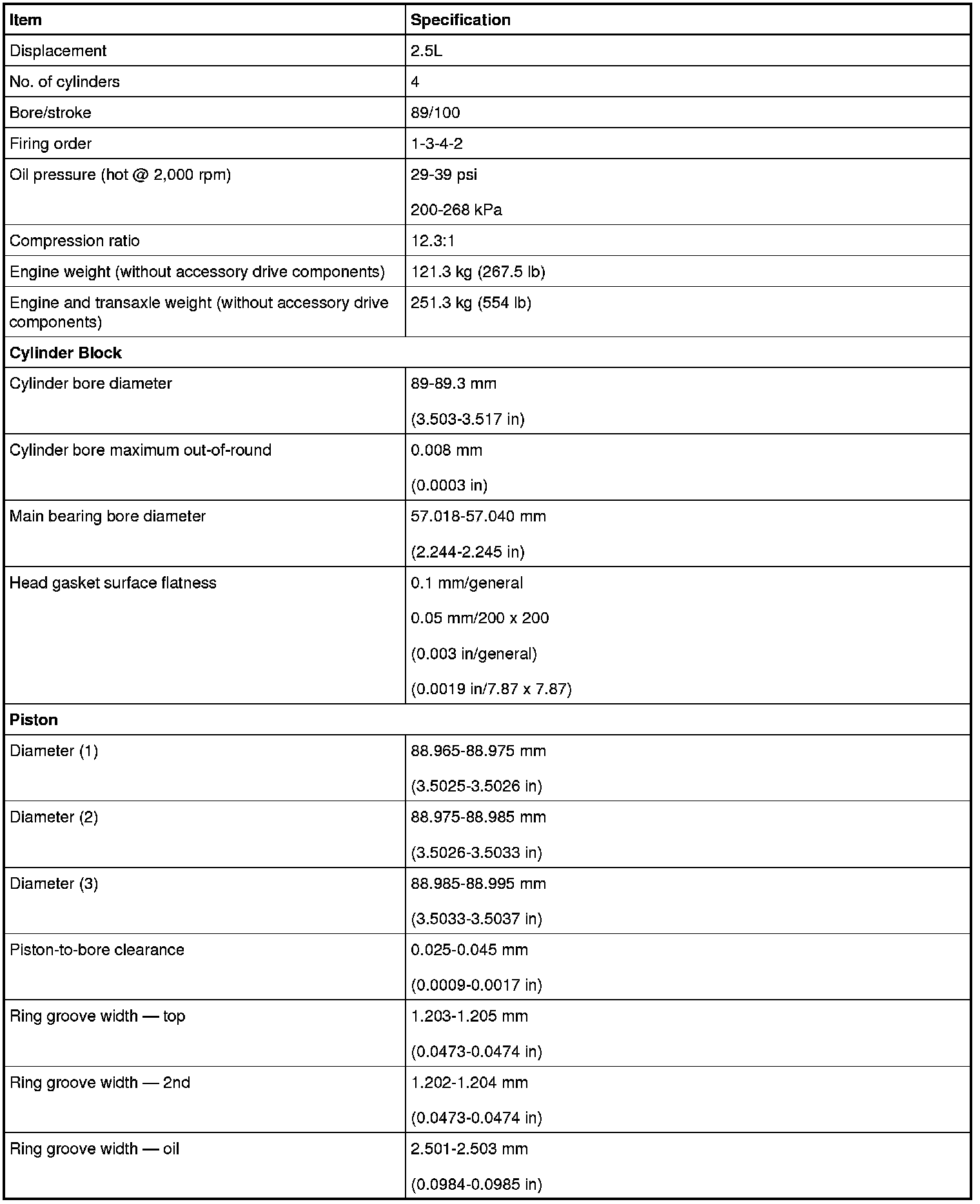

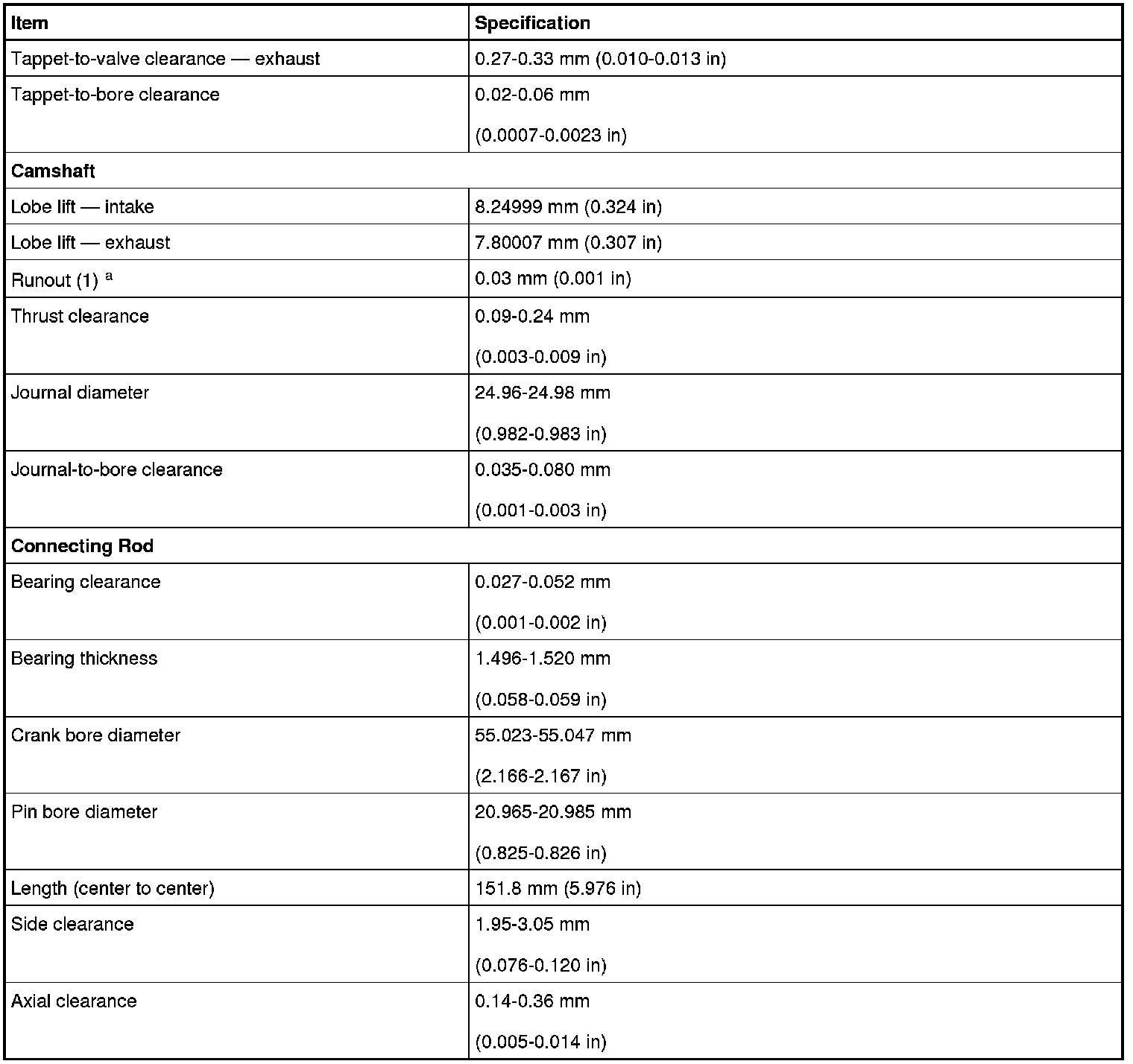

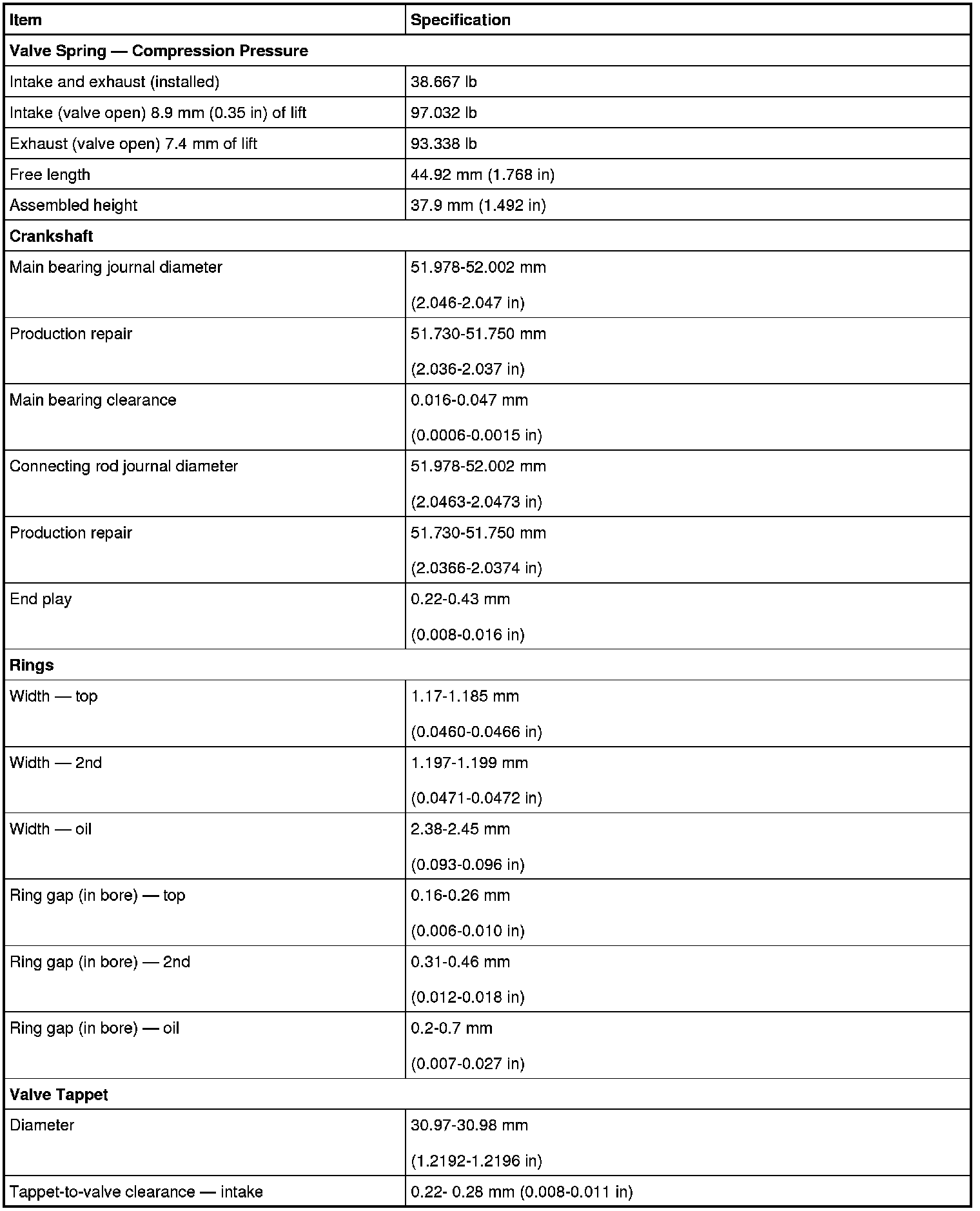

General Specifications

















a No. 3 Journal - Supported by No. 1 and No. 5 journals.

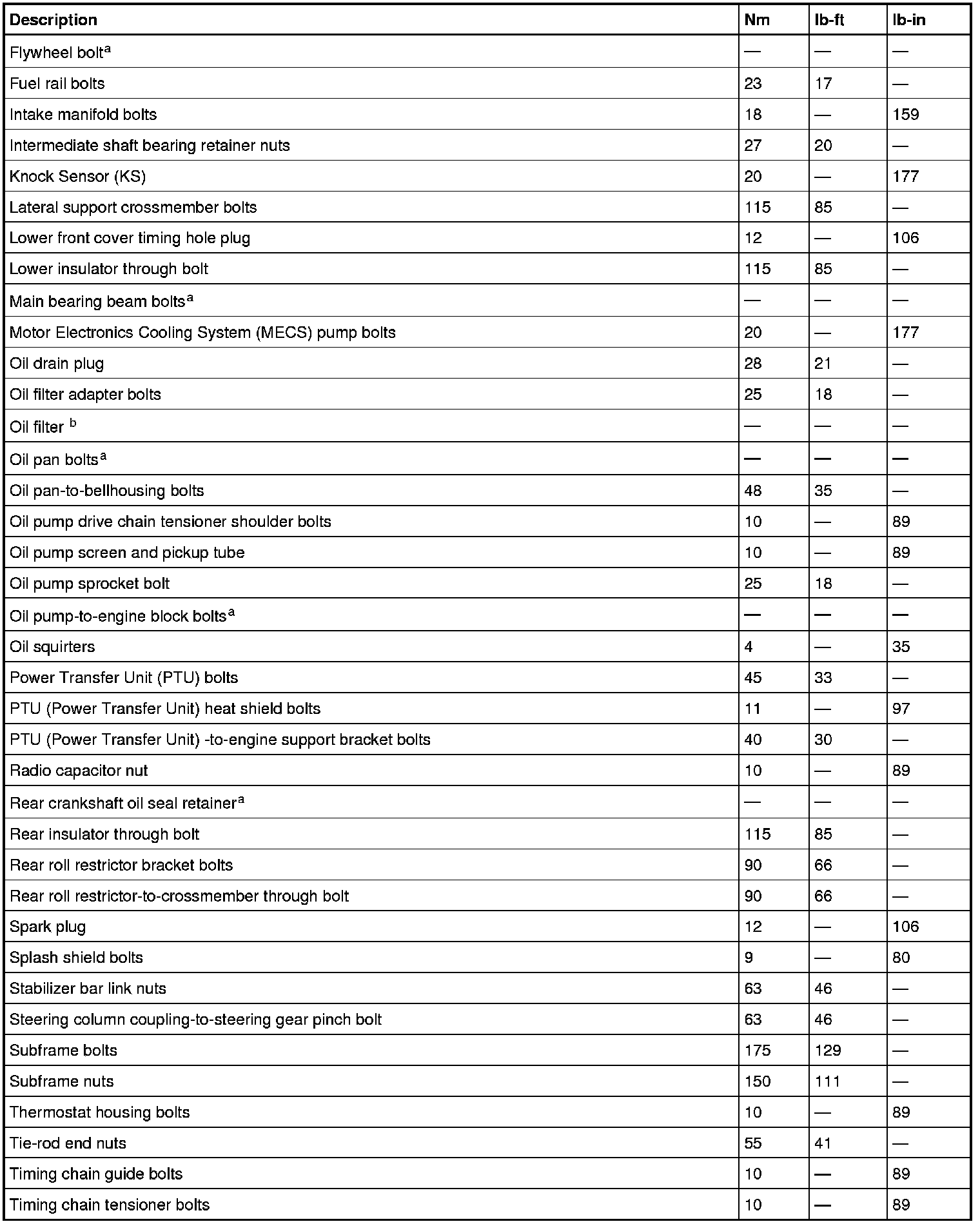

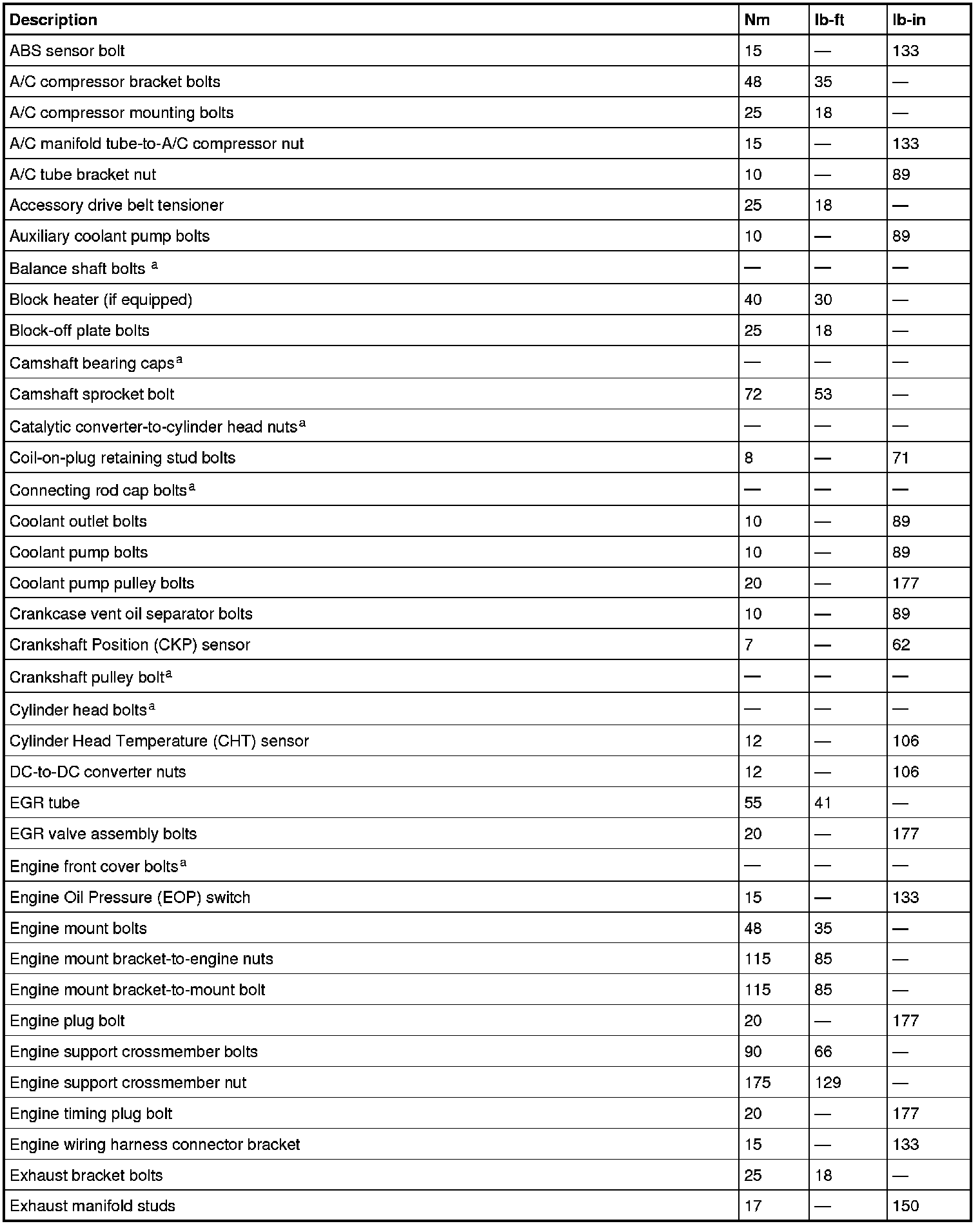

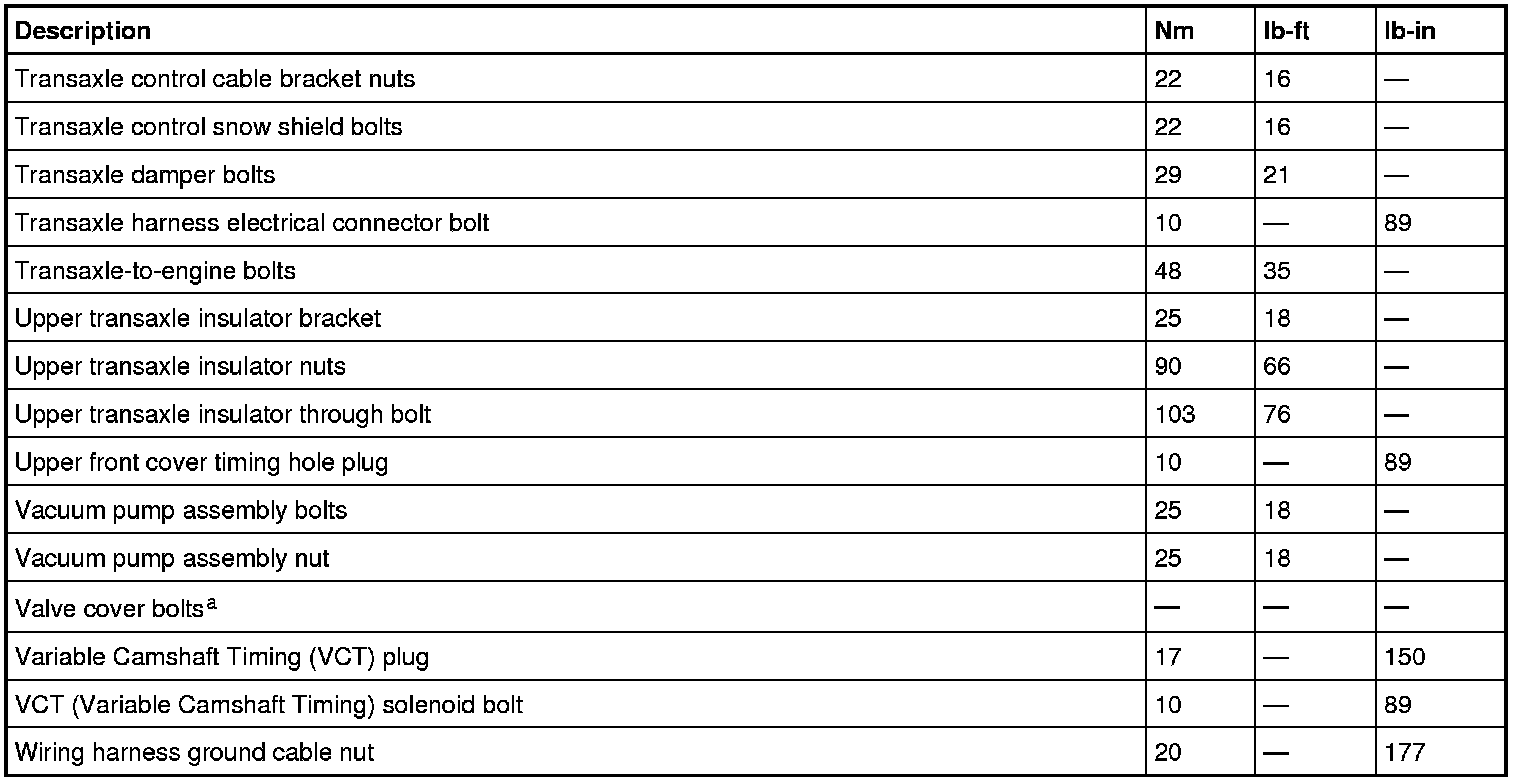

Torque Specifications













a Refer to the procedure in Engine.

b Tighten the spin-on oil filter three-fourths of a turn after the oil filter gasket makes contact with the oil filter adapter.
