2.5L 4V Escape Hybrid

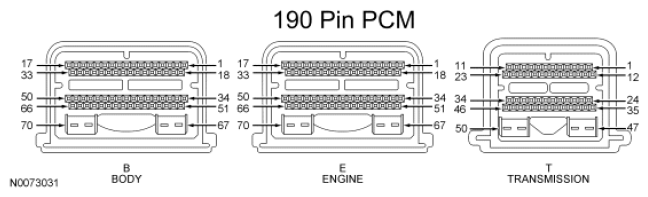

Fig 1: Identifying 190-Pin PCM Connectors (2.5L 4V Escape Hybrid)
G07884166Courtesy of FORD MOTOR CO.
PCM SENSORS/INPUTS - 2.5L 4V ESCAPE HYBRID

PCM Sensors / Inputs PCM Pin / PID only Measured/PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
GTQ B6 0.5 -2.6 -28.4 -33.6 Nm
MTQ B11 0.3 -3.9 5.5 -21.3 Nm
BOO1 B13 OFF OFF OFF OFF ON-OFF
APP1 B28 0.78 0.78 1.23 1.41 VOLTS
APP2 B29 0.38 0.37 0.63 0.73 VOLTS
MAF B40 0 0.97 2.06 2.1 VOLTS
BOO2 B46 OFF OFF OFF OFF ON-OFF
IAT (D) B47 1.54/131 2.3/100.4 2.79/89.6 3.59/82.4 VOLTS/DEG F
FTP B65 2.59/0 2.64/0 2.65/0 2.64/0 VOLTS/PSI
CHT (D) E15 3.26/221 3.65/197.6 3.69/195.8 3.74/192.2 VOLTS/DEG F
MAP E40 4.01/98.9/14.35 1.47/36/5.22 3.0/74.9/10.87 3.14/77.97/11.31 VOLTS/kPa PSI
O2S12 (C) T16 0.07 0.62 0.91 0.65 VOLTS
MECT_V T29 2.03 2.19 2.63 2.65 VOLTS
AC_REQ PID No No No No Yes-No
APP PID 0 0 0 23 %
BARO PID 156.1/98.93/14.35 156.1/98.93/14.35 156.1/98.93/14.35 155.2/97.97/14.21 Hz/kPa/PSI
BPO PID NO YES (E) NO NO YES-NO
FLI PID 30.2 29.8 28.24 27.84 %
KEYST PID ON ON ON ON ON-OFF
LOAD PID 0 33.33 82.75 86.67 %
O2S11_CUR (A) PID -255.7 (mA) -23 (uA) -255.9 (mA) -43 (uA) mA/uA
O2S11_IMPED (A) PID 1.01 1.01 1.09 0.98 VOLTS
RPM PID 0 1072 1561 1756 RPM
TR_A1 PID 4.3 4.3 1.37 1.37 VOLTS
TR_A2 PID 0.64 0.64 3.35 3.35 VOLTS
PCM ACTUATORS/OUTPUTS - 2.5L 4V ESCAPE HYBRID

PCM Actuators / Outputs PCM Pin / PID only Measured / PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
EVBV B4 0 0 100 100 %
FPM B14 39.64 40.28 39.64 39.74 %
MFC B18 OFF ON OFF OFF ON-OFF
EVAPCV B20 OFF/0 OFF/0 OFF/0 OFF/0 ON-OFF/%
LFC B34 OFF ON (B) OFF OFF ON-OFF
HFC B36 OFF ON (B) OFF OFF ON-OFF
FP B56 OFF/75 ON/41.67 ON/48 ON/41.06 ON-OFF/%
EVAPCP E31 0 12.16 0 0 %
EGRMC1F E36 NO FAULT NO FAULT NO FAULT NO FAULT FAULT/NO FAULT
EGRMC2F E37 NO FAULT NO FAULT NO FAULT NO FAULT FAULT/NO FAULT
HTR11 E52 ON ON ON ON ON-OFF
EGRMC3F E54 NO FAULT NO FAULT NO FAULT NO FAULT FAULT/NO FAULT
EGRMC4F E56 NO FAULT NO FAULT NO FAULT NO FAULT FAULT/NO FAULT
VCTDC E67 0 48.46 43.33 44.35 %
HTR12 T18 OFF ON ON ON ON-OFF
GENMTR_SDN T36 NO YES (H) NO NO YES-NO
MECP T49 ON ON ON ON ON-OFF
EGR_EVAL PID NO NO NO YES YES/NO
FTP_H2O PID -0.2 0.13 0.24 0.17 in H2 O
GTQ PID 0.5 -2.6 -28.4 -33.6 Nm
LONGFT1 PID 3.12 3.12 4.68 4.68 %
MECP_F PID NO FAULT NO FAULT NO FAULT NO FAULT FAULT/NO FAULT
SHRTFT1 PID 0 1.56 -2.34 3.9 %
SPARKADV PID 7 10.5 32.75 34.5 DEGREES
VCT_DSD PID 0 -10 -18.44 -19.31 DEGREES
VCTADV PID 0 -9.93 -18.88 -18.81 DEGREES
VCTADVERR PID 0 0 0.37 0.12 DEGREES
VCTSYS PID OPEN LOOP CLOSED LOOP CLOSED LOOP CLOSED LOOP OPEN/CLOSED LOOP
VSS PID 0 0 48Km/h (30MPH) 89Km/h (55MPH) Km/h / MPH
OTHER - 2.5L 4V ESCAPE HYBRID

Other PCM Pin / PID only Measured / PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
VREF E63 5 5 5 5 VOLTS
VPWR B67/B68 12.14 13-14 13-14 13-14 VOLTS

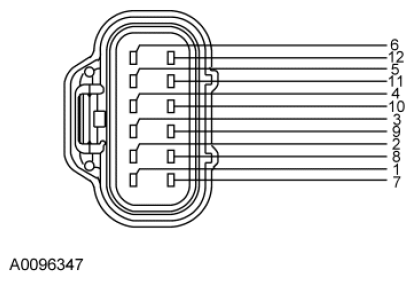

Fig 2: Identifying Transaxle Connector A
G07884167Courtesy of FORD MOTOR CO.

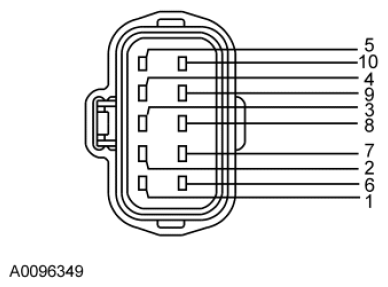

Fig 3: Identifying Transaxle Connector B
G07884168Courtesy of FORD MOTOR CO.
TCM INPUTS - TRANSAXLE CONNECTOR

TCM Inputs TCM Pin / PID only Measured / PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
I_SDN_1 A6 CHARGE CHARGE CHARGE CHARGE CHARGE/DISCHARGE
ENG_CTO B1 0 1067 (J) 1430 (J) 1201 (J) RPM
I_SDN_2 B7 CHARGE CHARGE CHARGE CHARGE CHARGE/DISCHARGE
GTQ_OUT B9 -0.2 -4.4 -34.6 -35.1 Nm
CONTACT PID OPEN CLOSED CLOSED CLOSED OPEN/CLOSED
ENG_TQ PID -28.05 9.35 797.5 114.9 Nm
GCLTEMP PID 62(143.6) 57(134.6) 44(111.2) 52 (125.6) DEG C (DEG F)
GENMODE PID TORQUE SPEED SPEED SPEED MODE
G_INV_V PID 0 350 349.4 346.7 VOLTS
G_PHTMP PID 48 (118.4) 46 (114.8) 56 (132.8) 54 (129.2) DEG C (DEG F)
G_SDN_B PID NOT SHUTDWN NOT SHUTDWN NOT SHUTDWN NOT SHUTDWN SHUTDWN/NOT SHUTDWN
G_SDN_C PID NOT SHUTDWN NOT SHUTDWN NOT SHUTDWN NOT SHUTDWN SHUTDWN/NOT SHUTDWN
G_SPEED PID 0 3647 911 -965 RPM
HVBAT_V PID 345.2 348.2 325.2 345.2 VOLTS
HV_AMP PID 0 -1.8 A -15.2 A -1.9 A AMP
HV_INTLOCK PID CLOSED CLOSED CLOSED CLOSED OPEN/CLOSED
MCLTEMP PID 49 (120.2) 48 (118.4) 42 (107.6) 47 (116.6) DEG C (DEG F)
MECT PID 45 (113) 42 (107.6) 35 (95) 29 (84.2) DEG C (DEG F)
MTQ_CMD PID 0 -5.4 5.5 -7 Nm
M_INV_V PID 0 350.8 326.2 345.8 VOLTS
M_PHTMP PID 47 (116.6) 44 (111.2) 36 (96.8) 32 (89.6) DEG C (DEG F)
M_SDN_B PID NOT SHUTDWN NOT SHUTDWN NOT SHUTDWN NOT SHUTDWN SHUTDWN/NOT SHUTDWN
M_SDN_C PID NOT SHUTDWN NOT SHUTDWN NOT SHUTDWN NOT SHUTDWN SHUTDWN/NOT SHUTDWN
M_SPEED PID 0 0 3806 6952 RPM
PRNDL_T PID PARK (M) PARK (M) DRIVE (L) DRIVE (L) SELECTOR POSITION
TQ_DSD PID 0 0 212 286 Nm
RPM_DSD PID 0 1075 1326 1868 RPM
VEHMODE PID OPEN PSR DRIVING DRIVING DRIVING MODE
VSS_TCM PID 0 0 48Km/h (30MPH) 89Km/h (55MPH) Km/h / MPH
TCM OUTPUTS - TRANSAXLE CONNECTOR

TCM Outputs TCM Pin / PID only Measured / PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
MTQ_OUT B4 0 -4.6 4.9 -7.3 Nm
ENGRPMA PID 0 1081 1433 1199 RPM
GTQ_CMD PID 0 -3.6 -33.9 -34.7 Nm
TCM_CAU PID OFF ON (F) OFF OFF ON/OFF
TCM_HAZ PID OFF ON (G) OFF OFF ON/OFF
TOT PID 54 (129.2) 51 (123.8) 42 (107.6) 49 (120.2) DEG C (DEG F)
OTHER - TRANSAXLE CONNECTOR

Other PCM Pin / PID only Measured / PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
B+ A12 12.29 13-14 13-14 13-14 VOLTS
VBAT PID 12.38 13-14 13-14 13-14 VOLTS
TBCM OUTPUTS - TRANSAXLE CONNECTOR

TBCM Outputs PID only PID Values PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
BSOC PID 0 53.9 52.5 49.9 %
