Main Control Cover: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	MERCON® LV
Ultra Silicone Sealant TA-29	-

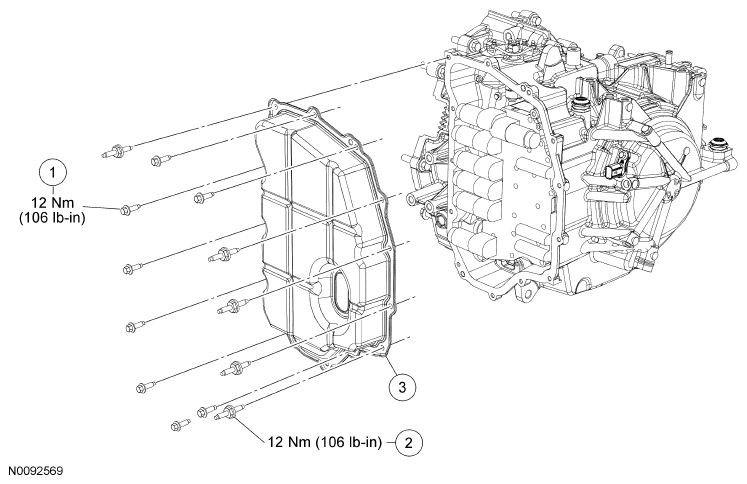

Fig 1: Main Control Cover, Bolts And Stud Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500214	Bolt - main control cover (8 required)
2	W714629	Stud bolt - main control cover (5 required)
3	7G004	Cover - main control

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Remove the retainers and the LH splash shield.

Fig 2: Locating Retainers And Splash Shields
Courtesy of FORD MOTOR CO.
Remove the transmission fluid drain plug and allow the transmission fluid to drain.

Fig 3: Locating Transmission Fluid Drain Plug
Courtesy of FORD MOTOR CO.
Install the transmission fluid drain plug.
- Tighten to 12 Nm (106 lb-in).

  Fig 4: Locating Transmission Fluid Drain Plug
  Courtesy of FORD MOTOR CO.
Remove the 2 nuts, pull the transmission fluid cooler tube bracket and tubes away from the transaxle and position it.

Fig 5: Locating Transmission Fluid Cooler Tube Bracket And Nuts
Courtesy of FORD MOTOR CO.
Disconnect the transaxle vehicle harness electrical connector.

Fig 6: Locating Transaxle Vehicle Harness Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the transaxle electrical wiring harness retainers from the transmission fluid pan stud bolts.

Fig 7: Locating Transaxle Electrical Wiring Harness Retainers
Courtesy of FORD MOTOR CO.

NOTE: Note the location of the stud bolts for assembly.

Fig 8: Locating Bolts, Stud Bolts And Main Control Cover

Courtesy of FORD MOTOR CO.
