Removal and Installation

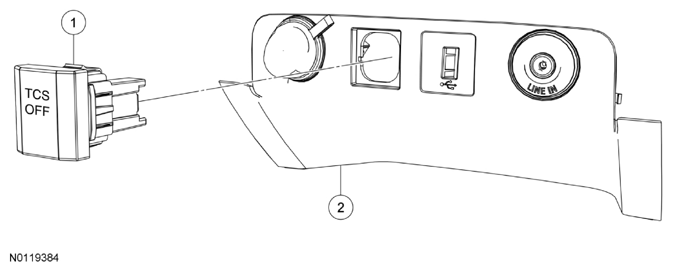

Fig 1: Identifying Stability/Traction Control Switch And Center Lower Instrument Panel Finish Panel
G07938126Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2C335 Stability/Traction control switch
2 04608 Center lower instrument panel finish panel
  1. Remove the center lower instrument panel finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
  2. Depress the 2 tabs and remove the stability/traction control switch.

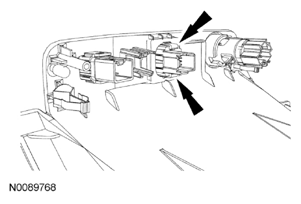

    Fig 2: Locating Stability/Traction Control Switch Tabs
    G07938127Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
