Removal and Installation

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.

NOTE: The electrical connector is located in the engine compartment.

Disconnect the electrical connector.

NOTE: Care must be taken during the removal of the grommet to prevent damage. If the grommet is damaged, a new sensor may need to be installed, even though the sensor is functional in all other aspects.

Remove the grommet from the body.
- When removing the body grommet, rotate the grommet into a position which allows the use of a small screwdriver to release the tabs on the underside of the body grommet. These 2 tabs are located at right angles to the sensor wire.

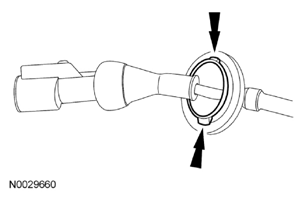

  Fig 1: Locating Tabs On Underside Of Body Grommet
  Courtesy of FORD MOTOR CO.
Remove the front wheel speed sensor harness from the retainer.
Remove the front wheel speed sensor harness-to-body bolt.
- To install, tighten to 9 Nm (80 lb-in).
Remove the front wheel speed sensor harness-to-strut bracket bolt.
- To install, tighten to 15 Nm (133 lb-in).
Remove the front wheel speed sensor bolt from the wheel knuckle.
- To install, tighten to 9 Nm (80 lb-in).

NOTE: Clean off any foreign material that may have collected around the sensor before removal.

Remove the front wheel speed sensor.

NOTE: Thoroughly clean the mounting surface.

To install, reverse the removal procedure.
