Starter Motor - 3.0L: Notes

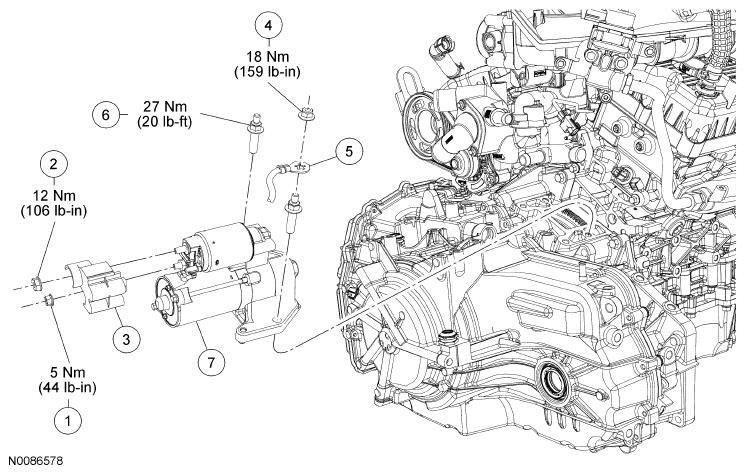

Fig 1: Starter Motor Removal And Installation With Torque Specifications
G06096702Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W704141 Starter motor solenoid wire nut
2 W706414 Starter motor solenoid battery cable nut
3 14488 Starter motor solenoid wire terminal cover
4 - Ground wire nut
5 14463 Ground wire (part of 14A280)
6 W703246 Starter motor stud bolts (2 required)
7 11000 Starter motor
