Starter Motor - 2.5L: Notes

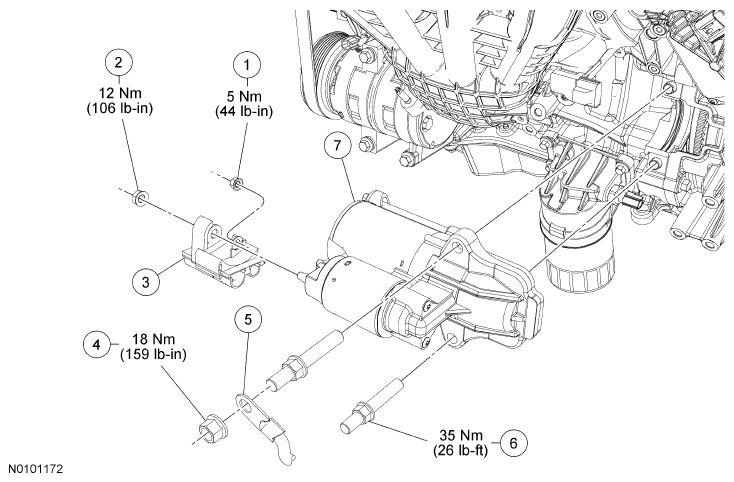

Fig 1: Starter Motor Removal And Installation With Torque Specifications
G06096700Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W704141 Starter motor solenoid wire nut
2 W766414 Starter motor solenoid battery cable nut
3 14A280 Starter motor solenoid terminal cover
4 N802001 Ground wire nut
5 14452 Ground wire (part of 14A280)
6 N801472 Starter motor stud bolt (2 required)
7 11000 Starter motor
