Steering Column Shroud: Notes

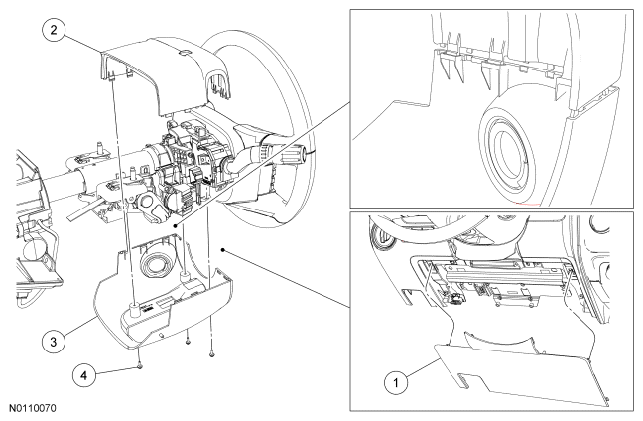

Fig 1: Identifying Steering Column Shroud Components
G06393341Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3524 Steering column opening trim panel
2 3530 Upper steering column shroud
3 3530 Lower steering column shroud
4 W707658 Lower steering column shroud screw (3 required)
