Cover Seal: Installation

  1. Using the Halfshaft Oil Seal Installer, Rear Axle Oil Seal Installer and Handle, install the cover seal.
    • The seal is correctly installed if it is flush with the PTU case cover.

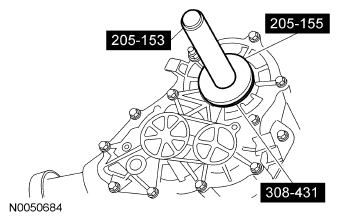

      Fig 1: Installing Cover Seal
      G06098381Courtesy of FORD MOTOR CO.
  2. Using the Handle and PTO Driven Gear Oil Seal Installer, install the deflector.

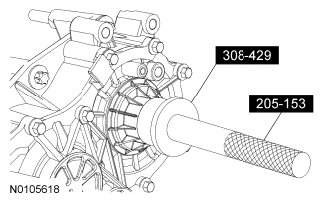

    Fig 2: Installing Deflector
    G06394110Courtesy of FORD MOTOR CO.
  3. Install the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS article.
