Output Flange: Removal

NOTE: This procedure applies to vehicles equipped with automatic transaxles.

Remove the driveshaft. For additional information, refer to DRIVESHAFT article.

NOTE: Rotational torque of the Power Transfer Unit (PTU) rear output shaft flange must be measured and recorded using a Nm (lb-in) torque wrench for correct pinion bearing preload when reassembled.

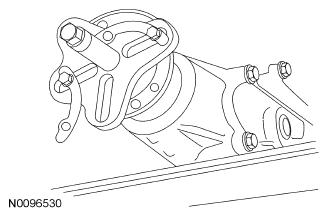

Fig 1: Removing Pinion Nut

Courtesy of FORD MOTOR CO.

Using the Drive Pinion Flange Holding Fixture to hold the flange, remove and discard the pinion nut.

NOTE: Index-mark the Power Transfer Unit (PTU) rear output shaft flange relative to the pinion spline.

Fig 2: Removing PTU Rear Output Shaft Flange

Courtesy of FORD MOTOR CO.

Using a suitable tool such as Snap-on® CJ2001, remove the PTU rear output shaft flange.
