Output Shaft Seal: Notes

SPECIAL TOOLS CHART

G07942025
 Installer, PTO Drive Gear Outer Oil Seal
308-430 or equivalent

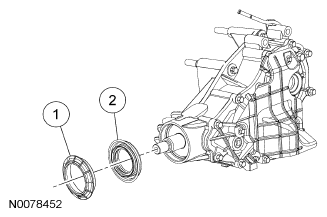

Fig 1: Identifying Output Shaft Seal And Deflector
G06098383Courtesy of FORD MOTOR CO.
Item Part Number Description
1 4859 Deflector
2 7H426 Output shaft seal
