Input Shaft Seal
SPECIAL TOOLS CHART
| Handle 205-153 (T80T-4000-W) |
|
| Installer, PTU Linkshaft Seal Dust Shield 205-882 |

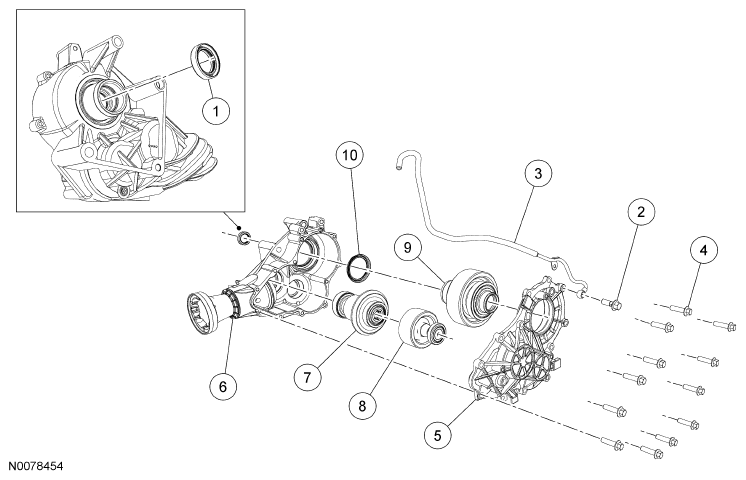

| Item | Part Number | Description |
|---|---|---|
| 1 | 7H429 | Intermediate shaft seal |
| 2 | W707702 | Vent tube bolt |
| 3 | 7034 | Vent tube |
| 4 | W500425 | Power Transfer Unit (PTU) cover bolt (12 required) |
| 5 | - | PTU cover (part of 7251) |
| 6 | 7251 | PTU |
| 7 | - | Helical driven gear (part of 7251) |
| 8 | - | Helical idler gear (part of 7251) |
| 9 | - | Helical drive gear (part of 7251) |
| 10 | 7H469 | Input shaft seal |
- Remove the Power Transfer Unit (PTU). For additional information, refer to POWER TRANSFER UNIT (PTU) .
- Remove the bolt and the vent tube.
- Remove the 12 bolts and the PTU cover.
- Remove the helical driven gear, idler gear and drive gear.
- Using the PTU Linkshaft Seal Dust Shield Installer and Handle, remove the input shaft seal.
- Clean the PTU sealing surface.
