Wheel Speed Sensor Ring - Front: Installation

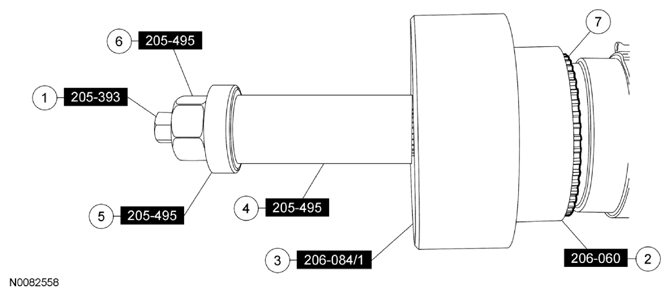

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Screw (part of 205-393, Drive Pinion Flange Installer) |
| 2 | 206-060 | Wheel Speed Sensor Ring Installer |
| 3 | 206-084/1 | Wheel Speed Sensor Ring Installer |
| 4 | - | Sleeve (part of 205-495, Transmission Output Shaft Flange Installer) |
| 5 | - | Bearing (part of 205-495, Transmission Output Shaft Flange Installer) |
| 6 | - | Nut (part of 205-495, Transmission Output Shaft Flange Installer) |
| 7 | 2C182 | Wheel speed sensor ring |
- Install the new ABS wheel speed sensor ring and the tools on the halfshaft as shown in the previous illustration.
- Install the ABS wheel speed sensor ring to the dimension as shown in illustration.
