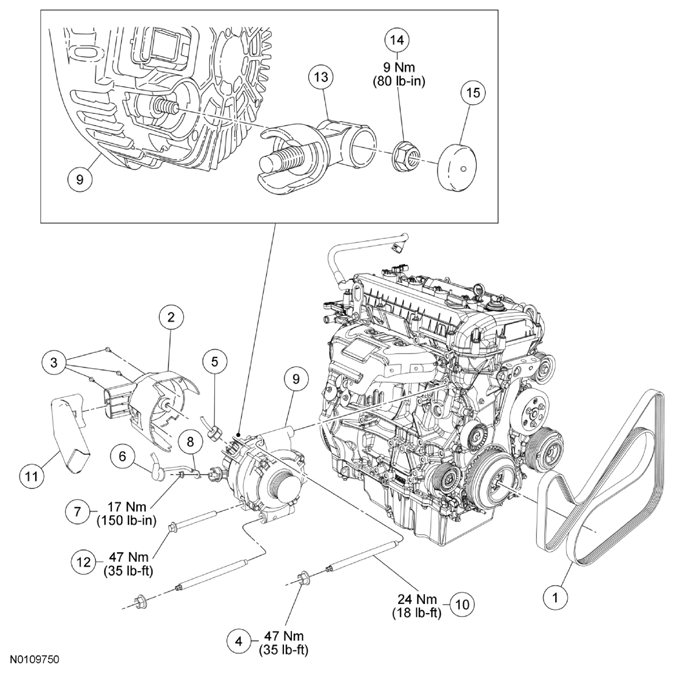

| 1 |
8620 |
Front end accessory drive belt |
| 2 |
10C392 |
Generator upper air duct |
| 3 |
W500004 |
Generator upper air duct screws (3 required) |
| 4 |
W520414 |
Generator stud nut (2 required) |
| 5 |
- |
Generator electrical connector (part of 14300) |
| 6 |
- |
B+ protective cover (part of 14300) |
| 7 |
W711953 |
Generator B+ terminal nut |
| 8 |
- |
Generator B+ cable (part of 14300) |
| 9 |
10300 |
Generator |
| 10 |
W709489 |
Generator stud (2 required) |
| 11 |
10C392 |
Generator lower air duct |
| 12 |
W500130 |
Generator bolt |
| 13 |
10329 |
Radial arm adapter |
| 14 |
- |
Radial arm adapter nut (part of 10329) |
| 15 |
- |
Radial arm adapter cap (part of 10329) |
