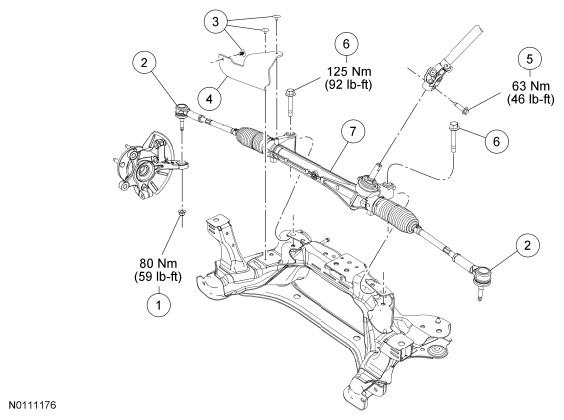

Steering Gear - Exploded View: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | W705606 | Outer tie-rod end nut (2 required) |
| 2 | 3A130 | Outer tie-rod ends |
| 3 | - | Pin-type retainers |
| 4 | 3C567 | Steering gear shield (3.0L [4V] engines and Hybrid vehicles only) |
| 5 | W713065 | Steering column coupling-to-steering gear bolt |
| 6 | W712338 | Steering gear bolts (2 required) |
| 7 | 3A500 | Steering gear |
