Heating Ventilation Air Conditioning (HVAC) Module




Heating Ventilation Air Conditioning (HVAC) Module









Removal and Installation

NOTE: Navigator shown, Expedition similar.

1. Remove the center instrument panel finish panel.

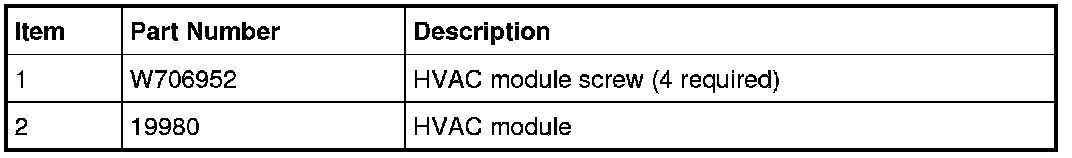

2. Remove the 4 HVAC module screws.

3. Remove the HVAC module.

4. To install, reverse the removal procedure.
