Oil Pressure Sensor: Service and Repair

Engine Oil Pressure (EOP) Switch









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

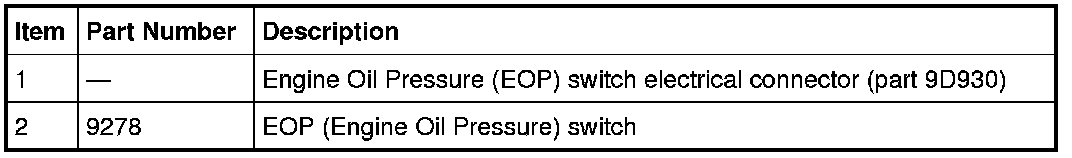

2. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.

3. Remove the EOP (Engine Oil Pressure) switch.
- To install, tighten to 18 Nm (159 lb-in).


4. To install, reverse the removal procedure.
