Home >> Ford >> 2012 >> Expedition 4WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Switch >> C2390 Remote Start Connector
April 5, 2026: LEMON Manuals is launched! Read the announcement.

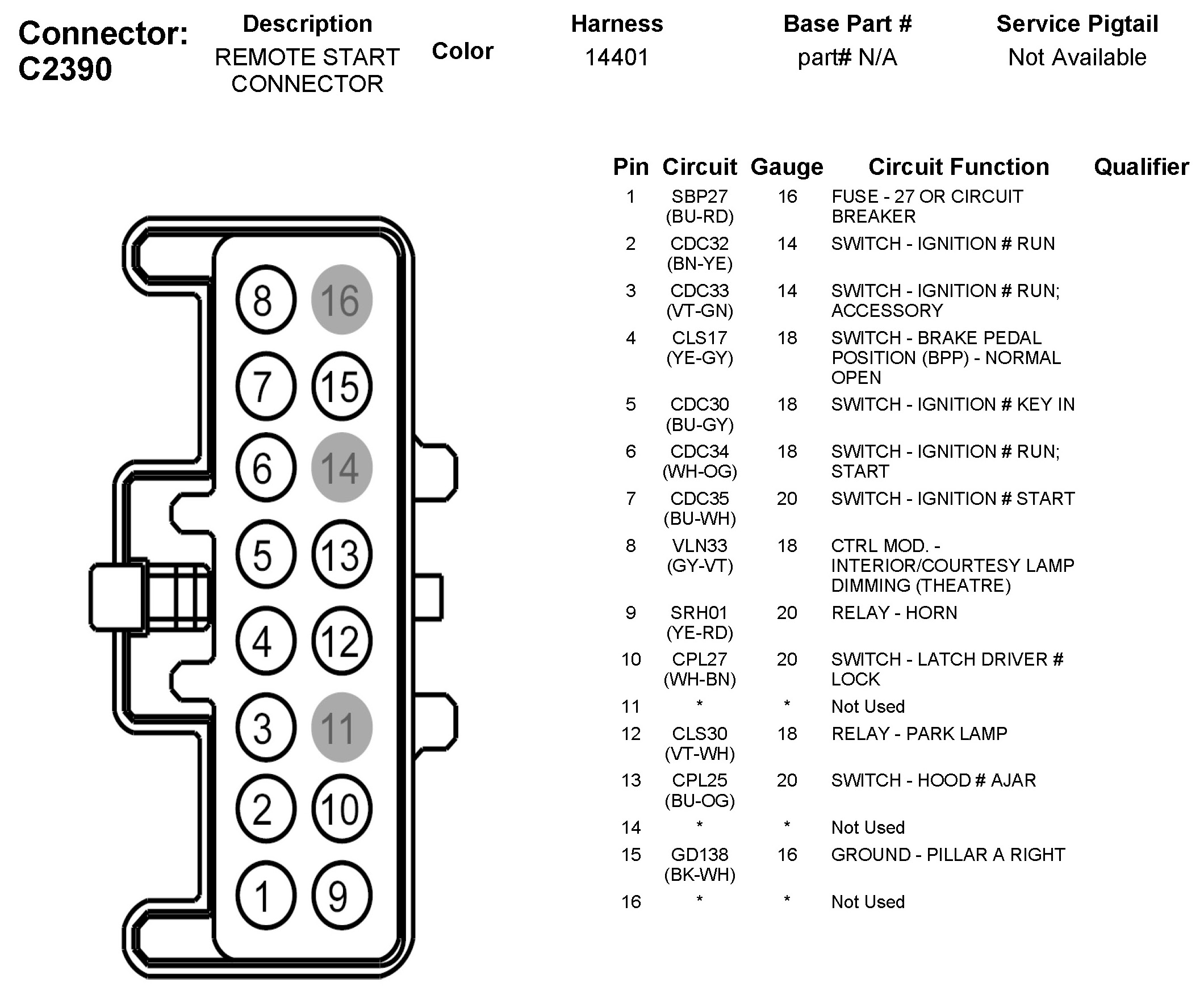

C2390 Remote Start Connector
