Drive/Propeller Shaft

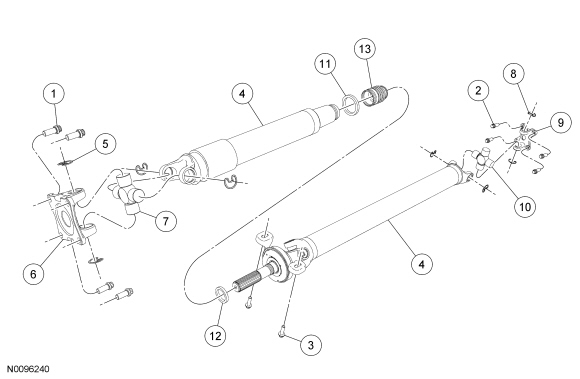

Driveshaft - Exploded View

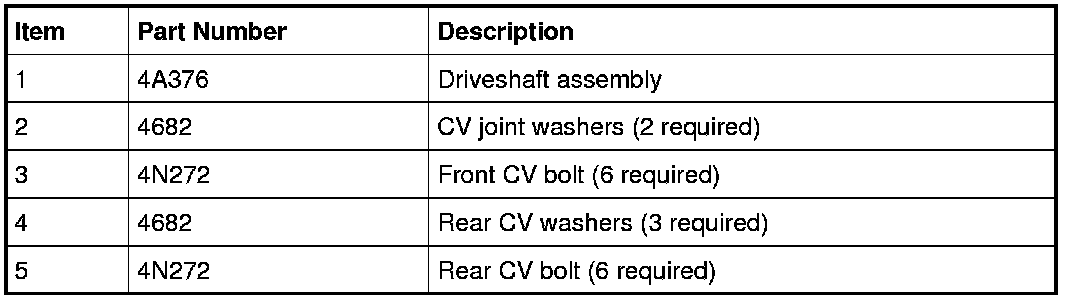

Front, Expedition and Navigator

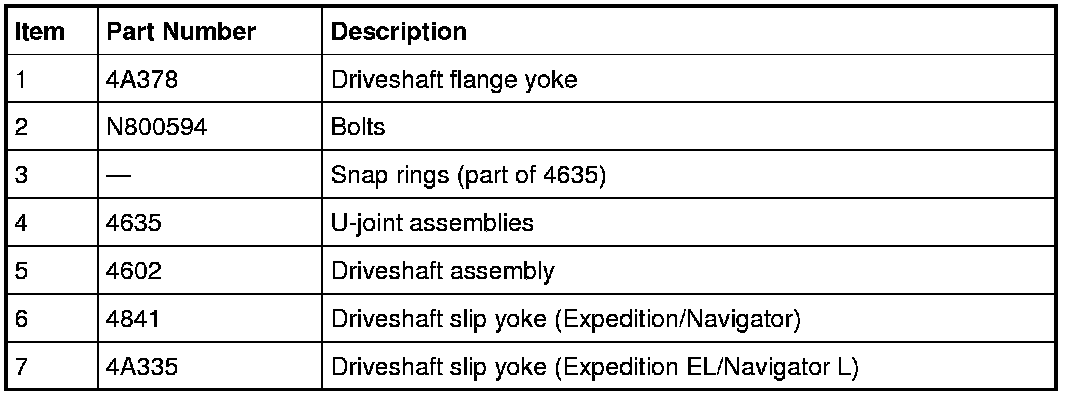

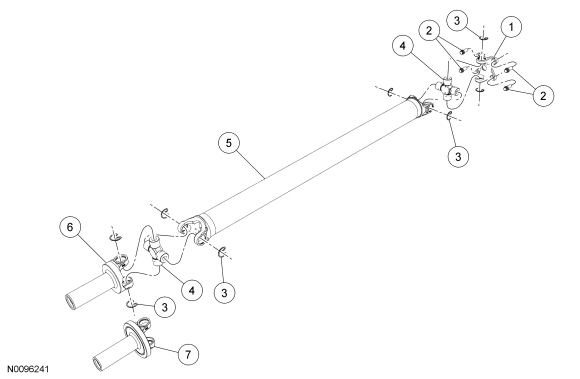

Rear - Navigator Four-Wheel Drive (4WD), Expedition 4WD (Four-Wheel Drive) and Rear Wheel Drive (RWD)

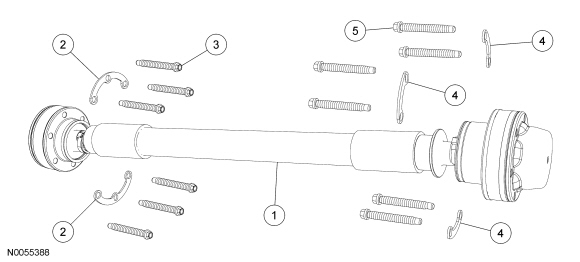

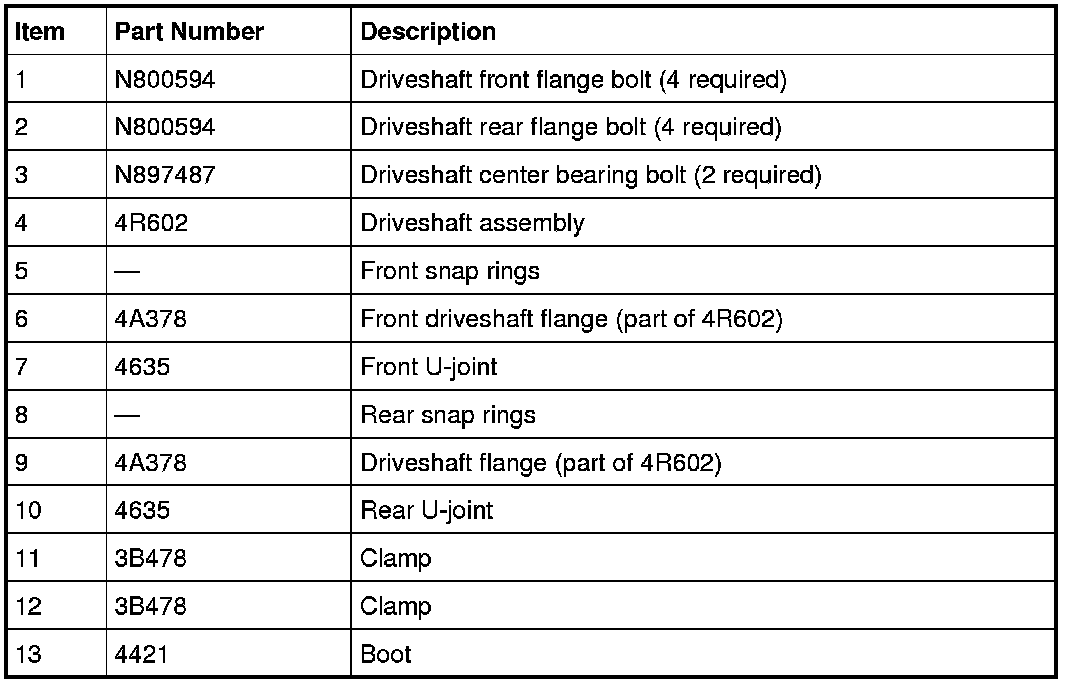

Rear, Navigator Rear Wheel Drive (RWD)
