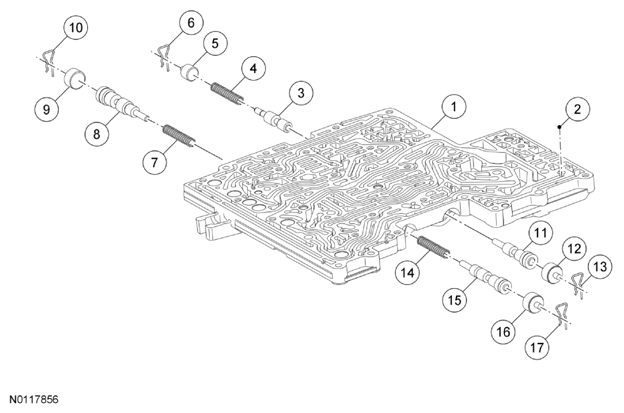

| 1 |
7A092 |
Main control valve assembly (ditch plate) (upper half) |
| 2 |
7E195 |
Main control valve check ball (8 required) |
| 3 |
- |
Transmission clutch D2 latch valve |
| 4 |
- |
Transmission clutch valve spring |
| 5 |
- |
Transmission clutch valve spring plug |
| 6 |
7G007 |
Transmission clutch valve spring plug retaining clip |
| 7 |
- |
Transmission clutch valve spring |
| 8 |
- |
Transmission clutch B regulator valve |
| 9 |
- |
Transmission clutch valve spring plug |
| 10 |
7G007 |
Transmission clutch valve spring plug retaining clip |
| 11 |
- |
Transmission clutch valve |
| 12 |
- |
Transmission clutch valve spring plug |
| 13 |
7G007 |
Transmission clutch valve spring plug retaining clip |
| 14 |
- |
Transmission clutch valve spring |
| 15 |
- |
Transmission clutch valve |
| 16 |
- |
Transmission clutch valve spring plug |
| 17 |
7G007 |
Transmission clutch valve spring plug retaining clip |
