Hydraulic Control Unit (HCU): Notes
SPECIAL TOOLS CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

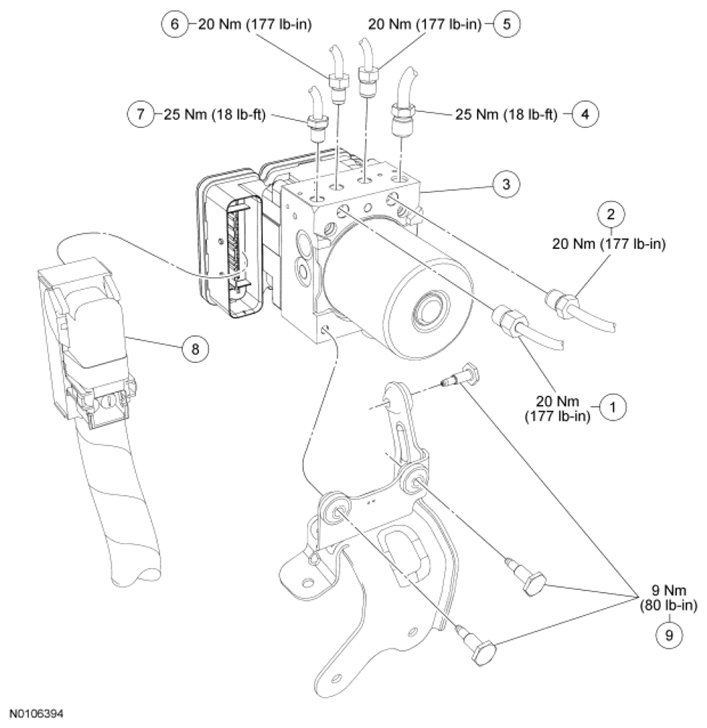

| Item | Part Number | Description |
|---|---|---|
| 1 | 2B523 | Rear combination valve brake tube |
| 2 | 2264 | LH front brake tube |
| 3 | 2C405 | Hydraulic Control Unit (HCU) |
| 4 | 2A040 | Master cylinder primary brake tube |
| 5 | 2263 | RH front brake tube |
| 6 | 2B523 | Rear combination valve brake tube |
| 7 | 2B253 | Master cylinder secondary brake tube |
| 8 | - | ABS module electrical connector (part of 14A464) |
| 9 | 2C346 | HCU-to-bracket bolt (3 required) |
