Steering Wheel Rotation Sensor: Notes

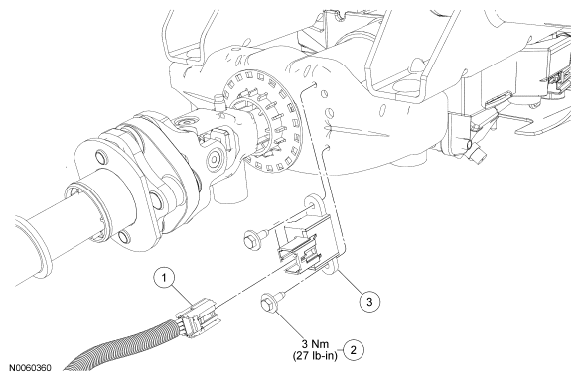

Fig 1: Steering Wheel Rotation Sensor, Bolt And Electrical Connector With Torque Specification
G06125942Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Steering wheel rotation sensor electrical connector (part of 14489)
2 N802141 Steering wheel rotation sensor bolt (2 required)
3 3F818 Steering wheel rotation sensor
