Customer Satisfaction Program 19B05 - Sudden Transmission Downshift - Powertrain Control Module Reprogramming (19B05)

Publication date: 2019-03-15
Reference number: 19B05

CUSTOMER SATISFACTION PROGRAM 19B05 - SUDDEN TRANSMISSION DOWNSHIFT - POWERTRAIN CONTROL MODULE REPROGRAMMING

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 19B05, Date of Issue: March 15, 2019

FORD:

2012-2013 Expedition/Navigator

CUSTOMER SATISFACTION PROGRAM 19B05

SUBJECT

Customer Satisfaction Program 19B05

Certain 2012 - 2013 Model Year Expedition/Navigator Vehicles Equipped With A 6R80 Transmission

Sudden Transmission Downshift - Powertrain Control Module Reprogramming

PROGRAM TERMS

This program will be in effect through March 31, 2020. There is no mileage limit for this program.

Coverage is automatically transferred to subsequent owners.

VEHICLES COVERED BY THIS PROGRAM

COVERED VEHICLES

Vehicle	Model Year	Assembly Plant	Build Dates
Expedition/Navigator	2012 - 2013	Kentucky Truck	August 19, 2011 through August 15, 2013

Affected vehicles are identified in OASIS and FSA VIN Lists.

REASON FOR PROVIDING EXTENDED WARRANTY COVERAGE

In some of the affected vehicles, an intermittent Output Shaft Speed Sensor (OSS) failure may result in an unintended downshift into first gear. Depending on vehicle speed at the time of the downshift, an abrupt wheel speed reduction may occur.

SERVICE ACTION

Dealers are to reprogram the Powertrain Control Module (PCM) using Integrated Diagnostic Software (IDS) release 112.04 or higher. Some vehicles may already have the latest software. This service must be performed at no charge to the vehicle owner.

OWNER NOTIFICATION MAILING SCHEDULE

Owner Letters are expected to be mailed the week of April 8, 2019. Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter.

ATTACHMENTS

Attachment I: Administrative Information
Attachment II: Labor Allowances and Parts Ordering Information
Attachment III: Technical Information
Owner Notification Letters

QUESTIONS & ASSISTANCE

For questions and assistance, contact the Special Service Support Center (SSSC) via the SSSC Web Contact Site. The SSSC Web Contact Site can be accessed through the Professional Technician Society (PTS) website using the SSSC link listed at the bottom of the OASIS VIN report screen or listed under the SSSC tab.

Sincerely,

David J. Johnson

ATTACHMENT I

Page 1 of 2

Customer Satisfaction Program 19B05

Certain 2012 - 2013 Model Year Expedition/Navigator Vehicles Equipped With A 6R80 Transmission

Sudden Transmission Downshift - Powertrain Control Module Reprogramming

OASIS ACTIVATION

OASIS will be activated on March 15, 2019.

FSA VIN LISTS ACTIVATION

FSA VIN Lists will be available through https://web.fsavinlists.dealerconnection.com on March 15, 2019. Owner names and addresses will be available by April 16, 2019.

NOTE: Your FSA VIN Lists may contain owner names and addresses obtained from motor vehicle registration records. The use of such motor vehicle registration data for any purpose other than in connection with this program is a violation of law in several states, provinces, and countries. Accordingly, you must limit the use of this listing to the follow-up necessary to complete this service action.

SOLD VEHICLES

Owners of affected vehicles will be directed to dealers for repairs.
Immediately contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter (when available) and schedule a service date.
Correct other affected vehicles identified in OASIS which are brought to your dealership.
Dealers are to prioritize repairs of customer vehicles over repairs of new and used vehicle inventory.

STOCK VEHICLES

Correct all affected units in your new vehicle inventory before delivery.
Use OASIS to identify any affected vehicles in your used vehicle inventory.

TITLE BRANDED/SALVAGED VEHICLES

Affected title branded and salvaged vehicles are eligible for this service action.

OWNER REFUNDS

Refunds are not approved for this program.

RENTAL VEHICLES

Rental vehicles are not approved for this program.

ADDITIONAL REPAIR (LABOR TIME AND/OR PARTS)

Additional repairs identified as necessary to complete the FSA should be managed as follows:

For related damage and access time requirements, refer to the Warranty and Policy Manual - Section 6 - Ford & Lincoln Program Policies/General Information & Special Circumstances for FSA's/Related Damage.
For vehicles within new vehicle bumper-to-bumper warranty coverage, no SSSC approval is required, although related damage must be on a separate repair line with the Related Damage radio button checked.
- Ford vehicles - 3 years or 36,000 miles
- Lincoln vehicles - 4 years or 50,000 miles
For vehicles outside new vehicle bumper-to-bumper warranty coverage, submit an Approval Request to the SSSC Web Contact Site prior to completing the repair.

CLAIMS PREPARATION AND SUBMISSION

Claim Entry: Enter claims using Dealer Management System (DMS) or One Warranty Solution (OWS) online.
- When entering claims, select claim type 31: Field Service Action. The FSA number (19B05) is the sub code.
- For additional claims preparation and submission information, refer to the Recall and Customer Satisfaction Program (CSP) Repairs in the OWS User Guide.
Related Damage/Additional labor and/or parts: Must be claimed as Related Damage on a separate repair line from the FSA with same claim type and sub code as described in Claim Entry above.
IMPORTANT: Click the Related Damage Indicator radio button.

ATTACHMENT II

Page 1 of 1

Customer Satisfaction Program 19B05

Certain 2012 - 2013 Model Year Expedition/Navigator Vehicles Equipped With A 6R80 Transmission

Sudden Transmission Downshift - Powertrain Control Module Reprogramming

LABOR ALLOWANCES

Description	Labor Operation	Labor Time
Reprogram the Powertrain Control Module (PCM) using IDS release 112.04 or higher. Some vehicles may already have the latest software.	19B05B	0.3 Hours

NOTE: Advise the customer that this vehicle is equipped with an adaptive transmission shift strategy, which allows the vehicle's computer to learn the transmission's unique parameters and improve shift quality. When the adaptive strategy is reset, the computer will begin a re-learning process. This re-learning process may result in firmer than normal upshifts and downshifts for several days.

PARTS REQUIREMENTS/ORDERING INFORMATION

Parts are not required to complete this repair.

ATTACHMENT III

PAGE 1 OF 2

CUSTOMER SATISFACTION PROGRAM 19B05

CERTAIN 2012 - 2013 MODEL YEAR EXPEDITION/NAVIGATOR VEHICLES EQUIPPED WITH A 6R80 TRANSMISSION SUDDEN TRANSMISSION DOWNSHIFT - POWERTRAIN CONTROL MODULE REPROGRAMMING

OVERVIEW

SERVICE PROCEDURE

Module Reprogramming

NOTE: Reprogram appropriate vehicle modules before performing diagnostics and clear all DTC's after programming. For DTC's generated after reprogramming, follow normal diagnostic service procedures.

Connect a battery charger to the 12V battery.
NOTE: Make sure the Integrated Diagnostic Software (IDS) computer does not enter sleep mode during programming.
Reprogram the Transmission/Powertrain control module using IDS release 112.04 or higher.
1. Some vehicles may already have the latest software, as software was released in phases.
2. Make sure you are connected to the Internet prior to reprogramming.
NOTE: Advise the customer that this vehicle is equipped with an adaptive transmission shift strategy

which allows the vehicle's computer to learn the transmission's unique parameters and improve shift quality. When the adaptive strategy is reset, the computer will begin a re-learning process. This re-learning process may result in firmer than normal upshifts and downshifts for several days.

NOTE: Calibration files may also be obtained at www.motorcraftservice.com.

NOTE: Follow the IDS on-screen instructions to complete the reprogramming procedure.
Disconnect the battery charger from the 12V battery once the reprogramming has completed.

Important Information for Module Programming

NOTE: When programming or reprogramming a module, use the following basic checks to ensure programming completes without errors.

Make sure the 12V battery is fully charged before carrying out the programming steps and connect IDS/scan tool to a power source.
Inspect Vehicle Communication Module (VCM) and cables for any damage. Make sure scan tool connections are not interrupted during programming.
A hardwired connection is strongly recommended.
Turn off all unnecessary accessories (radio, heated/cooled seats, headlamps, interior lamps, HVAC system, etc.) and close doors.
Disconnect/depower any aftermarket accessories (remote start, alarm, power inverter, CB radio, etc.).
Follow all scan tool on-screen instructions carefully.
Disable IDS/scan tool sleep mode, screensaver, hibernation modes.
Create all sessions key on engine off (KOEO). Starting the vehicle before creating a session will cause errors within the programming inhale process.

Recovering a module when programming has resulted in a blank module:

NEVER DELETE THE ORIGINAL SESSION!

Obtain the original IDS that was used when the programming error occurred during module reprogramming (MR) or programmable module installation (PMI).
Disconnect the VCM from the data link connector (DLC) and the IDS.
Reconnect the VCM to IDS and then connect to the DLC. Once reconnected, the VCM icon should appear in the corner of the IDS screen. If it does not, troubleshoot the IDS to VCM connection.
Locate the original vehicle session when programming failed. This should be the last session used in most cases. If not, use the session created on the date that the programming failed.
NOTE: If the original session is not listed in the previous session list, click the Recycle Bin icon at the lower right of the previous session screen. This loads any deleted sessions and allows you to look through them. Double-click the session to restore it.
Once the session is loaded, the failed process should resume automatically.
If programming does not resume automatically, proceed to the Module Programming menu and select the previously attempted process, PMI or MR.
Follow all on-screen prompts/instructions.
The last screen on the IDS may list additional steps required to complete the programming process. Make sure all applicable steps listed on the screen are followed in order.

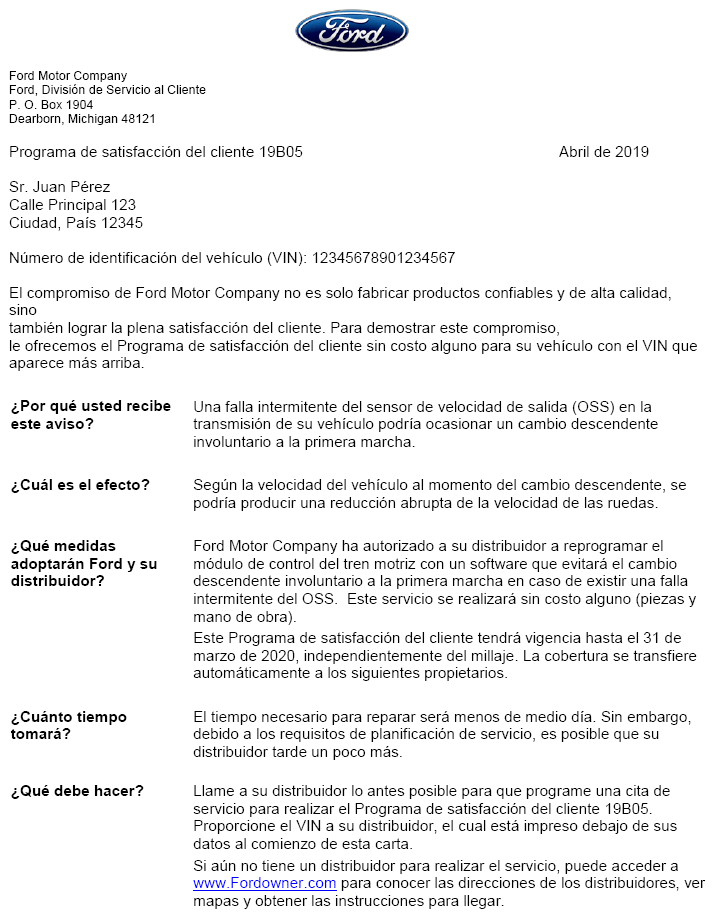

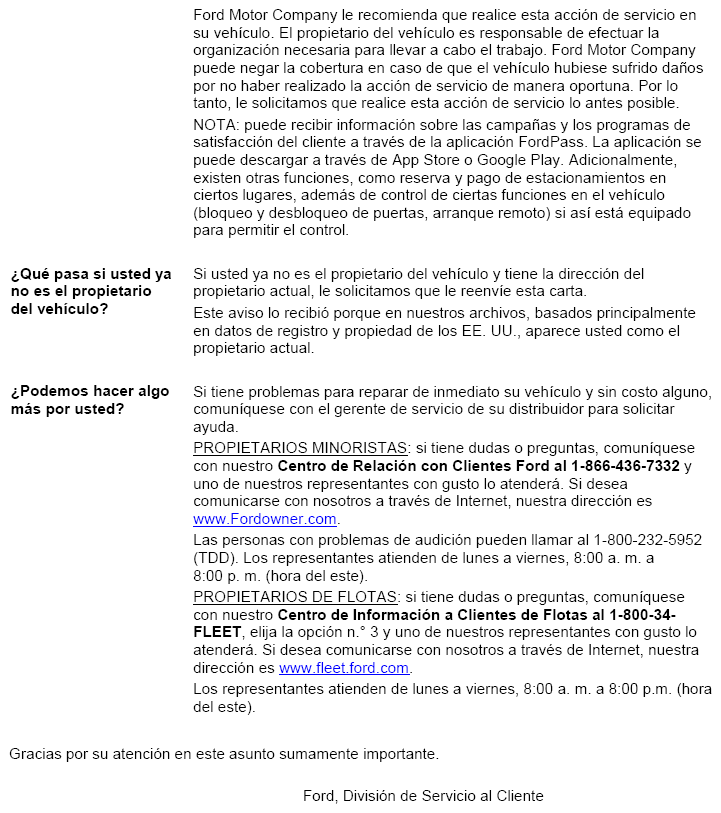

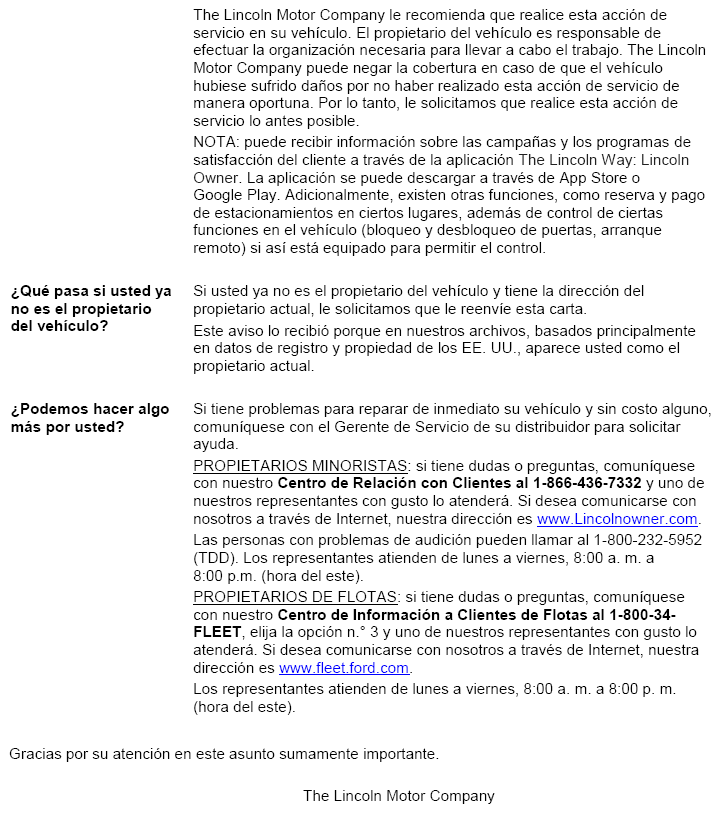

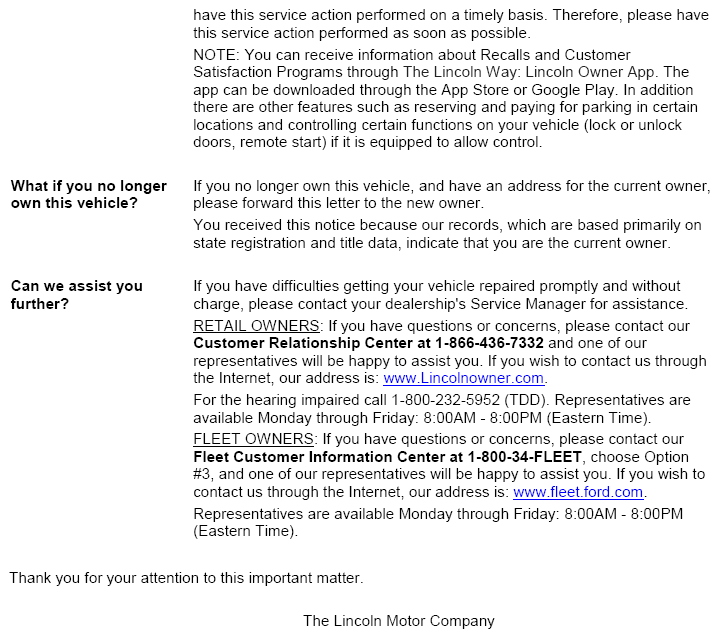

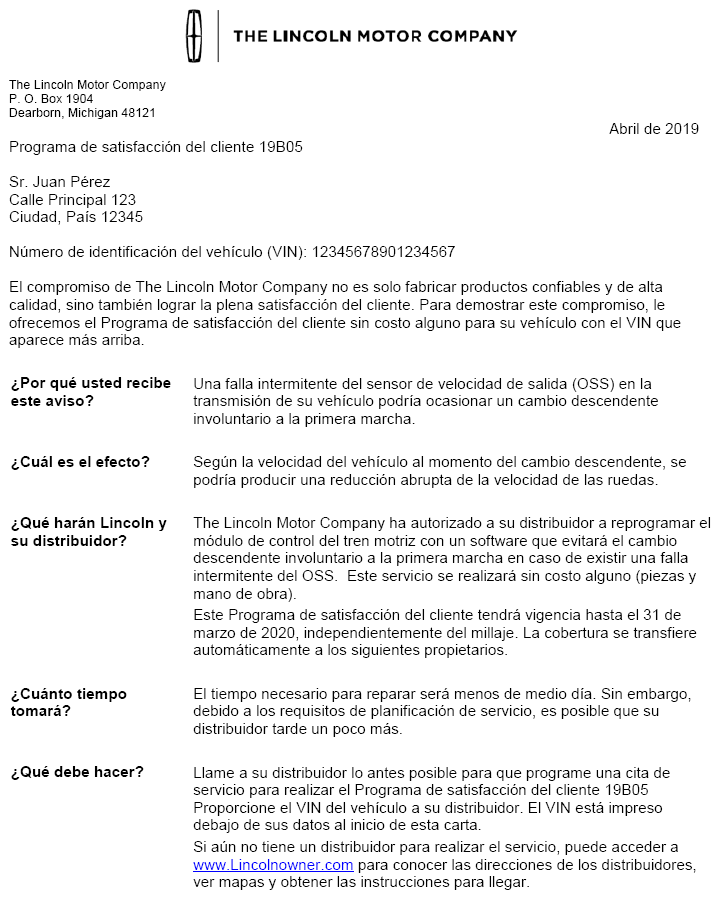

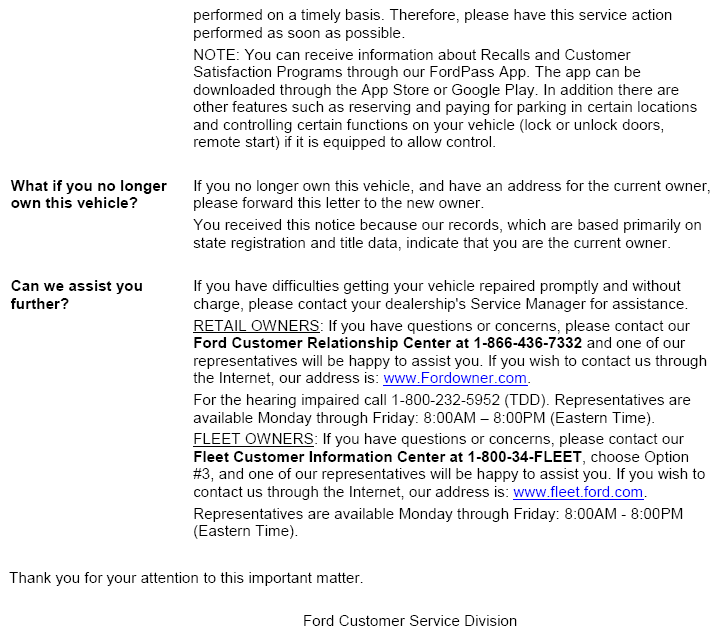

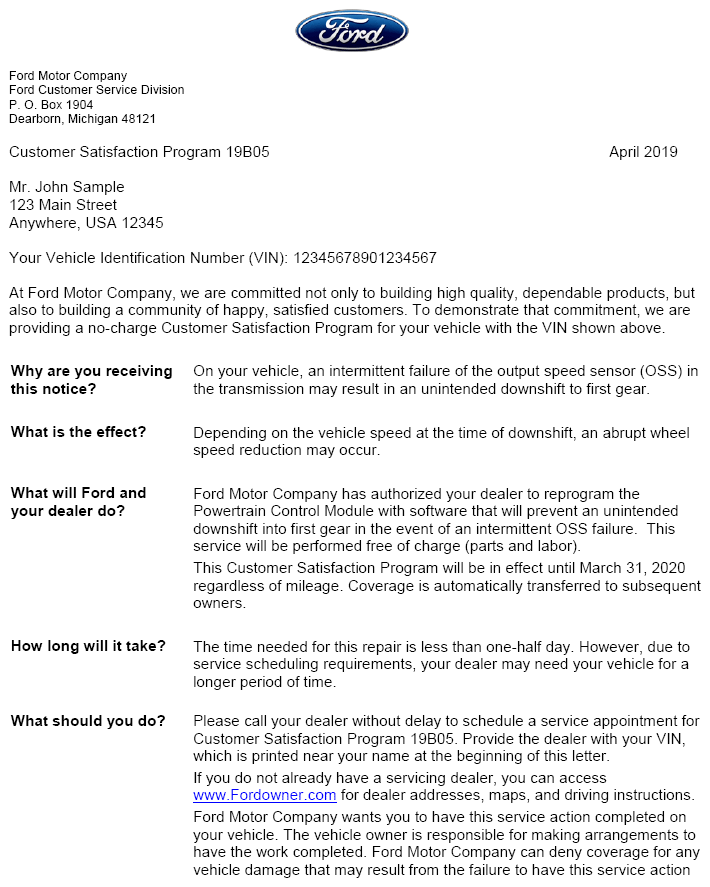

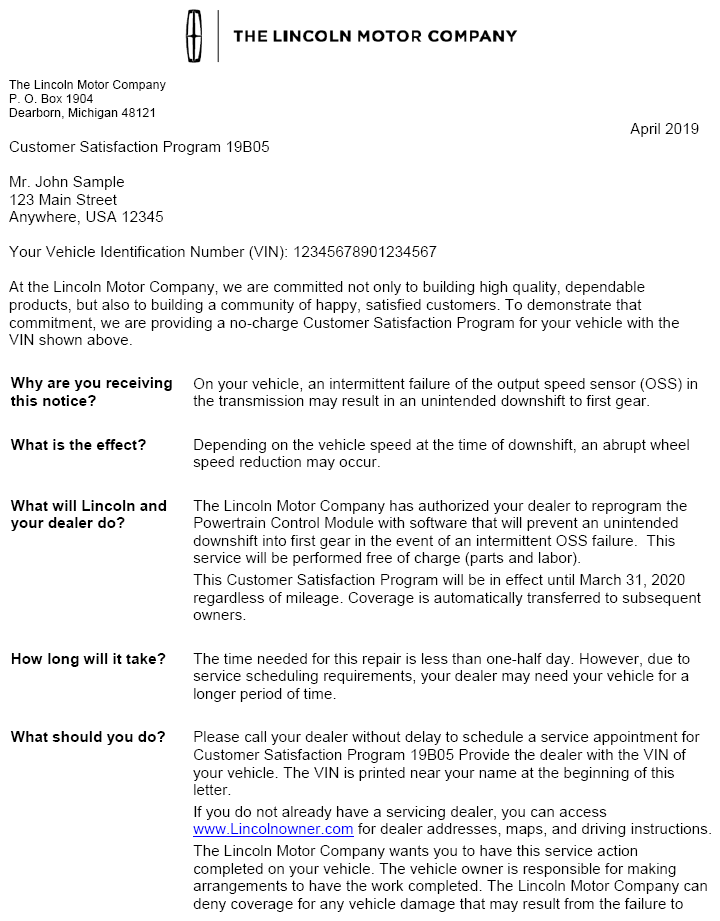

OWNER NOTIFICATION LETTER

OWNER NOTIFICATION LETTER
