Steering Gear Turn Tubes: Notes

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

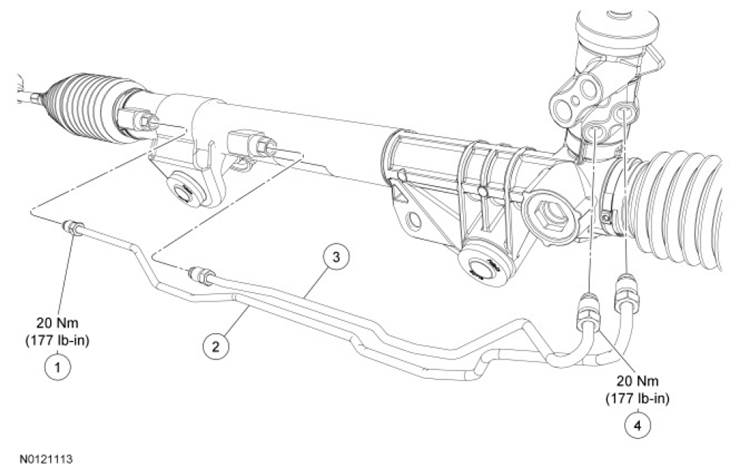

Fig 1: Exploded View Of Steering Gear Turn Tubes With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Steering gear (left) turn tube fitting (2 required) (part of 3A714)
2	3A714	Steering gear (left) turn tube
3	3A717	Steering gear (right) turn tube
4	-	Steering gear (right) turn tube fitting (2 required) (part of 3A717)
